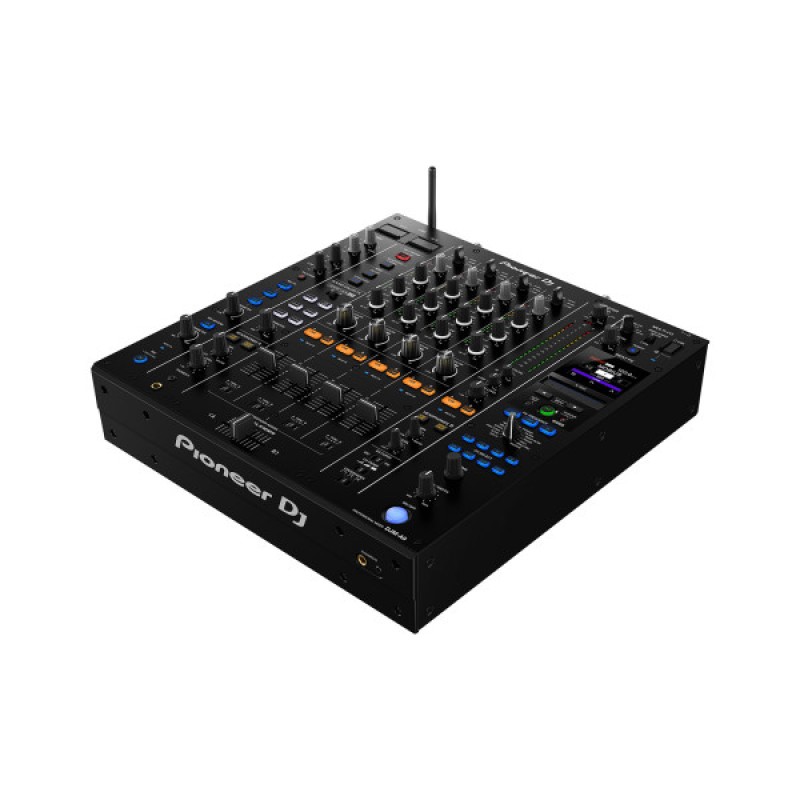

The 4-channel unit raises the bar for club standard mixers – boasting huge upgrades compared to its predecessor, the DJM-900NXS2 – with stunningly clear sound quality, enhanced playability and connectivity, and a host of new features to help you take your performances to the next level.

Product Specifications

General Specifications

Frequency Response:  20 Hz – 40 kHz (LINE)

S/N Ratio:

• 114 dB (USB, Digital IN)
• 88 dB (PHONO)
• 105 dB (LINE)
• 79 dB (MIC 1, MIC 2)

Total Harmonic Distortion: 0.005 % (LINE-MASTER1)

Power Consumption: 46 W

Maximum Dimensions (W × D × H):

• 407.4 × 458.3 × 107.9 mm (with the wireless antenna 140.7 mm)
• 16.4” x 18.4” x 4.25” (with the wireless antenna 5.54”)

Weight:  10.2 kg / 22.5 lb

Compatible Software:  rekordbox, Serato DJ Pro, ShowKontrol, PRO DJ LINK Bridge

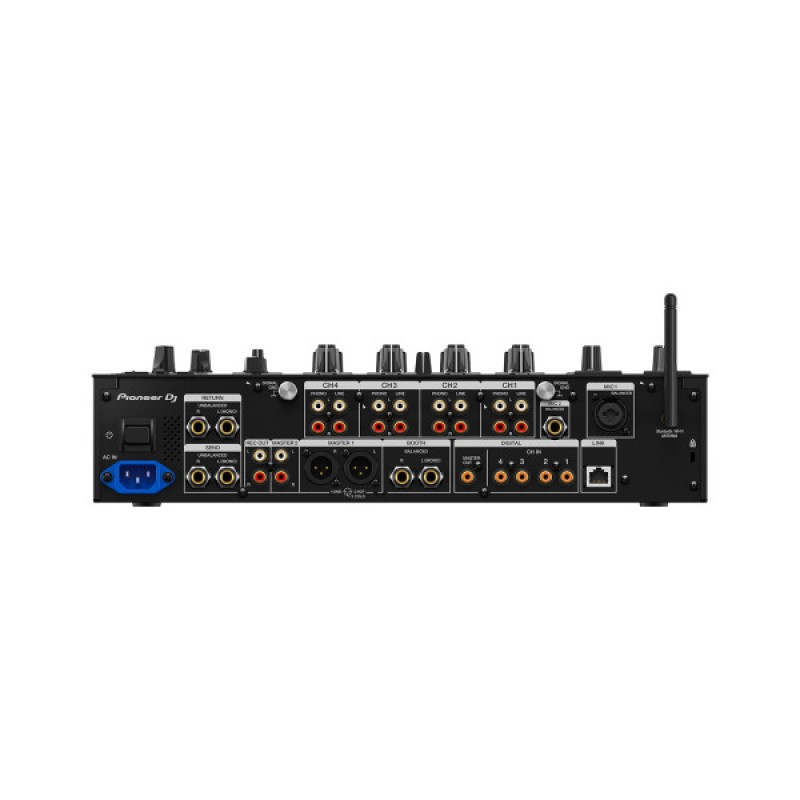

Input/Output Terminals

Inputs:

• DIGITAL x 4 (coaxial)
• LINE x 4 (RCA)
• PHONO x 4 (RCA)
• MIC x 2 (XLR & 1/4” TRS jack x 1, 1/4” TRS jack x 1)

Outputs:

• MASTER x 2 (XLR x 1, RCA x 1)
• BOOTH x 1 (1/4” TRS jack)
• REC x 1 (RCA)
• DIGITAL MASTER x 1 (coaxial)
• PHONES x 4 (1/4” stereo jack x 2, 3.5-mm stereo mini jack x 2)

USB:

• USB Type-A x 1
• USB Type-B / USB Type-C x 2

Others:

• SEND (1/4” TS jack) x 1
• RETURN (1/4” TS jack) x 1
• LAN terminal (100BASE-TX) x 1

Performance Control

Channels:  4

MULTI I/O:  USB (Type A)

Sound Colour FX

• Space
• Dub Echo
• Sweep
• Noise
• Crush
• Filter

Beat FX

• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Flanger
• Phaser
• Filter
• Triplet Filter
• Trans
• Roll
• Triplet Roll
• Mobius

Screen Display

X-PAD

rekordbox Quantize

Mic

Phantom power

Microphone Effects

• Echo
• Pitch
• Megaphone
• Reverb

Push-to-talk function

Mic Connection

• XLR / 1/4-inch Combo Jack
• 1/4-inch TRS Jack

Mic EQ:  2 band

Mic EQ Range:  -12 dB ~ +12 dB

Talkover:  Dedicated button

Talkover Attenuator
