- Powerful 12x 15 W RGBW LED Wash Moving Head
- Four separate controllable sections
- Wide DMX controllable zoom range
- 16-bit pan & tilt for fast and precise movements
- Quick-Lock brackets
The Showtec Phantom 180 Wash is a powerful 180 watt RGBW LED Wash Moving Head within a wide 7° - 50° motorised zoom range, suitable for indoor venues. Its 12 powerful 15 W LEDs are divided into four separate controllable sections. The Phantom 180 Wash is equipped with various programmable built-in colour programs and its 16-bit pan & tilt movements are precise and very quick. Furthermore, it has a 0 - 100 % dimmer and 0 - 20 Hz strobe function on board for creating a vigorous show. The Phantom 180 Wash allows quick rigging on stage due to its Quick-Lock brackets.
Specifications
Source
Light Source Type LED
Light Source Quantity 12
Light Source Power 15 W
LED Colour Type R, G, B, W
Illuminance @ 3 m 14200 lx
Luminous Flux (Total) 3920 lm
Luminous Flux (Red) 631 lm
Luminous Flux (Green) 1251 lm
Luminous Flux (Blue) 427 lm
Luminous Flux (White) 1897 lm
CRI 75
CCT 7200 K
Optical
Beam Angle Minimum (Circular) 7 °
Beam Angle Max. (Circular) 50 °
Zoom Type Motorised
Control and Programming
Control Mode Auto, DMX, Manual, Master Slave, Sound
DMX Channels 14, 29
Protocols DMX
Display OLED
Dim Curve Linear, Square, I-Square, S-Curve
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Movement
Pan 540 °
Tilt 270 °
Pan/Tilt Resolution 16-bit
Continuous Movement No

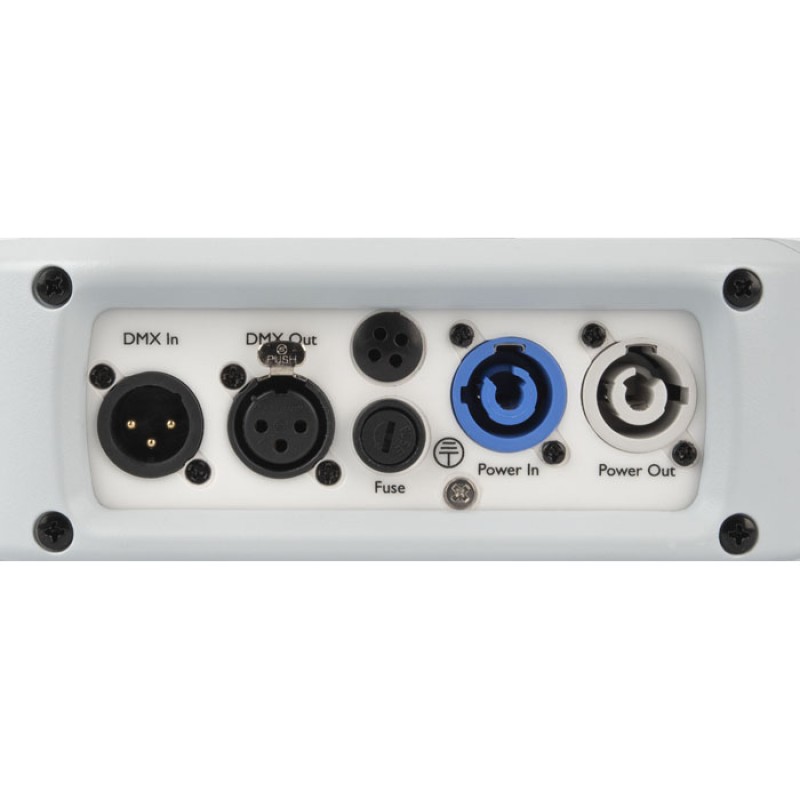

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 220 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Length (mm) 290 mm (11.417″)
Width (mm) 205 mm (8.071″)
Height (mm) 366 mm (14.409″)
Weight 8.5 kg (18.739 lb)
IP Rating IP20 (indoor use only)
Housing Metal, Plastic
Colour White
Product Properties
Cooling Convection/Axial fan
Rigging
Mounting Options Quick-Lock
Safety Attachment Yes
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Maximum Surface Temperature 70 °C (158 °F)
Included Items
Included Cables Power Pro Cable
Included Rigging Quick-Lock Bracket
Showtec Phantom 180 Wash White
- Brand: Showtec
- Product Code: 40032
- Availability: 5-7 Days
-
£771.50
- Ex Tax: £642.92
