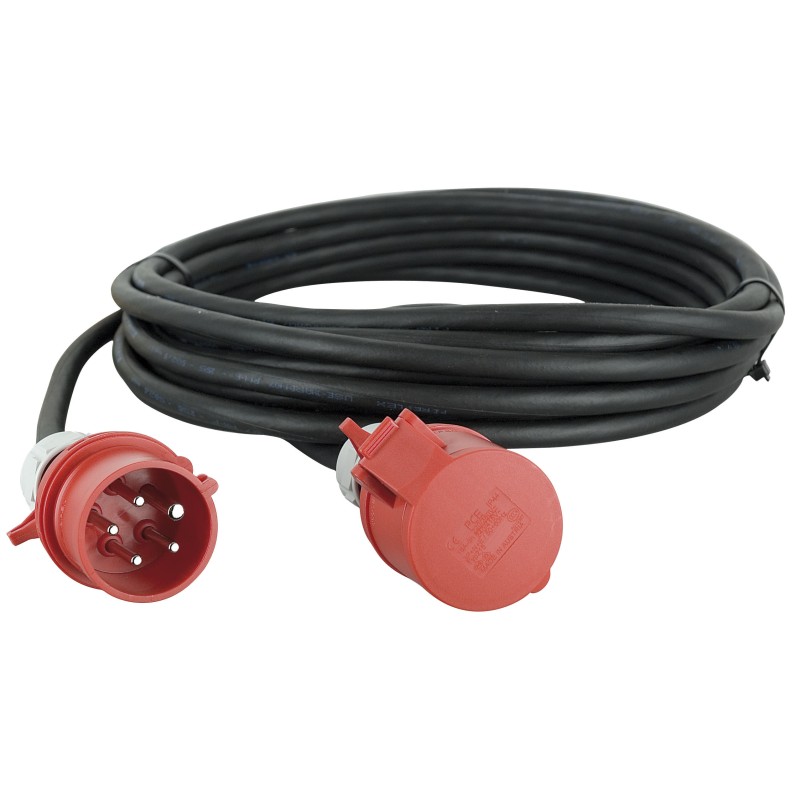

High power extension cords. All extension cords are made of 5x 4 mm² Lineax neopreen cable and are fitted with PCE CEE 3x 32 A connectors.

Specifications

Electrical Specifications and Connections

Rated Current (A)            32 A

Connector 1                  CEE5P 32 A

Connector 2                    CEE5P 32 A

Brand Connector 1                PCE

Cable Length                 50 m

Cable Type                 H07RN-F

Pins                  5

Wire Connection                  4 mm² (0.0062 inch²)

Maximum Wire Size AWG              12 AWG

Outer Isolation Type                Neoprene

Mechanical Specifications

IP Rating             IP44

Material               Copper

Colour              Black

Product Properties

Conductors            5

Ground Lug Position          6H
