• Solid housing

• RIAA Equalisation

• High quality components

• RCA stereo input and output

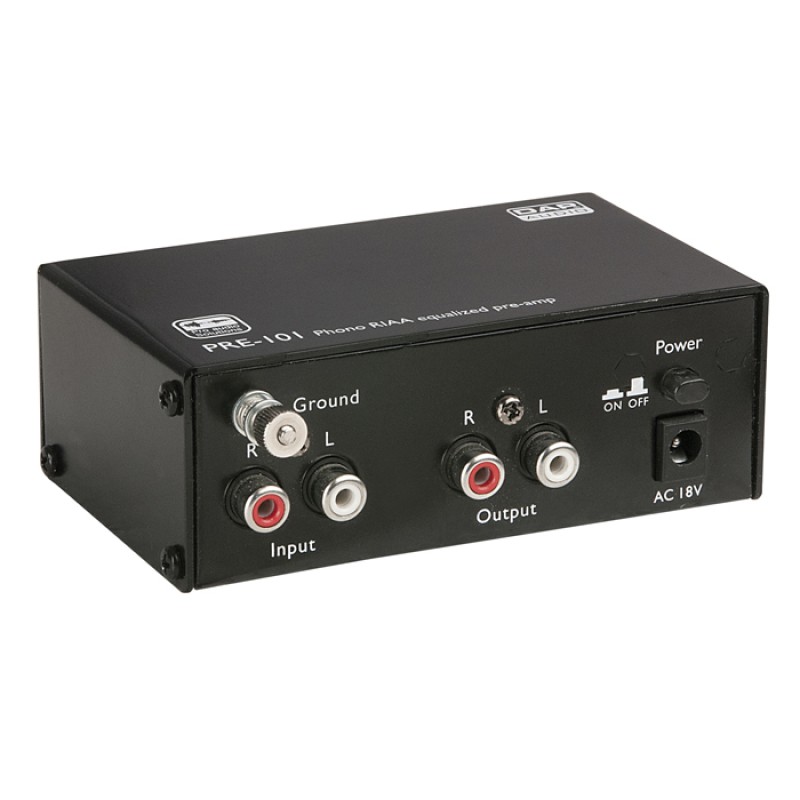

The DAP PRE-101 is a phono preamp with RIAA equalization. The tiny signal of magnetic pickups is amplified to fit the line-level inputs of mixers or USB sound-cards.

Specifications

Inputs

Stereo Inputs             1

Stereo Input Connector                RCA

Stereo Input Impedance                 47000 Ω

Outputs

Main Outputs               1

Main Output Connector                  RCA

Main Output Maximum Level                    16 dBu

Main Output Impedance                600 Ω

Audio Specifications

THD Level                    < 0.01 %

Signal-to-noise Ratio                   > 90 dB

Frequency Response Minimum               20 Hz

Frequency Response Maximum                  20000 Hz

Electrical Specifications and Connections

Power Supply                230 V AC 50 Hz (Power adapter)

Output voltage               18 V AC

Power Consumption                   1.4 W

Power Connector In                    Low Voltage AC plug

Power Adapter

Adapter type                  AC-AC adapter

Input voltage                 230 V AC, 50 Hz V

Output current DC (mA)                   150 mA

Mechanical Specifications

Height (mm)                      40 mm (1.575″)

Width (mm)                   113 mm (4.449″)

Length (mm)                    80 mm (3.15″)

Weight                    0.35 kg (0.772 lb)

IP Rating                 IP20 (indoor use only)

Housing                  Metal

Colour                Black

Product Properties

LED Indicators              Power

Included Items

Included Accessories             Adapter
