• Wash, Derby, Strobe & Laser Effects
  • 8x RGBUV wash LEDs
  • 8x RGBAW rotating derby LEDs
  • 12x SMD strobe LEDs
  • 1x 130 mW RG laser module

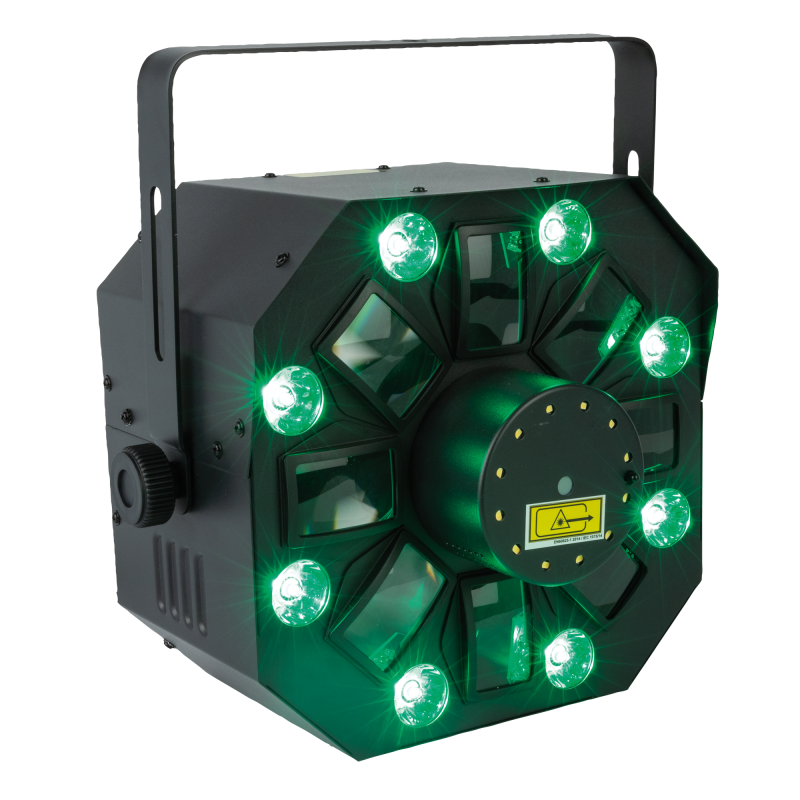

The Showtec Firestorm is a 4-in-1 light effect fixture that features 8 RGBUV wash LEDs, 8 RGBAW rotating derby LEDs, 12 SMD strobe LEDs and a 130 mW RG laser module. All 4 effects can be selected separately in auto or music-controlled programs. The RGBUV wash LEDs and the RGBAW rotating derby LEDs can be selected individually or in many pre programmed combinations. The 12 SMD strobe LEDs also benefit from pre programmed patterns. The RG laser has many versatile grating and burst effects and is equipped with a key lock and remote interlock connector. The Firestorm can also be controlled by DMX, giving you full control over all of the features. If you have multiple Firestorms, the master/slave function can be used to create a synchronised light show. If you want a single solution that includes colourful LED wash and derby light effects with a strobe and a laser, the Showtec Firestorm ticks all the boxes.


Please note that the laser only works when the interlock connector is connected with a remote interlock (order code 51316). You can test if the laser works properly with the included test connector. If you use the laser in public areas, a remote interlock is necessary for safety regulations.


Specifications


Source

Light Source Type               LED

Light Source Quantity (Spot)                 8

Light Source Power (Spot)               1.5 W

LED Strobe Quantity                  12

LED Strobe Power                 1 W

Life Expectancy                     50000 h

Laser Source                 DPSS

Laser Class               3R

Laser Colour               Red, Green

Laser Power (Total)                    130 mW

Laser Power (Red)                   30 mW

Laser Wavelength (Red)                  650 nm

Laser Power (Green)                  100 mW

Laser Wavelength (Green)                   532 nm

Beam Diameter at Aperture                  5 mm (0.197″)

Beam Divergence                  2 mrad


Control and Programming

Control Mode                    Built-in Program, DMX, Master Slave, Sound, Stand Alone

DMX Channels                 2, 18

Display                   7-segment

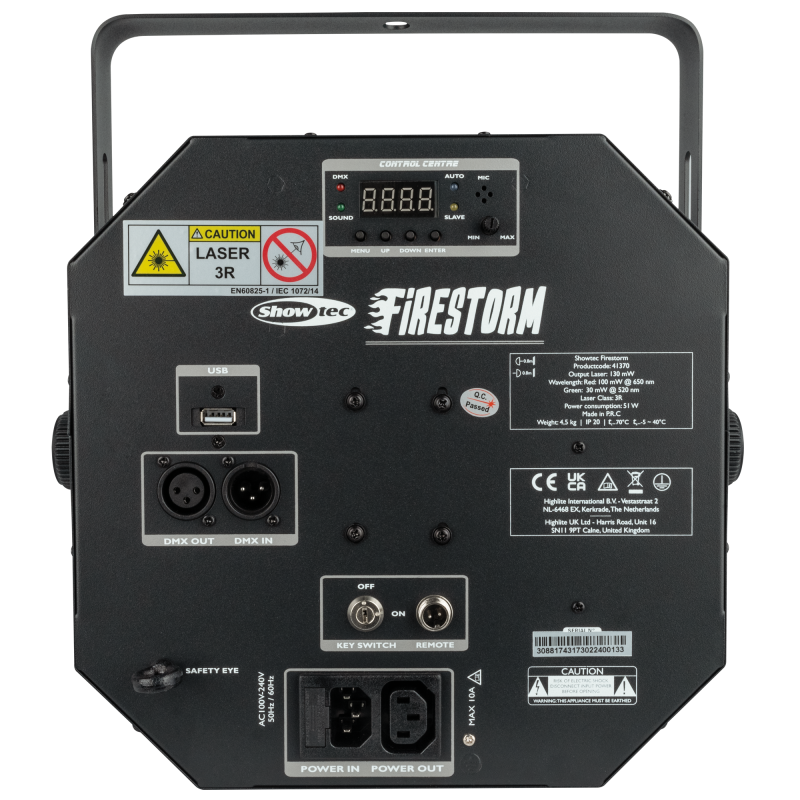

Electrical Specifications and Connections

Power Supply                100-240 V AC 50/60 Hz

Power Consumption                   51 W

Power Connector In                 IEC

Power Connector Out                  IEC

DMX Connector In                XLR 3P

DMX Connector Out                    XLR 3P


Mechanical Specifications

Height (mm)                241 mm (9.488″)

Width (mm)                   332 mm (13.071″)

Depth (mm)               335 mm (13.189″)

Weight      4.3 kg (9.48 lb)

IP Rating                  IP20 (indoor use only)

Housing                 Aluminium

Colour                   Black


Product Properties

Cooling                  Convection/Axial fan

Safety Features                      Key Switch, Safety Eye


Thermal Specifications

Maximum Ambient Temperature                 40 °C (104 °F)


Product Compliance

NOHD                62 m (203.412 ft)

MPE (for Exposure Duration of 0,25 s)                25 W·m⁻² (0.0037 W·ft⁻²)


Included Items

Included Cables                 IEC cable
