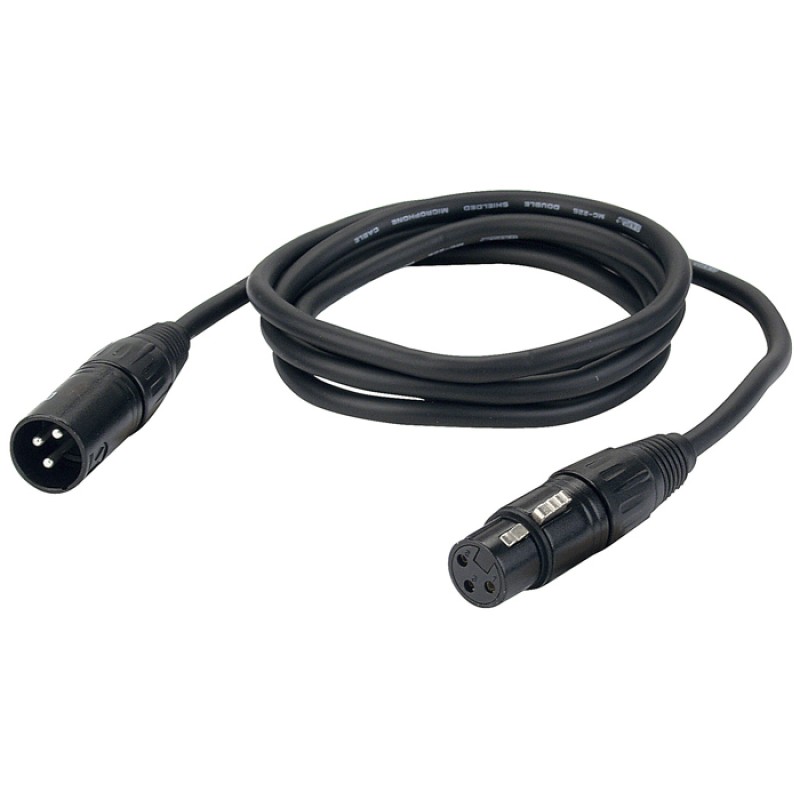

The FL-01 is THE basic microphone cable or all-round use. The FL-01 has high quality specs featuring a low noise signal, a wide dynamic range, flexible and road-proof!

Specifications

Electrical Specifications and Connections

Flashover Voltage                  30 V

Impedance              110 Ω

Connector 1                 XLR 3P

Connector 2                XLR 3P

Cable Length         10 m

Pins              3

Conductor Resistance                90 Ω/km (144.84 Ω/mile)

Conductor Capacitance                    60 pF/m (18.29 pF/ft)

Capacity Inner Conduct. Shield/Inner Conduct.                   78 pF/m (23.77 pF/ft)

Outer Cable Diameter                  6 mm (0.236″)

Outer Isolation Diameter                  6 mm (0.236″)

Outer Isolation Type                PVC

Mechanical Specifications

Weight               0.092 kg (0.203 lb)

Material                 PVC

Colour              Black

Product Properties

Contact Type            Copper

1st Shield             Conductive Plastic

2nd Shield               Oxygen Free Copper

Shield Resistance               25 Ω/km (40.23 Ω/mile)

Conductors             3

Thermal Specifications

Maximum Ambient Temperature            60 °C (140 °F)

Minimum Ambient Temperature          -20 °C (-4 °F)
