Specifications

Electrical Specifications and Connections
Flashover Voltage              30 V
Impedance             110 Ω

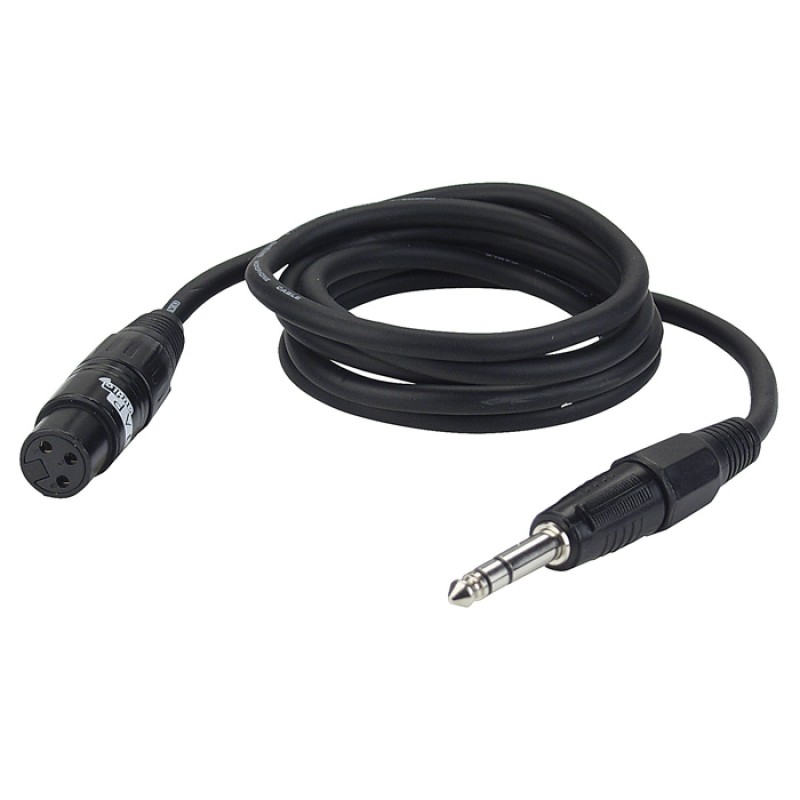

Connector 1                XLR 3P
Connector 2               TRS 6.3 mm balanced
Cable Length        3 m
Pins        3
Conductor Resistance       90 Ω/km (144.84 Ω/mile)
Conductor Capacitance            60 pF/m (18.29 pF/ft)
Capacity Inner Conduct. Shield/Inner Conduct.               78 pF/m (23.77 pF/ft)
Outer Cable Diameter               6 mm (0.236″)
Outer Isolation Diameter              6 mm (0.236″)
Outer Isolation Type             PVC

Mechanical Specifications
Weight              0.334 kg (0.736 lb)
Colour             Blue

Product Properties
Contact Type            Copper
1st Shield           Conductive Plastic
2nd Shield           Oxygen Free Copper
Shield Resistance         25 Ω/km (40.23 Ω/mile)
Conductors          3

Thermal Specifications
Maximum Ambient Temperature          60 °C (140 °F)
Minimum Ambient Temperature           -20 °C (-4 °F)
