• 2-in-1 combi cable

• Suitable for audio

• 3-pin XLR connectors

• powerCON connectors

• Available in different lengths

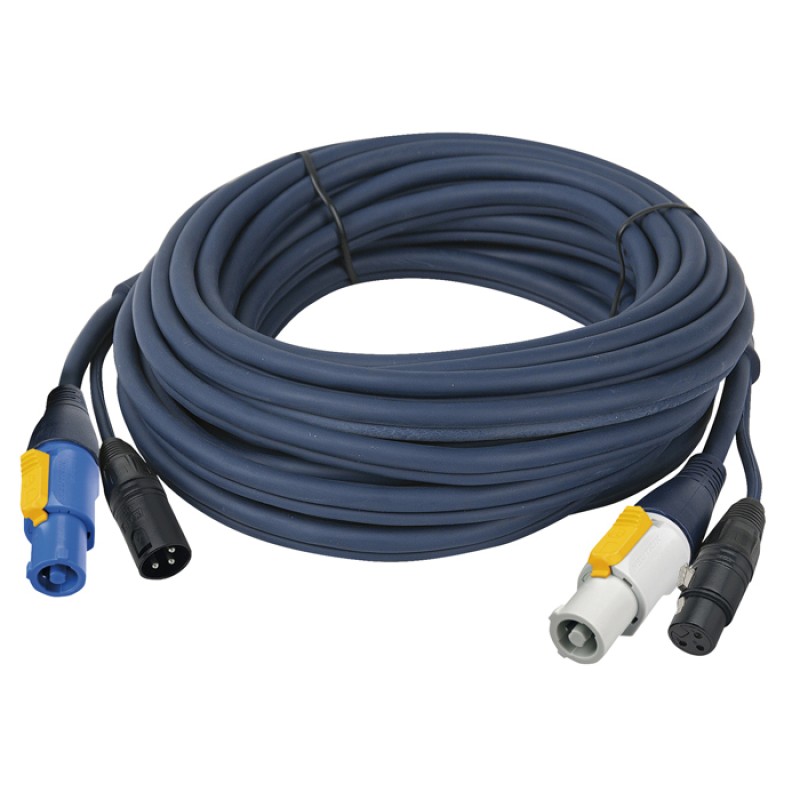

The DAP FP17 is a two-in-one cable for attaching your speakers to both your audio mixer and the main power supply. It has powerCON (male/female) and 3-pin XLR connectors (male/female).

The FP17 is called a hybrid cable since it has two different connections: one for power and the other for audio communication. Please note that it should not be connected and disconnected under load.

This hybrid powerCON cable is available in the sizes 150 cm, 3 m, 6 m, 10 m and 15 m.

Specifications

Electrical Specifications and Connections

Rated Current (A)             16 A

Flashover Voltage                     30 V

Connector 1                    powerCON Grey, XLR 3P

Connector 2                    powerCON Blue, XLR 3P

Brand Connector 1                  Neutrik

Cable Length              10 m

Pins                    3

Outer Cable Diameter                11 mm (0.433″)

Outer Isolation Type                  PVC

Mechanical Specifications

Weight                 1.51 kg (3.329 lb)

Material                Copper

Colour                Blue

Product Properties

Contact Type               Silver plated

Filler Material             Cotton, Paper

Conductors            6
