• 12x 8 W RGBW LED Par

• Double bracket for easy floor positioning

• 25° fixed beam angle

• Dimmer and strobe function

• Manual, DMX, Auto run and Sound-controlled mode

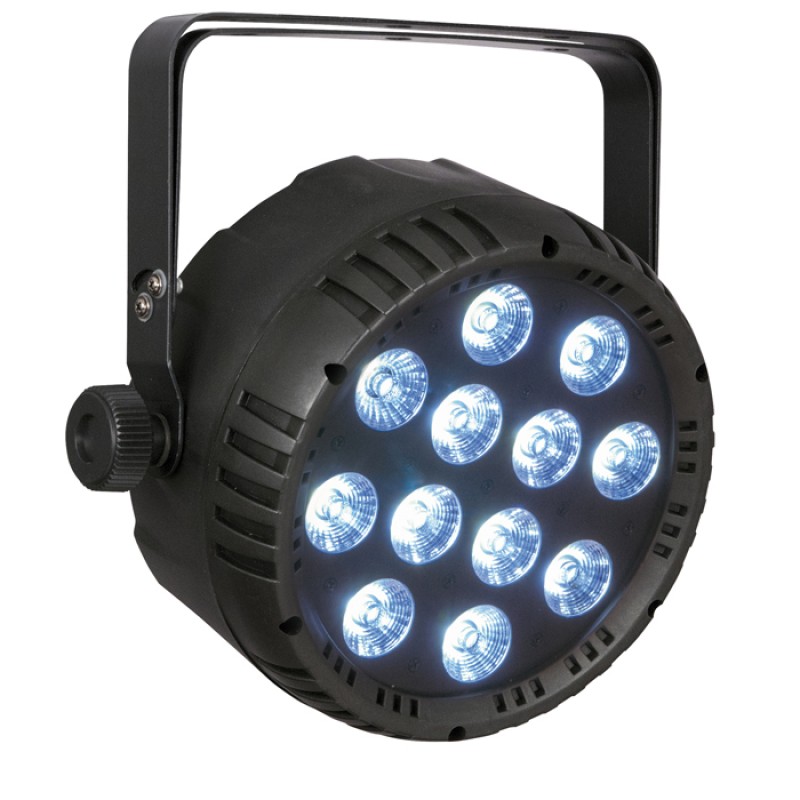

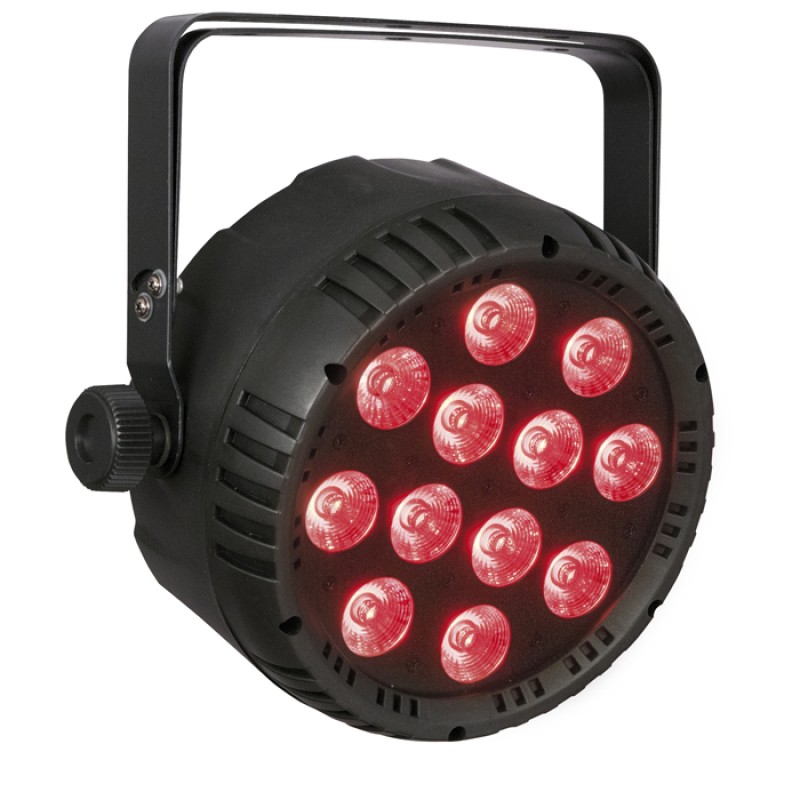

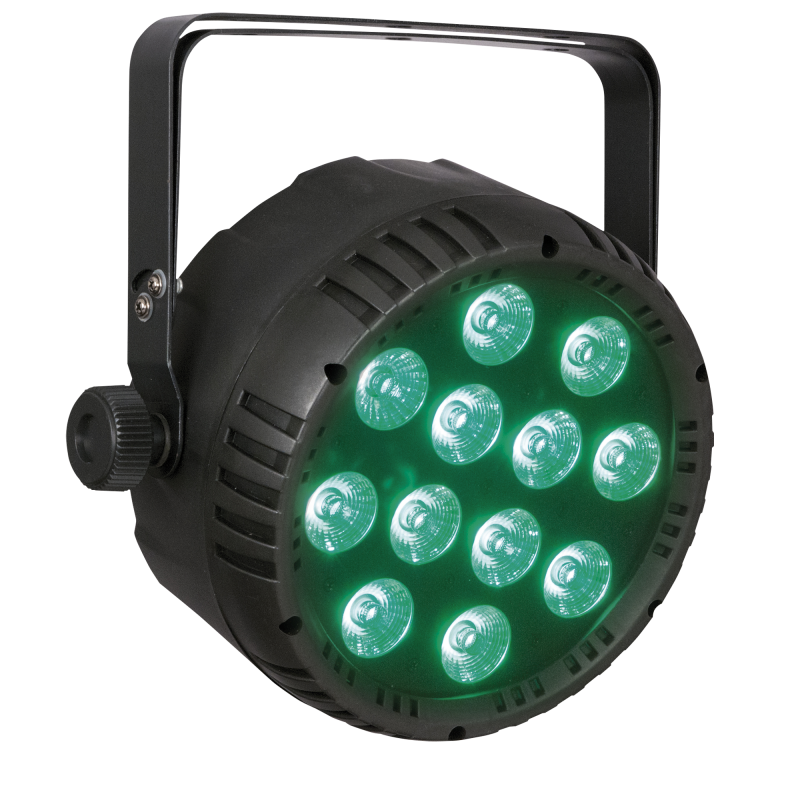

The Showtec Club Par 12/4 RGBW is a 12x 8 watt RGBW LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 25° fixed beam angle and is equipped with 0 - 100 % dimmer and 0 - 20 Hz strobe function, perfectly suitable for colour mixing on stage. The Club Par 12/4 RGBW is manually and DMX controllable in either Manual, Auto run and Sound-controlled mode with many available built-in programs. It comes with a 1.5 m power cable.

Specifications

Source

Light Source Type                    LED

Light Source Quantity                   12

Light Source Power                    8 W

LED Colour Type                  RGBW

Refresh Rate                     1200 Hz

Illuminance @ 2 m                 5400 lx

Luminous Flux (Total)                   3200 lm

Optical

Beam Angle (Circular)                  25 °

Control and Programming

Control Mode                 DMX, Manual, Sound, Stand Alone

DMX Channels                   4, 9

Protocols                  DMX, RDM

Display                  7-segment

Dynamic Effects

Dimmer                 0-100 %

Strobe                   0-20 Hz

Electrical Specifications and Connections

Power Supply                   100-240 V AC 50/60 Hz

Power Consumption                78 W

Power Connector In                 IEC

DMX Connector                 XLR 3P In/Out

DMX Connector In                 XLR 3P

DMX Connector Out                XLR 3P

Cable Length                1.5 m

Mechanical Specifications

Length (mm)                 290 mm (11.417″)

Width (mm)                  270 mm (10.63″)

Height (mm)                    110 mm (4.331″)

Weight                   2.2 kg (4.85 lb)

IP Rating                IP20 (indoor use only)

Housing               Plastic

Colour                Black

Product Properties

Cooling                Axial fan

Rigging

Mounting Options               Clamp, Surface

Thermal Specifications

Maximum Ambient Temperature             40 °C (104 °F)

Minimum Operating Temperature             -10 °C (14 °F)

Included Items

Included Cables             IEC cable

Included Rigging           Bracket
