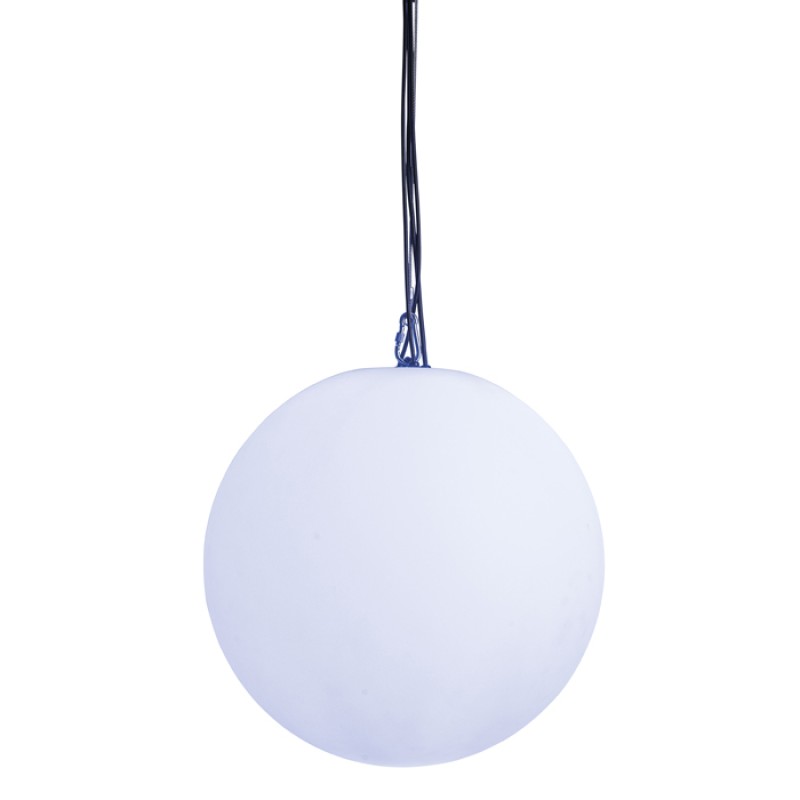

• High Output LED Sphere

• RGBW LED Source

• DMX Control

• OLED Display

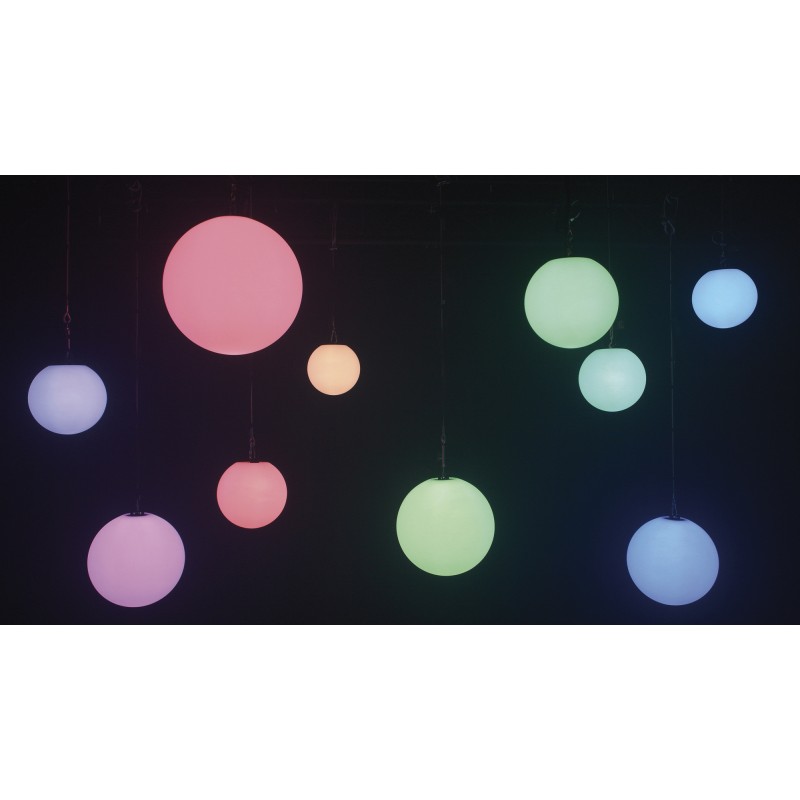

The Illumisphere series are stylish LED shapes suitable for event decorations, trade shows, corporate events and so on. They are the right tool to create a magical and cozy atmosphere to your event

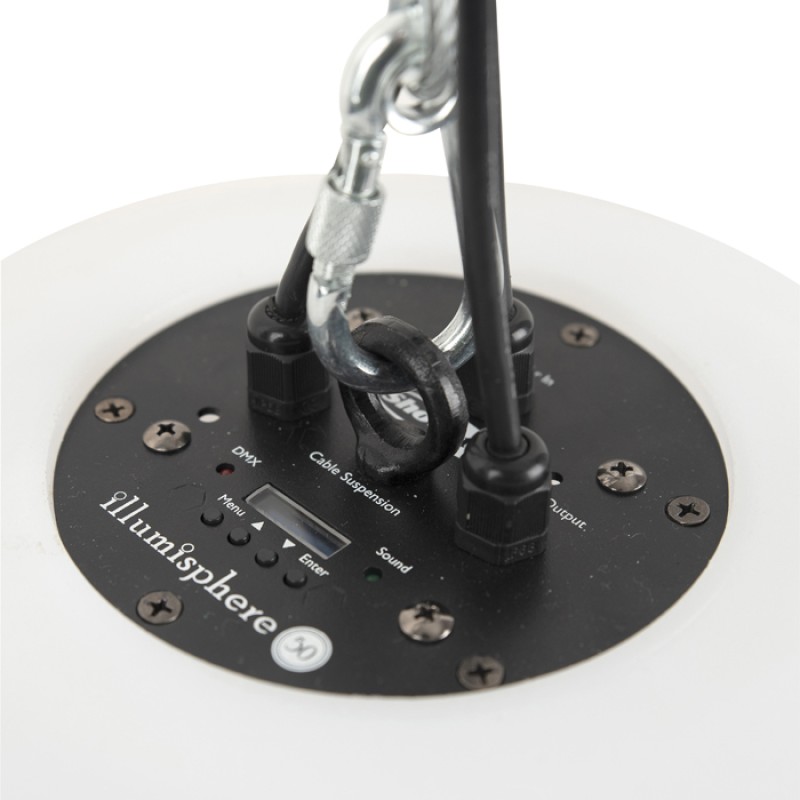

The Illumispheres are equipped with bright RGBW LEDs ensuring powerful and rich colours. Setup is done easy by the OLED screen. For safe mounting an hanging eye is equipped.

Specifications

Source
Light Source Type    LED
Light Source Quantity   462
Light Source Power   25 W
LED Colour Type   RGBW
Refresh Rate   1000 Hz

Dynamic Effects
Dimmer    0-100 %
Strobe   0-20 Hz

Electrical Specifications and Connections
Power Supply    100-240 V AC 50/60 Hz
Power Consumption   100 W
Power Connector In   Schuko Plug
DMX Connector In   XLR 3P
DMX Connector Out   XLR 3P
Cable Length   0.80 m

Mechanical Specifications
Height (mm)   500 mm (19.685″)
Width (mm)   500 mm (19.685″)
Depth (mm)   500 mm (19.685″)
Weight   4.1 kg (9.039 lb)
IP Rating   IP20 (indoor use only)
Housing   Metal, Plastic
Colour   Black, White

Product Properties
Cooling   Convection

Rigging
Mounting Options   Eye bolt
Safety Attachment   No

Thermal Specifications
Maximum Ambient Temperature   40 °C (104 °F)

Included Items
Included Cables   Fixed Cable
Control and Programming
Control Mode    Auto, DMX, Master Slave, Sound
DMX Channels    1, 4, 6, 8
Protocols   DMX
Display   OLED
