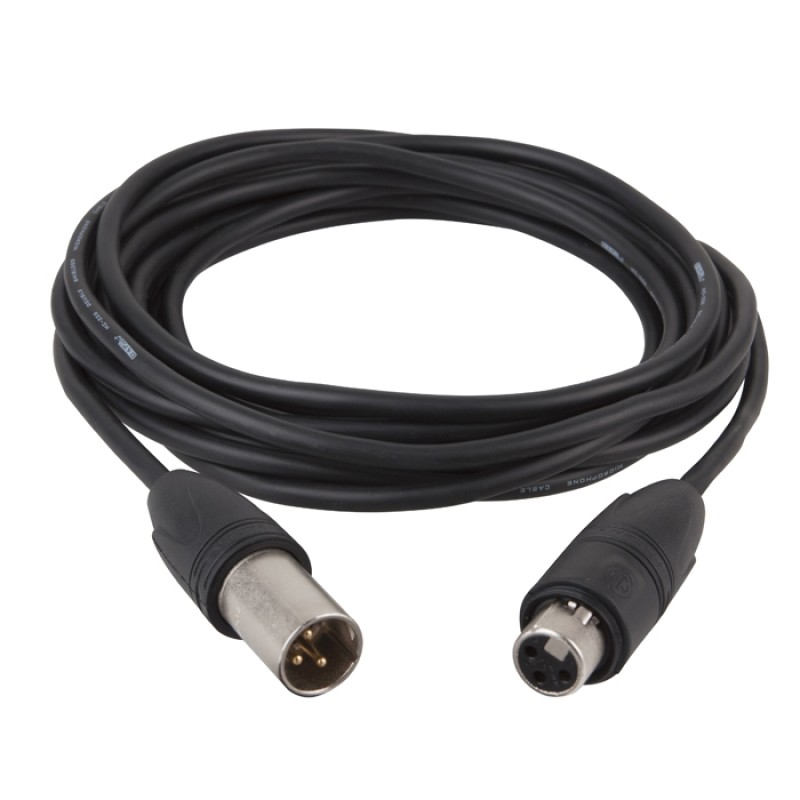

For the most professional user we offer the FL-73 series which is a high-end 100 % double shielded balanced mic/line/data cable from exceptional quality and the original “Heavy Duty” Neutrik® XX-HD connectors. All metal design, dust and water protected according to IP 65 by mating with related XX-HD cable connector or MPR-HD chassis connector. Gold contacts are standard.

Specifications

Electrical Specifications and Connections

Flashover Voltage            60 V

Impedance            110 Ω

Connector 1             XLR 3P

Connector 2             XLR 3P

Brand Connector 1              Neutrik

Cable Length             3 m

Pins                  3

Conductor Resistance                90 Ω/km (144.84 Ω/mile)

Conductor Capacitance                    60 pF/m (18.29 pF/ft)

Capacity Inner Conduct. Shield/Inner Conduct.              78 pF/m (23.77 pF/ft)

Outer Cable Diameter             6 mm (0.236″)

Outer Isolation Diameter                 6 mm (0.236″)

Outer Isolation Type                    PVC

Mechanical Specifications

Weight               0.148 kg (0.326 lb)

IP Rating             IP65

Material            PVC

Colour                 Black

Product Properties

Contact Type              Gold plated

1st Shield              Conductive Plastic

2nd Shield             Oxygen Free Copper

Shield Resistance             25 Ω/km (40.23 Ω/mile)

Conductors             3

Thermal Specifications

Maximum Ambient Temperature             60 °C (140 °F)

Minimum Ambient Temperature           -20 °C (-4 °F)
