- Compact 7x 3 W RGB LED Par
- Double bracket for easy floor positioning
- Dimmer and strobe function
- Manual, DMX and Master/Slave control

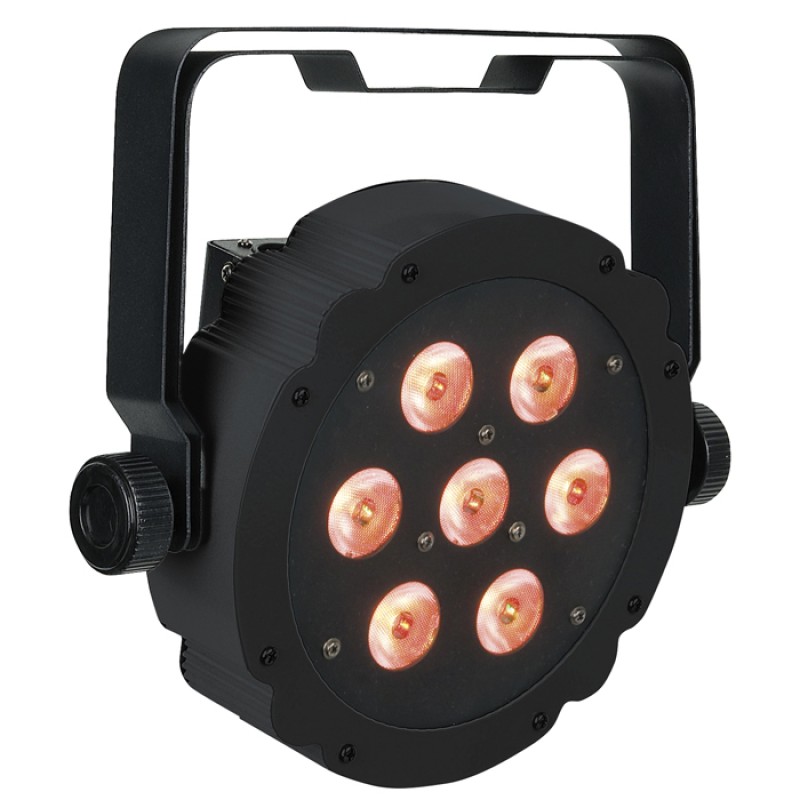

The Showtec Compact Par 7 Tri is a compact 7x 3 watt RGB LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 40° fixed beam angle and features a 0 - 100 % dimmer and 0 - 20 Hz strobe function, perfectly suitable for short-throw colour mixing. The Compact Par 7 Tri can be controlled manually, via DMX and Master/Slave in either Manual, Auto run, or Sound-controlled mode with many available built-in programs. Its design fits in every setting with either black and grey housing.
Specifications
Source
Light Source Type LED
Light Source Quantity 7
Light Source Power 3 W
LED Colour Type RGB
Refresh Rate 3900 Hz
Illuminance @ 2 m 1772 lx
Luminous Flux (Total) 2685 lm
Optical
Beam Angle (Circular) 40 °
Control and Programming
Control Mode Auto, Built-in Program, DMX, Master Slave, Sound
DMX Channel 3, 4, 8
Protocols DMX
Display 7-segment
Dynamic Effects
Dimmer 0-100 %
Strobe 0-20 Hz
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 28 W
Power Connector In IEC
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Cable Length 1.5 m
Mechanical Specifications
Length (mm) 275 mm (10.827″)
Width (mm) 95 mm (3.74″)
Height (mm) 256 mm (10.079″)
Weight 2.2 kg (4.85 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties
Cooling Convection
Rigging
Mounting Options Clamp, Surface
Thermal Specifications
Maximum Ambient Temperature 40 °C (104 °F)
Minimum Operating Temperature -10 °C (14 °F)
Included Items
Included Cables IEC cable
Included Rigging Bracket
