• 7x 12 W RGBWA-UV LED Spot

• IP65 (dust and water resistant, fit for outdoor use)

• 15° fixed beam angle

• Dimmer and strobe function

• Manual, DMX, IR and Master/Slave control

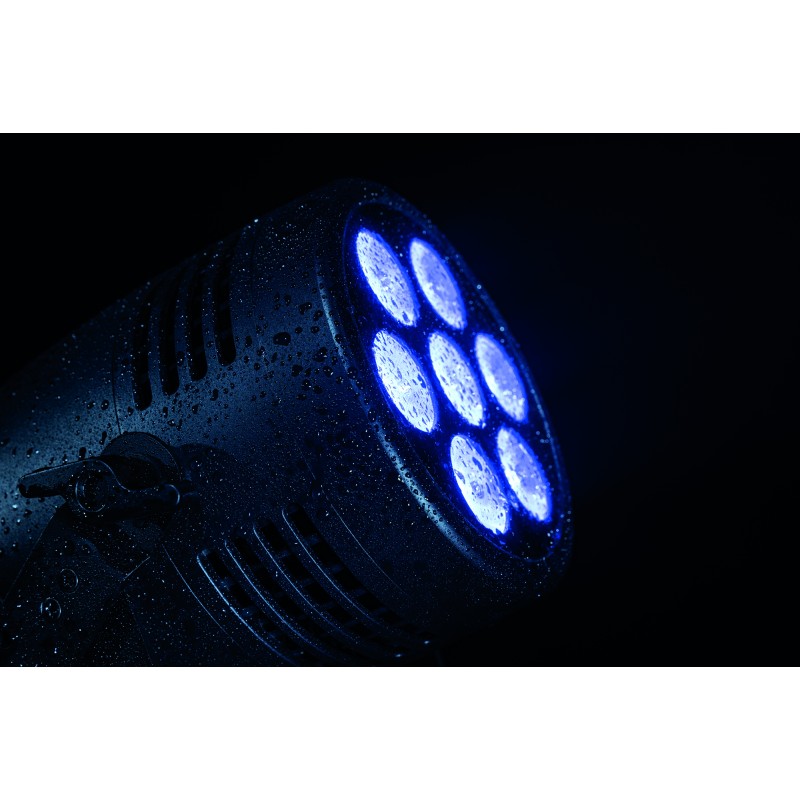

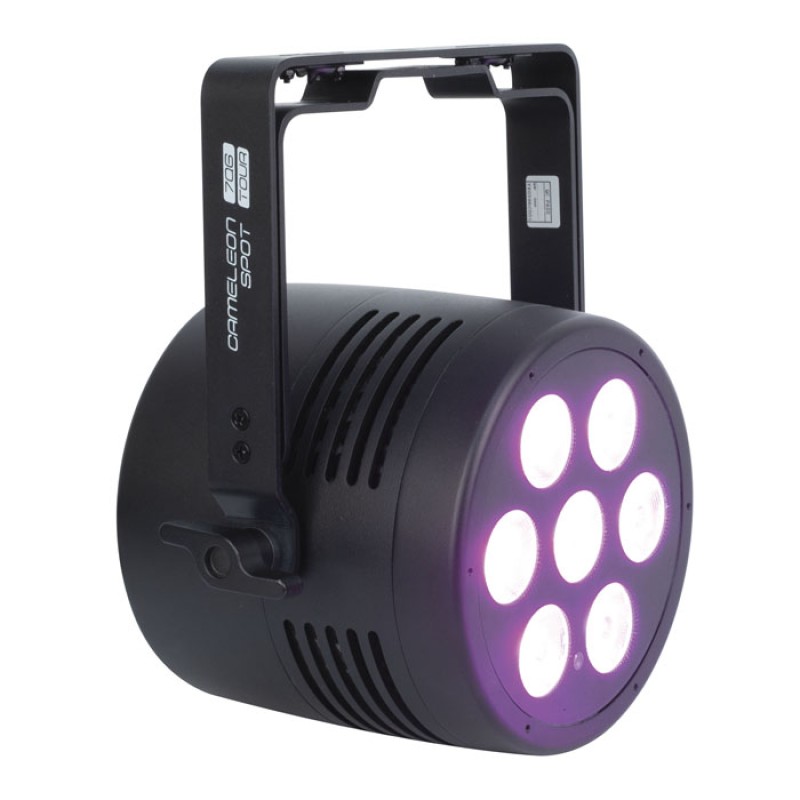

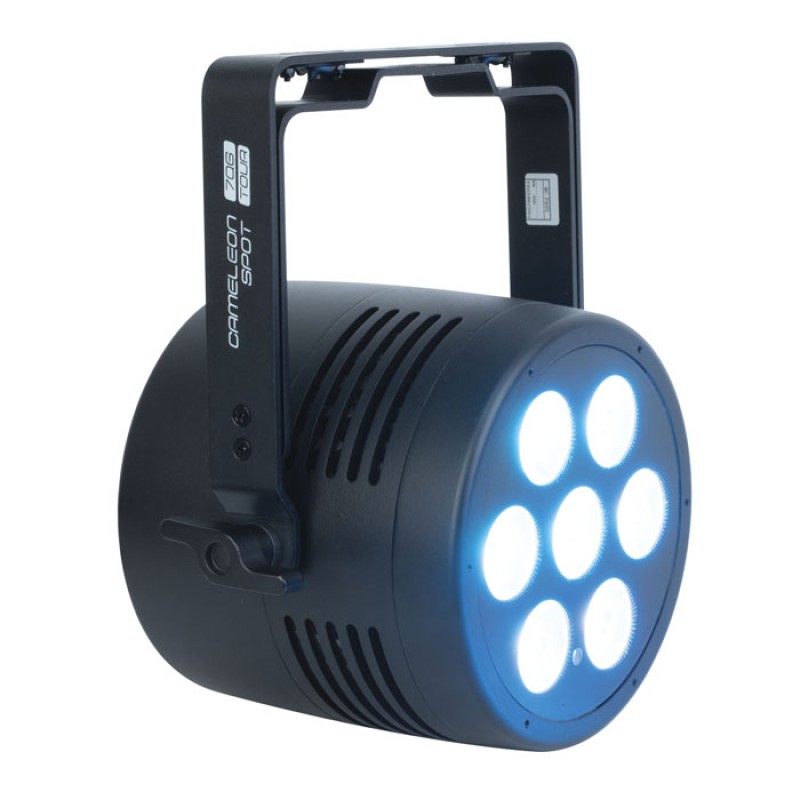

The Showtec Cameleon Spot 7Q6 Tour is a compact 7x 12 watt RGBWA-UV LED spot with IP65 rating, suitable for indoor and outdoor applications. It is small enough to position inside a square truss as an up/down light, has a fixed 15° beam angle and features 0-100 % dimmer and 0-20 Hz strobe effects. The Cameleon Spot 7Q6 Tour can be controlled manually via its OLED display with touch buttons, via DMX, Master/Slave and IR Remote in either Manual or Auto run mode with many available built-in programs. It has IP65-rated Seetronic Power Pro True and 3-pin XLR connectors and a bracket. An infrared remote and 40° beam shaper are optionally available.

Specifications

Source

Light Source Type               LED

Light Source Quantity                7

Light Source Power                12 W

LED Colour Type                 RGBWAUV

Refresh Rate                3000 Hz

Luminous Flux (Total)                 1850 lm

Luminous Flux (Red)                   500 lm

Luminous Flux (Green)                   800 lm

Luminous Flux (Blue)               195 lm

Luminous Flux (White)                  725 lm

Luminous Flux (Amber)                 575 lm

Luminous Flux (UV)                  55 lm

Optical

Beam Angle (Circular)                  15 °

Control and Programming

Control Mode                     Auto, DMX, Manual, Master Slave, Remote

DMX Channels                  6, 8, 13

Protocols                 DMX, RDM

Display                 OLED

Dynamic Effects

Dimmer                 0-100 %

Strobe                 0-20 Hz

Electrical Specifications and Connections

Power Supply                      100-240 V AC 50/60 Hz

Power Consumption                    65 W

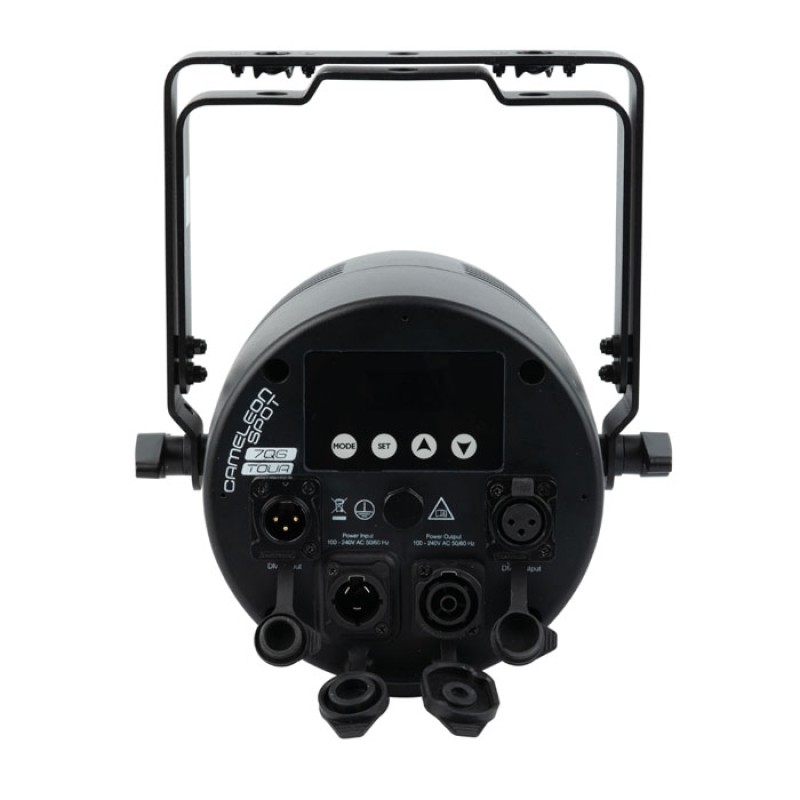

Power Connector In                  Power Pro True

Power Connector Out                     Power Pro True

DMX Connector                    XLR 3P In/Out

DMX Connector In                     XLR 3P

DMX Connector Out                      XLR 3P

Mechanical Specifications

Length (mm)                   225 mm (8.858″)

Width (mm)                   160 mm (6.299″)

Height (mm)                   242 mm (9.528″)

Weight                 3.3 kg (7.275 lb)

IP Rating                IP65

Housing               Aluminium die-cast

Colour              Black

Product Properties

Cooling              Convection

Thermal Specifications

Maximum Ambient Temperature                40 °C (104 °F)

Minimum Operating Temperature              -5 °C (23 °F)

Included Items

Included Cables            Power Pro True Cable
