• 14x 12 W RGBW Osram LED Spot

• Wide motorised zoom range (pin spot to wash)

• IP65 (dust and water resistant, fit for outdoor use)

• Dimmer and strobe function

• DMX and Master/Slave control

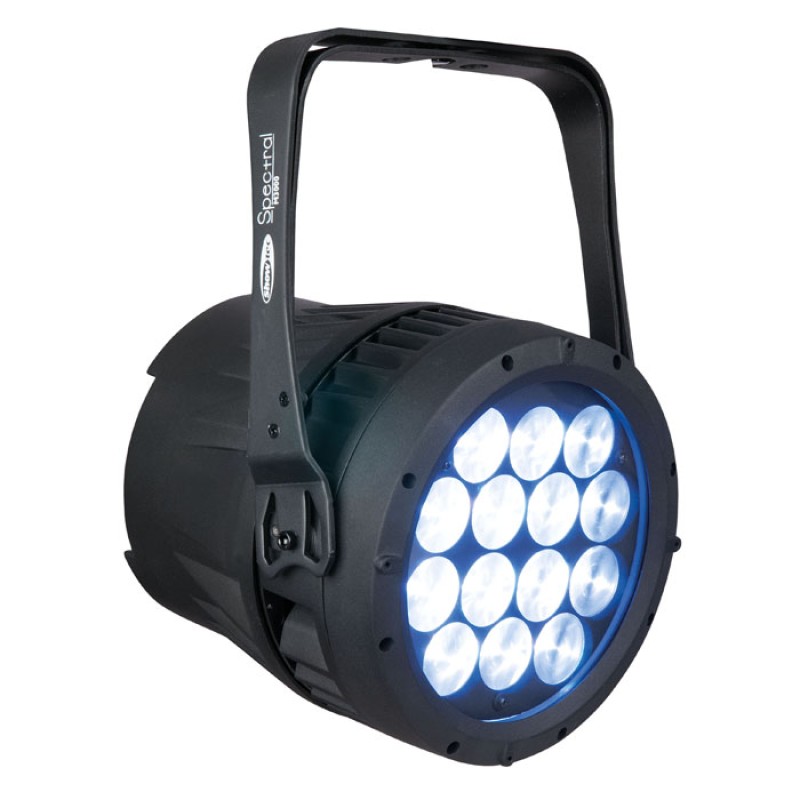

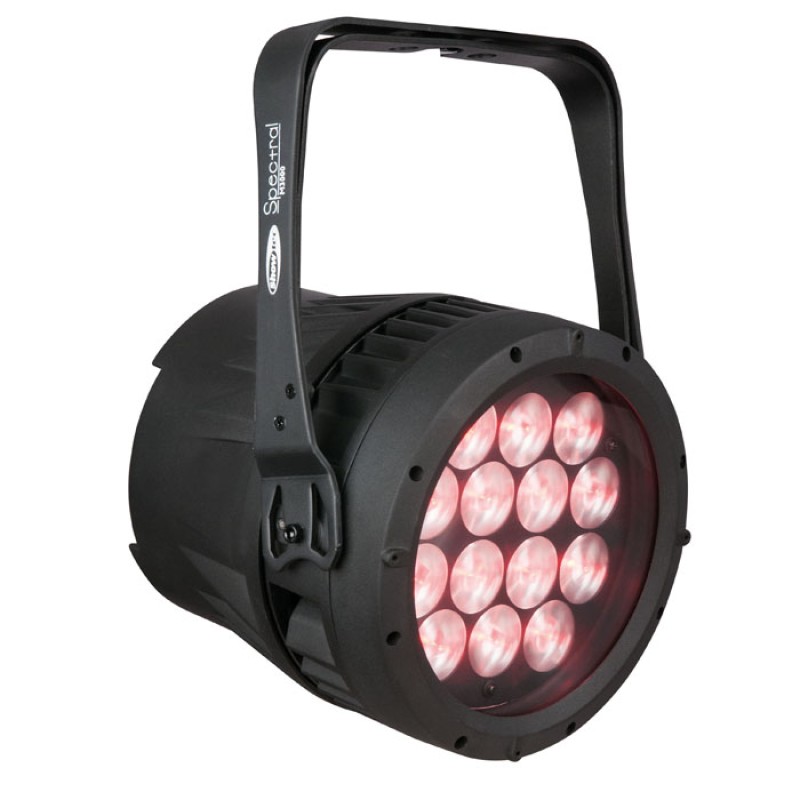

The Showtec Spectral M3000 Zoom Q4 MKII is a bright 14x 12 watt RGBW LED spot to wash Parcan, with a wide 8° - 40° motorised zoom range, suitable for in- and outdoor applications. Each function, including its 0 - 100 % dimmer, 0 - 20 Hz strobe and colour mixing engine, is controllable via DMX and Master/Slave in either Manual and Auto run mode. A compact and lightweight 8.4 kg design with IP65 rating, makes the Spectral M3000 Q4 MKII fit for almost any environment.

Specifications

Source

Light Source Type                    LED

Light Source Quantity                  14

Light Source Power                    12 W

LED Colour Type                  RGBW

Refresh Rate                   900 Hz

Refresh Rate (Max.)                   9 kHz

Luminous Flux (Total)                  3900 lm

Optical

Beam Angle Minimum (Circular)                   8 °

Beam Angle Maximum (Circular)                   40 °

Zoom Type                Motorised

Zoom Minimum                  8 °

Zoom Maximum                   40 °

Control and Programming

Control Mode               Auto, DMX, Manual, Master Slave

DMX Channels                  3, 4, 5, 6, 7, 12, 17

Protocols                   DMX

Display                7-segment

Dynamic Effects

Dimmer                 0-100 %

Strobe                    0-20 Hz

Electrical Specifications and Connections

Power Supply                    100-240 V AC 50/60 Hz

Power Consumption                 200 W

Power Connector In                    powerCON TRUE1

Power Connector Out                  powerCON TRUE1

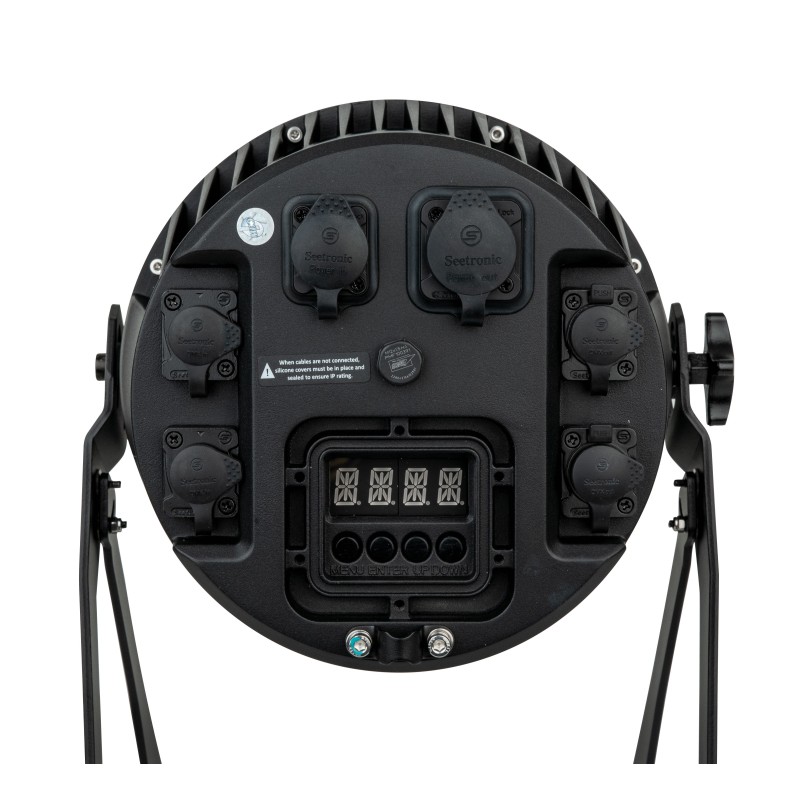

DMX Connector                    Dedicated 3P IP65 In/Out, Dedicated 5P IP65 In/Out

DMX Connector In               Dedicated 3P IP65, Dedicated 5P IP65

DMX Connector Out                Dedicated 3P IP65, Dedicated 5P IP65

Cable Length               1.5 m

Mechanical Specifications

Length (mm)               250 mm (9.843″)

Width (mm)                  275 mm (10.827″)

Height (mm)                 375 mm (14.764″)

Weight                  8.4 kg (18.519 lb)

IP Rating                  IP65

Housing                Aluminium die-cast

Colour                Black

Product Properties

Cooling                Convection

Rigging

Mounting Options                   Clamp, Surface

Safety Attachment                Yes

Thermal Specifications

Maximum Ambient Temperature             40 °C (104 °F)

Minimum Operating Temperature               -10 °C (14 °F)

Included Items

Included Cables                powerCON TRUE1 cable

Included Rigging            Bracket, Safety Cable
