• 320 W LED with retro tungsten dimming effect

• 264 Individually controllable RGB LEDs

• Supports DMX, Art-Net, sACN, RDM, master/slave, and manual modes

• Double bracket for hanging or standing installations

• Channel range from 4 to 793 for versatile configurations

The Showtec Goliath is a retro light effect that combines a powerful 300 W warm white LED with built-in 20 W amber LED, along with a dual RGB LED ring and central RGB LEDs. The 20 W amber and 300 W warm white LED replicate the classic tungsten dimming effect, delivering a nostalgic retro feel. Depending on the selected mode, the warm white and amber LEDs can be controlled separately or as a single ‘tungsten channel’.

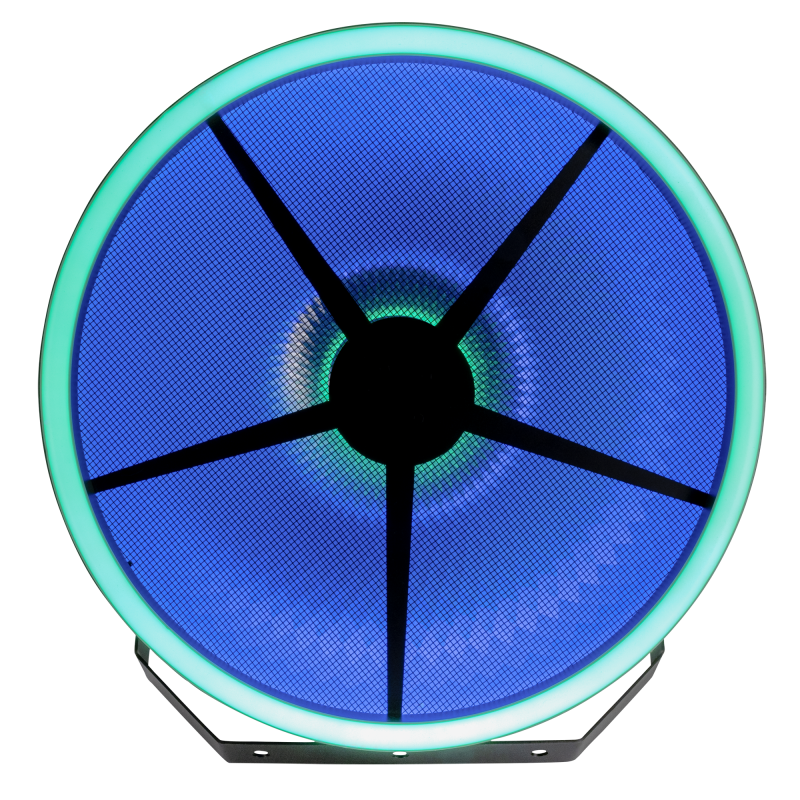

Behind the central circular plate there are 24 RGB LEDs that illuminate the centre of the reflector. Surrounding this, a large circle of 120 RGB LEDs lights up the reflector’s edges. A second ring of 120 RGB LEDs at the outer edge faces forward. Each RGB LEDs can be controlled individually, offering nearly infinite effect possibilities.

The Goliath supports multiple control modes, including DMX, Art-Net, sACN, RDM, master/slave and manual modes, with several personalities ranging from 4 to 793 channels. It features a double bracket for both hanging and standing installations. Additionally, quick-lock mounting points on the back allow for easy attachment to a truss using the included brackets. A Schuko to Power Pro True cable is included.

Specifications

Source

Light Source Type             LED

Light Source 1- Quantity             1

Light Source 1- Power                320 W

Light Source 2- Quantity              264

Light Source 2- Power             0.5 W

LED Colour Type           WW, RGB

Refresh Rate (Max.)            6 kHz

Control and Programming

Control Mode               Art-Net, Built-in Program, DMX, RDM, sACN, Stand Alone

DMX Channels               4, 5, 14, 21, 433, 793

Protocols               Art-Net, DMX, RDM, sACN

Display               OLED

Dynamic Effects

Dimmer            0-100 %

Electrical Specifications and Connections

Power Supply                  100-240 V AC 50/60 Hz

Power Consumption              335 W

Power Connector In                   Power Pro Blue

Power Connector Out               Power Pro Grey

DMX Connector In              RJ45, XLR 3P, XLR 5P

DMX Connector Out             RJ45, XLR 3P, XLR 5P

Mechanical Specifications

Height (Including Handles)              583 mm (22.953″)

Height (Without Handles)                490 mm (19.291″)

Width (Including Handles)             503 mm (19.803″)

Width (Without Handles)                490 mm (19.291″)

Depth (Including Handles)              433 mm (17.047″)

Weight                12.5 kg (27.558 lb)

IP Rating                IP20 (indoor use only)

Housing             Metal

Colour          Black

Product Properties

Cooling          Active

Rigging

Mounting Options             Bracket, Quick-Lock

Thermal Specifications

Maximum Ambient Temperature             40 °C (104 °F)

Minimum Operating Temperature              -5 °C (23 °F)

Product Compliance

Energy efficiency class             T/B/D

Included Items

Included Cables            Power Pro Cable

Included Rigging           2x Quick-Lock Bracket
