• 150 W RGBAL LED with high CRI for accurate colour rendering

• Suitable for theatrical applications, museums, and exhibitions

• Manually adjustable zoom, and shutters

• Hard-edged field of light

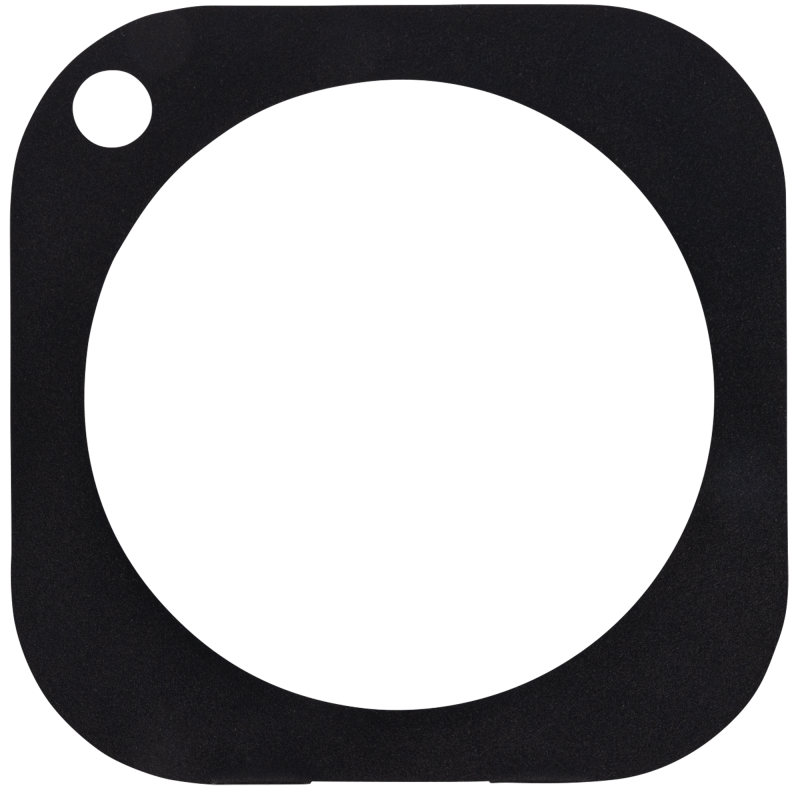

• Filter frame included

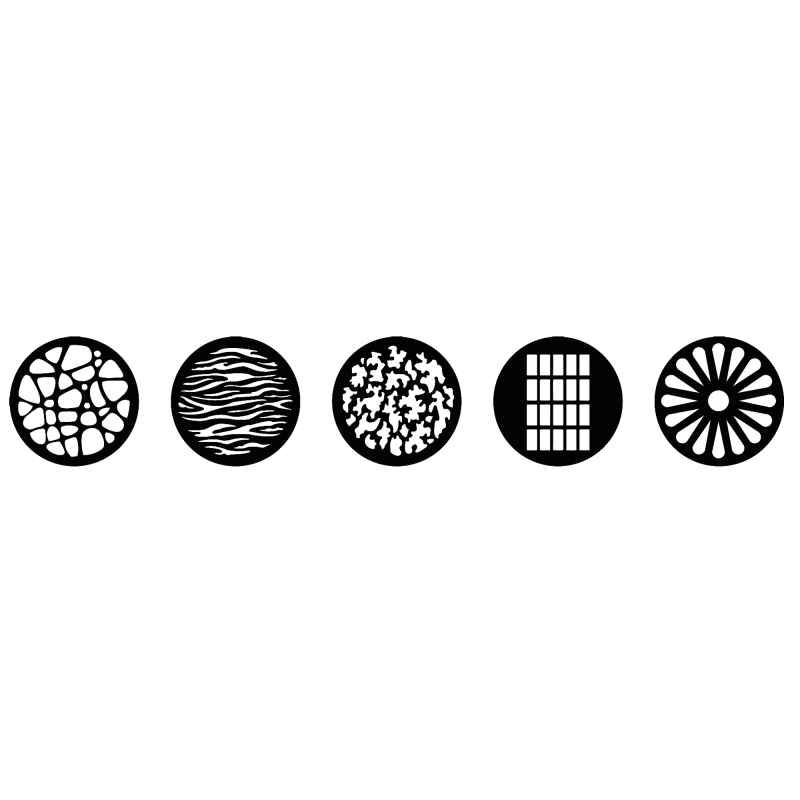

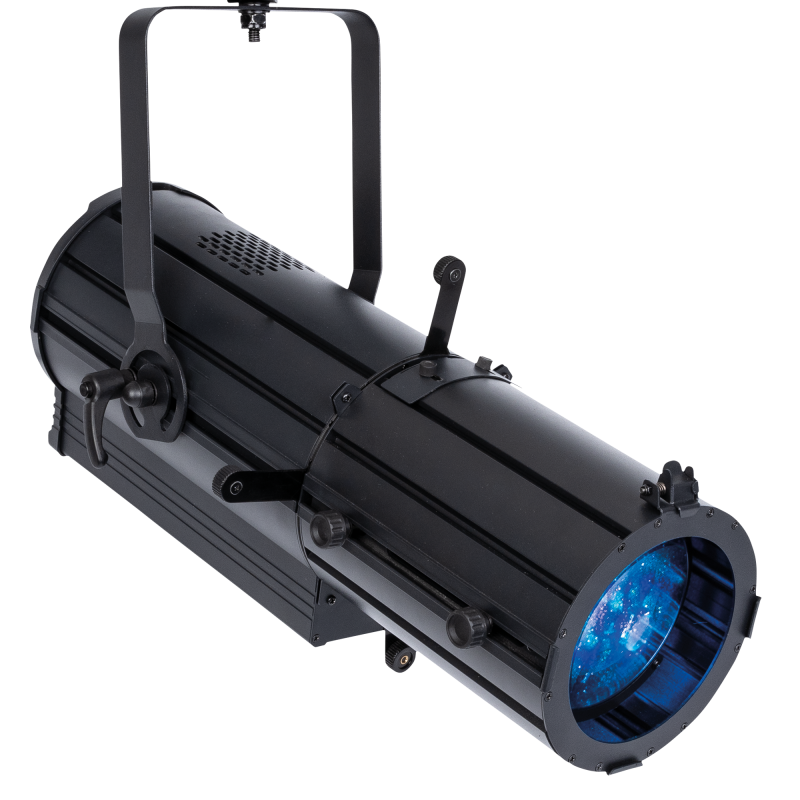

The Showtec ACT Profile 150 RGBAL is a compact 150-watt RGBAL LED profile with high CRI and silent operation, suitable for theatrical applications, schools, museums, and exhibitions. It projects a bright, hard-edged beam of light within a 23° - 46° manually adjustable zoom range. The ACT Profile 150 RGBAL can be controlled via DMX, RDM, and it is equipped with one knob for manual colour and dimmer control. It comes with 5 design gobos and a four-blade shutter system, allowing you to add the proper intensity of light where it's needed.

Specifications:

Source

Light Source Type             LED

Light Source Quantity                1

Light Source Power                150 W

LED Colour Type                RGBAL

Refresh Rate (Max.)                1 kHz

Illuminance @ 3 m                3260 lx

Luminous Flux (Total)             3571 lm

CRI                91

Minimum CCT                 2700 K

Maximum CCT                10000 K

Optical

Beam Angle Minimum (Circular)           23 °

Beam Angle Maximum (Circular)                46 °

Zoom Type            Manual

Zoom Ratio           1:2

Zoom Minimum            23 °

Zoom Maximum            46 °

Control and Programming

Control Mode           DMX, Manual, RDM

DMX Channels              5, 8, 12

Protocols                 DMX, RDM

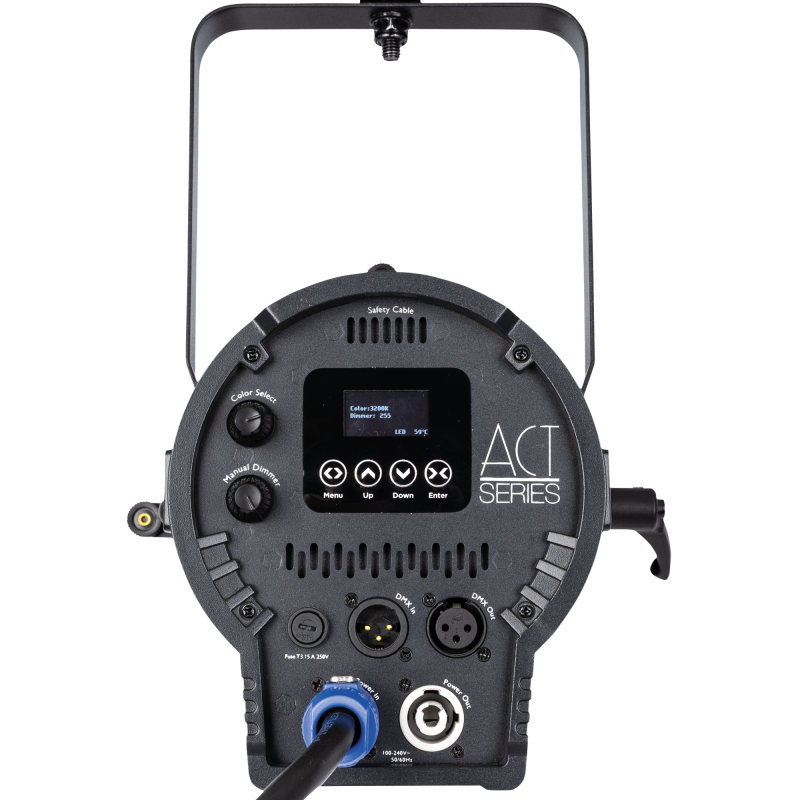

Display             OLED

Display Size              1.3 "

Dimmer Resolution           16 bit

Dynamic Effects

Dimmer             0-100 %

Electrical Specifications and Connections

Power Supply              100-240 V AC 50/60 Hz

Power Consumption              180 W

Fuse            3.15 A

Power Connector In              Power Pro Blue

Power Connector Out                Power Pro Grey

DMX Connector              XLR 3P In/Out

DMX Connector In              XLR 3P

DMX Connector Out             XLR 3P

Mechanical Specifications

Length (mm)            531 mm (20.906″)

Width (mm)               226 mm (8.898″)

Height (mm)                373 mm (14.685″)

Weight             6.15 kg (13.558 lb)

IP Rating             IP20 (indoor use only)

Housing             Aluminium, Metal

Colour             Black

Product Properties

Cooling            Forced Convection

Rigging

Mounting Options      Bracket

Safety Attachment        Yes

Safety Eyes            1

Thermal Specifications

Maximum Ambient Temperature           40 °C (104 °F)

Included Items

Included Cables             Power Pro Cable
