  • Power up to 45 panels (5 outputs of up to 9 panels each)
  • 6 m cable

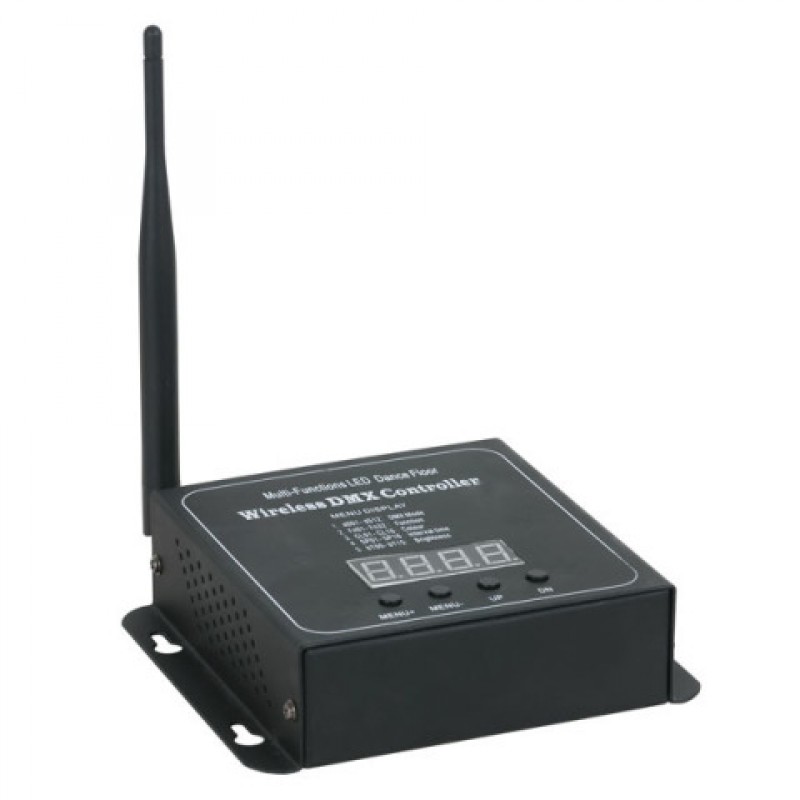

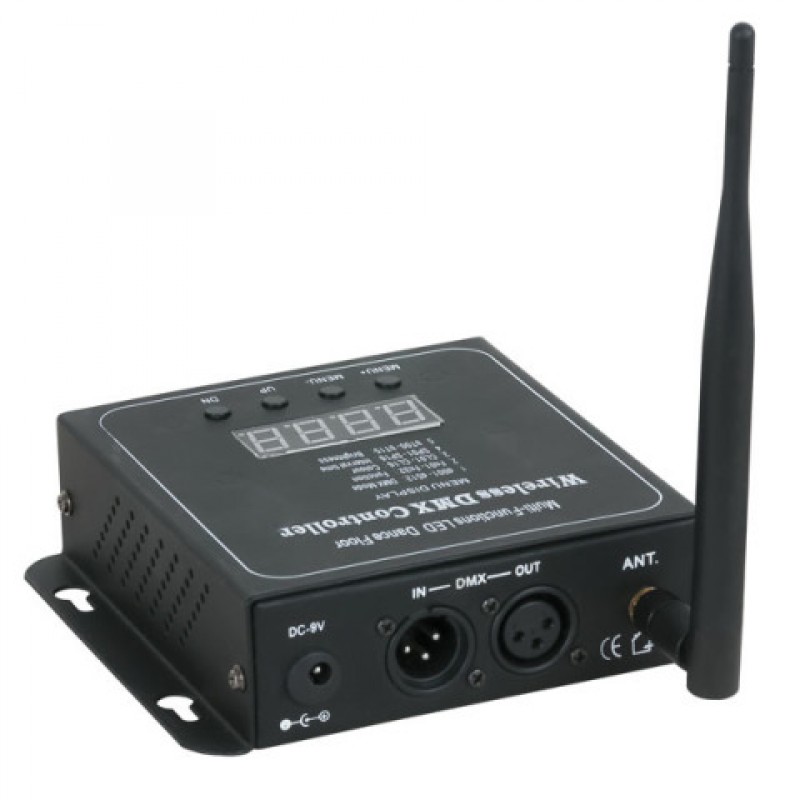

The Dancefloor Sparkle DMX Box is an intuitive interface which allows you to select the colours, programs, intensity and speed of your dancefloor by DMX. The antenna transmits the signal to your dancefloor by RF in order minimize the needs of cables.


Specifications


Control and Programming

Control Mode   Built-in Program, DMX, RF

DMX Channels   5

Protocols   DMX/RF

Display   7-segment, LED


Dynamic Effects

Dimmer  0-100 %


Electrical Specifications and Connections

Power Supply    9 V DC

Power Consumption   3 W

Power Connector In   Low Voltage DC plug


Power Adapter

Adapter type    AC-DC adapter (not included)


Mechanical Specifications

Height (mm)    150 mm (5.906″)

Width (mm)   130 mm (5.118″)

Depth (mm)  43 mm (1.693″)

Weight   0.655 kg (1.444 lb)

IP Rating   IP20 (indoor use only)

Housing   Metal

Colour   Black


Product Properties

Cooling   Passive


Rigging

Mounting Options   Surface


Thermal Specifications

Maximum Ambient Temperature   40 °C (104 °F)


Included Items

Included Cables   Low voltage DC plug cables

Write a review

Note: HTML is not translated!
    Bad           Good

Showtec Sparkle Dancefloor Wireless DMX Box

  • Brand: Showtec
  • Product Code: 42332
  • Availability: 5-7 Days

  • £299.50

  • Ex Tax: £249.58

0 reviews / Write a review
