  • 60 W LED Moving Head
  • 7 fixed gobos + open
  • 7 colours + white
  • Dimmer and strobe function
  • DMX and Master/Slave control

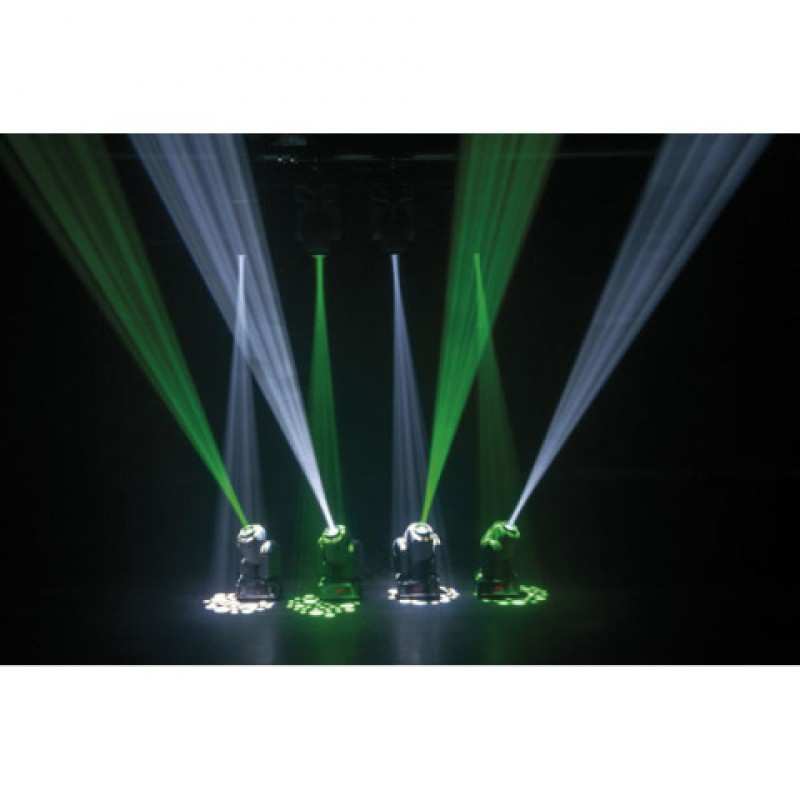

The Showtec Kanjo Spot 60 is an ultra-compact 60 watt LED Moving Head suitable for small indoor venues. Its 7 fixed gobos + open and 7 dichroic colours + white create nice optical effects and can be controlled via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode. Equipped with 0 - 100 % dimmer and 0 - 20 Hz strobe effects, the Kanjo Spot 60 has a 18° fixed beam angle and a manual focus for creating sharp-outlined projections. Its compact one-clamp-mount 3 kg design is ideal for quick rigging on stage.


Specifications


Source

Light Source Type   LED

Light Source Quantity   1

Light Source Power   60 W

Illuminance @ 5 m   656 lx

Luminous Flux (Total)    1640 lm

CCT    7500 K


Optical

Beam Angle Max. (Circular)   18 °

Zoom Type   Manual

Focus   Manual


Control and Programming

Control Mode   Auto, DMX, Master Slave, Sound

DMX Channels   8, 10

Protocols   DMX

Display   7-segment


Dynamic Effects

Dimmer    0-100 %

Strobe   0-20 Hz

Colour System    Colour Wheel

Colour Wheel Index & Rotate   Yes

Dichroic Colour Wheel 1    7 + Open

Gobo System   Metal

Gobo Wheel Index & Rotate    Yes

Gobo Wheel 1    7 + Open


Movement

Pan   540 °

Tilt   270 °

Pan/Tilt Resolution    16-bit


Electrical Specifications and Connections

Power Supply   100-240 V AC 50/60 Hz

Power Consumption   90 W

Fuse   3 A

Power Connector In   IEC

DMX Connector   XLR 3P In/Out

DMX Connector In   XLR 3P

DMX Connector Out    XLR 3P


Mechanical Specifications

Length (mm)   145 mm (5.709″)

Width (mm)    160 mm (6.299″)

Height (mm)    265 mm (10.433″)

Weight    3 kg (6.614 lb)

IP Rating   IP20 (indoor use only)

Housing   Plastic

Colour   Black


Product Properties

Cooling   Axial fan


Rigging

Mounting Options   Bracket

Safety Attachment   Yes

Safety Eyes    1


Thermal Specifications

Maximum Ambient Temperature    40 °C (104 °F)


Included Items

Included Cables   IEC cable

Included Rigging   Bracket
