• 160 W hybrid LED moving head

• 9 dichroic colours + white and 3-facet rotatable prism

• 2 gobo wheels with 7 rotating and 12 fixed gobos + open

• Motorised zoom from 3.8 to 15.8 degrees

• Frost and motorised focus

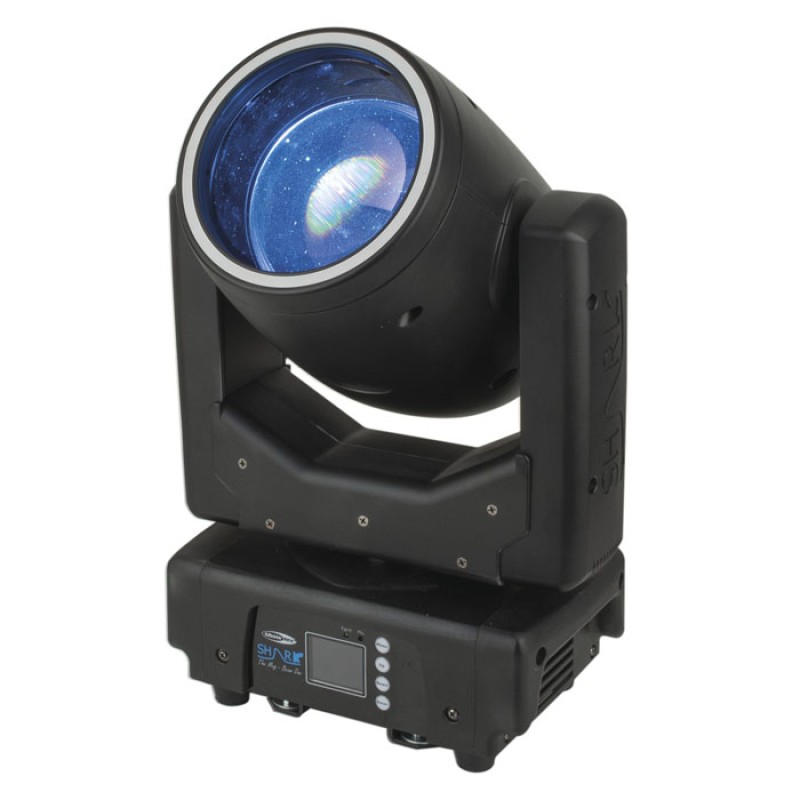

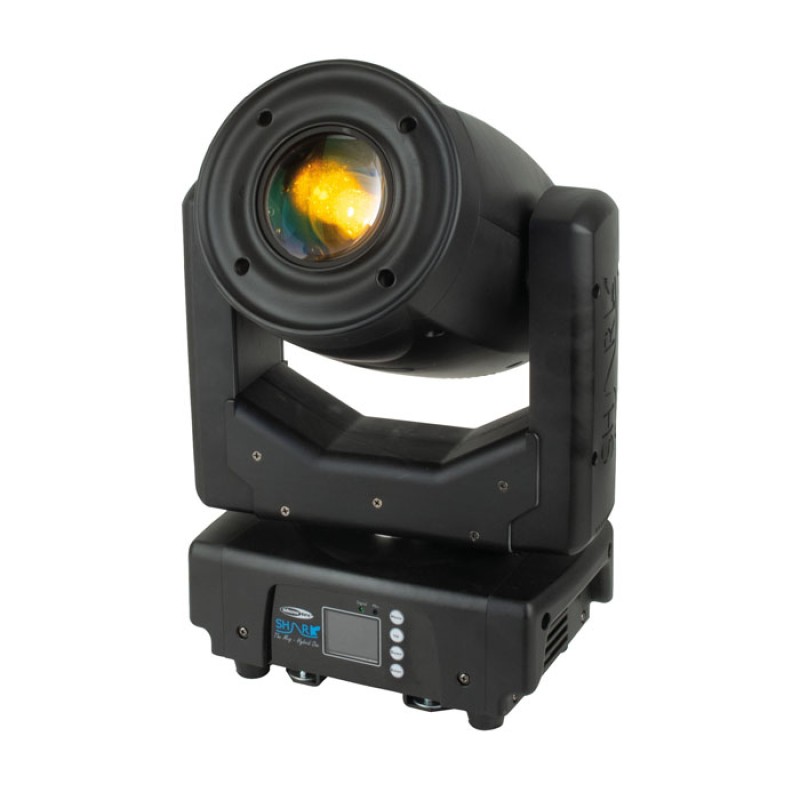

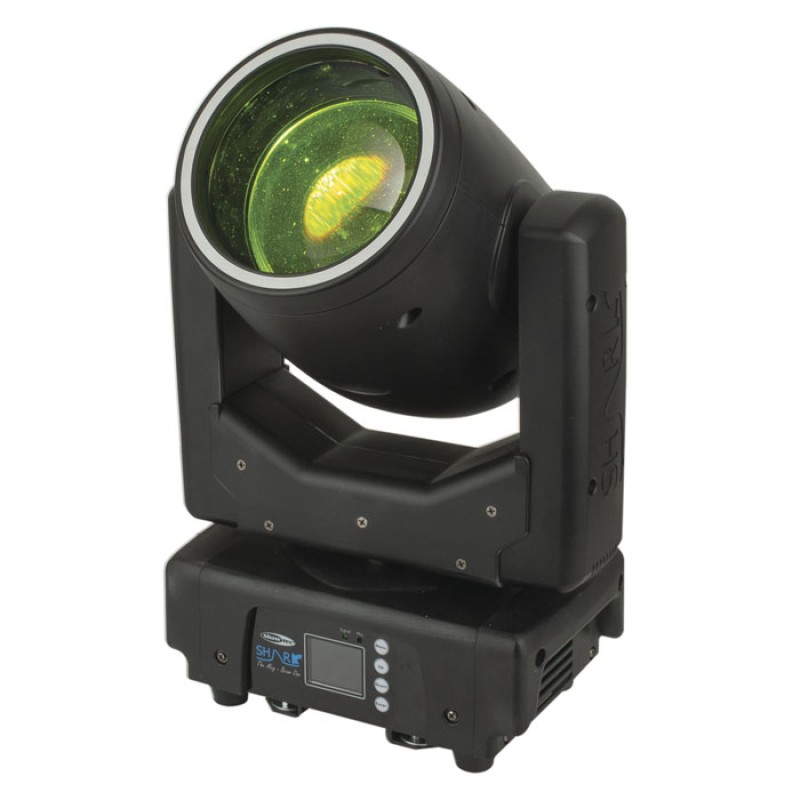

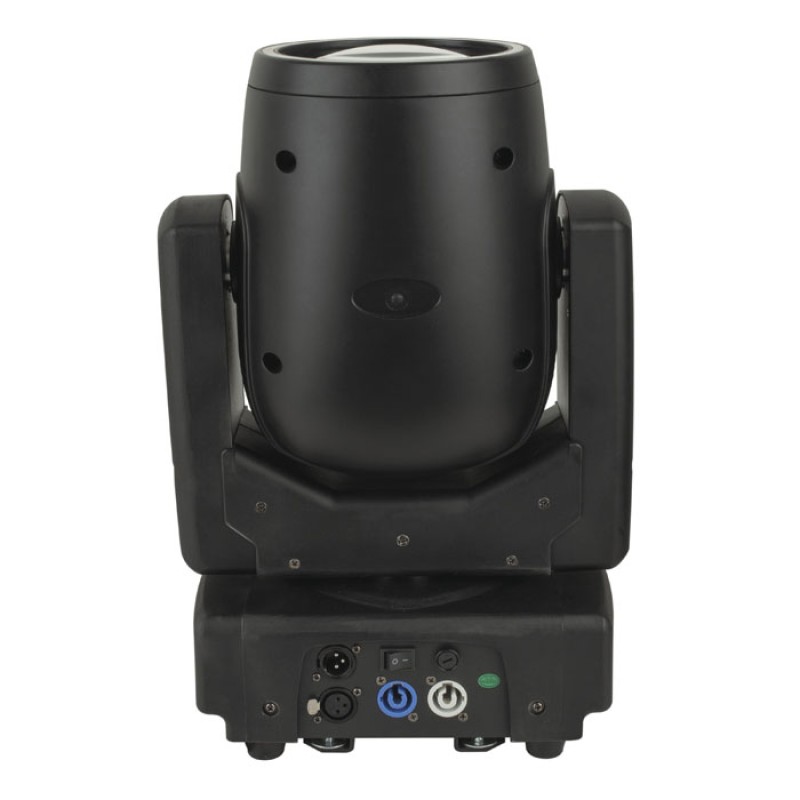

The Showtec Shark - The Meg - Hybrid One is a compact but powerful 160 watt LED hybrid moving head with a beam angle that can be adjusted from Beam to Spot to Wash (motorised zoom from 3.8 to 15.8 degrees). It is suitable for indoor applications and comes with a lot of impressive effects. It is equipped with a colour wheel with 9 dichroic colours plus open and it has two gobo wheels, one with 7 rotating gobos plus open, and one with 12 fixed gobos plus open. It has an indexed, rotatable 3-facet prism, and frost and motorised focus functions. The Shark - The Meg - Hybrid One can be controlled through DMX and has several built-in programs for stand-alone operation.

Specifications

Source
Light Source Type   LED
Light Source Quantity   1
Light Source Power   160 W
LED Colour Type    CW
Illuminance @ 2 m    175844 lx
Illuminance @ 3 m    78153 lx
Illuminance @ 5 m   28135 lx
Luminous Flux (Total)    3075 lm
CRI     73

Optical
Beam Angle Minimum (Circular)    3.8 °
Beam Angle Max. (Circular)    15.8 °
Zoom Type   Motorised
Zoom Ratio    1:5
Frost     Yes
Focus    Motorised

Control and Programming
Control Mode   Built-in Program, DMX
DMX Channels   8, 16, 18
Protocols    DMX
Display    TFT

Dynamic Effects
Dimmer    0-100 %
Strobe    0-20 Hz
Shutter   Yes
Prism 1    3-facet Circulair
Prism Index & Rotate   Yes
Colour System   Colour Wheel
Dichroic Colour Wheel 1   9 + Open
Gobo System   Glass + Metal
Gobo Wheel Index & Rotate   Yes
Gobo Wheel 1   7 + Open
Gobo Wheel 2   12 + Open
Gobo Size    14 mm (0.551″)
Image Diameter   9 mm (0.354″)

Movement
Pan   540 °
Tilt  270 °
Pan/Tilt Resolution   16-bit

Electrical Specifications and Connections
Power Supply   100-240 V AC 50/60 Hz
Power Consumption   200 W
Fuse   4 A
Power Connector In   Power Pro Blue
Power Connector Out  Power Pro Grey
DMX Connector    XLR 3P In/Out
DMX Connector In    XLR 3P
DMX Connector Out   XLR 3P

Mechanical Specifications
Length (mm)   165 mm (6.496″)
Width (mm)    283 mm (11.142″)
Height (mm)   435 mm (17.126″)
Weight    9.85 kg (21.716 lb)
IP Rating    IP20 (indoor use only)
Housing   Metal, PVC
Colour   Black

Product Properties
Cooling    Axial fan

Rigging
Mounting Options    Quick-Lock
Safety Attachment    Yes
Safety Eyes   1

Thermal Specifications
Maximum Ambient Temperature    45 °C (113 °F)

Included Items
Included Cables   Power Pro Cable
Included Rigging  Quick-Lock Bracket
