• 20 W Warm White COB LED ellipsoidal

• Suitable for theatrical and studio applications

• DMX dimmer function

• Silent operation

• Hard edge, precisely focused field of light

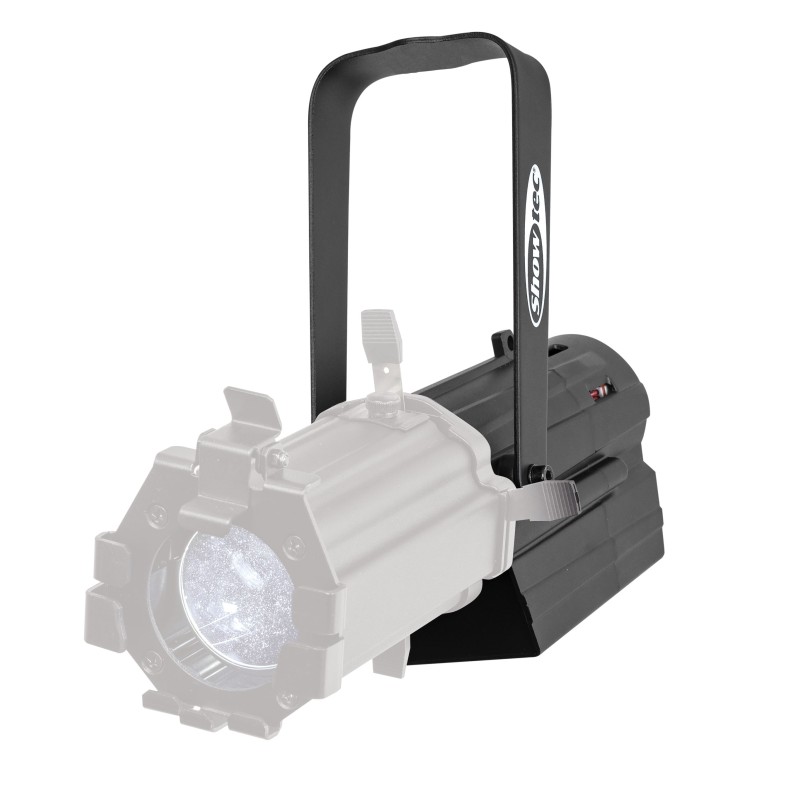

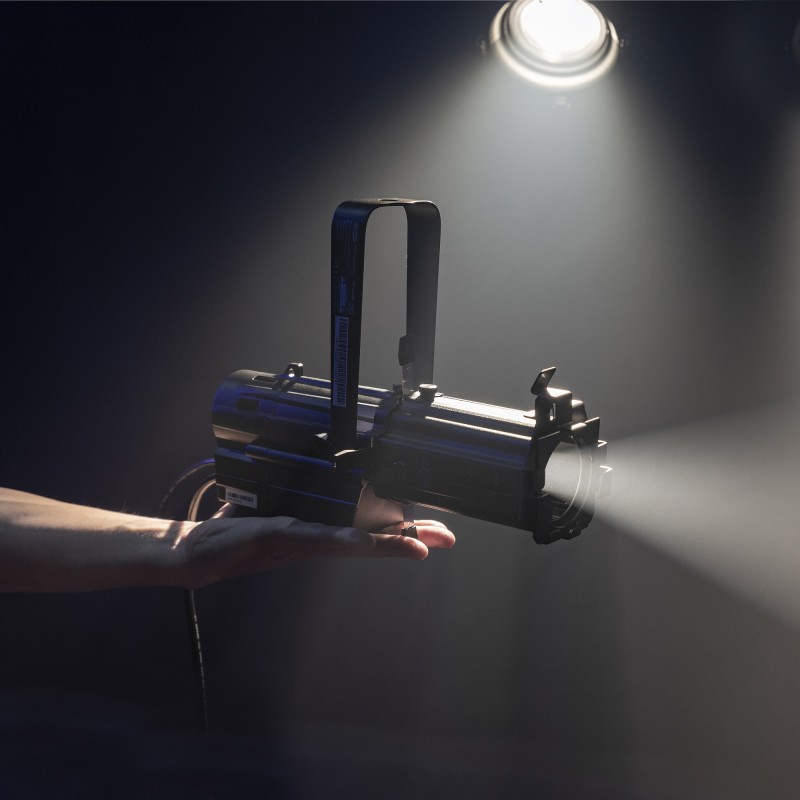

The Showtec Performer Profile Mini 3200 K is a 20 watt Warm White COB LED ellipsoidal with high CRI and silent operations, suitable for theatrical applications. It projects a hard-edge precisely focused light. The Performer Profile Mini 3200 K features a 0 - 100 % DMX dimmer function and has optional 19° - 36° fixed and zoom lenses and gobo holders for zooming, dimming and shaping the output to your desired projection.

Please note that a Shutter Barrel is needed for mounting the lens onto a Performer Profile Mini fixture.

Specifications

Source

Light Source Type                   LED

Light Source Quantity                  1

Light Source Power                    20 W

LED Colour Type                   WW

Drive Current                   0.5 A

Luminous Flux (Total)                   1500 lm

Maximum CCT                  3200 K

Control and Programming

Control Mode                     DMX

DMX Channels                   1

Protocols                 DMX, RDM

Dynamic Effects

Dimmer                  0-100 %

Electrical Specifications and Connections

Power Supply                  100-240 V AC 50/60 Hz

Power Consumption                   22 W

Power Connector In                   Internal Powerlink with custom power connector

DMX Connector                     XLR 3P In/Out

DMX Connector In                   XLR 3P

DMX Connector Out                   XLR 3P

Mechanical Specifications

Length (mm)                    345 mm (13.583″)

Width (mm)                 130 mm (5.118″)

Height (mm)                  231 mm (9.095″)

Weight                  1.3 kg (2.866 lb)

IP Rating                  IP20 (indoor use only)

Housing                  Aluminium die-cast

Colour                 Black

Product Properties

Cooling                Convection

Thermal Specifications

Maximum Ambient Temperature              70 °C (158 °F)

Maximum Surface Temperature                 50 °C (122 °F)

Minimum Operating Temperature            -10 °C (14 °F)

Included Items

Included Cables          Fixed Cable
