The Showtec NET-8/3 and NET-8/5 nodes are cutting-edge network routing devices which convert Art-Net to DMX512 and back. A maximum of 4096 channels can be transported over a single CAT5. This makes the NET-8/x suitable for small to large scale events. The NET-8/x embeds a built-in network switch to allow it to be used as a Ethernet repeater as well as 8 isolated DMX512 universes which can be used as a input or output. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.

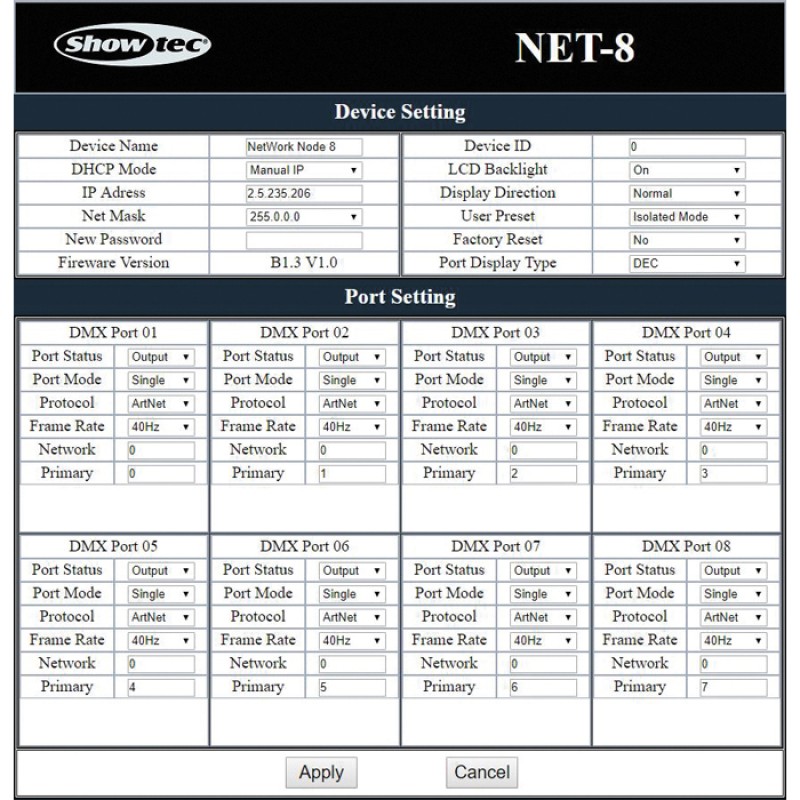

Settings can also be arranged via the webbrowser possibility, which gives you (remote) access through your computer or laptop and your network. Default login account: Admin, password: Admin.
Specifications:
Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 20 W
Power Connector In Power Pro Blue
DMX Connector XLR 5P Out
DMX Connector In XLR 5P
DMX Connector Out XLR 5P
Data Connector In etherCON
Data Connector Out etherCON
Mechanical Specifications
Length (mm) 483 mm (19.016″)
Width (mm) 143 mm (5.63″)
Height (mm) 46 mm (1.811″)
Installation Depth (Excl. Connector) 143 mm (5.63″)
