• 512 channel DMX console

• 10.1" touchscreen with Fixture View and Quick Colour Picker

• Multicolour indicator LEDs and 4 encoder wheels with 1.3" display

• Complete built-in effects engine for easy control

• Second (touch)screen possibility

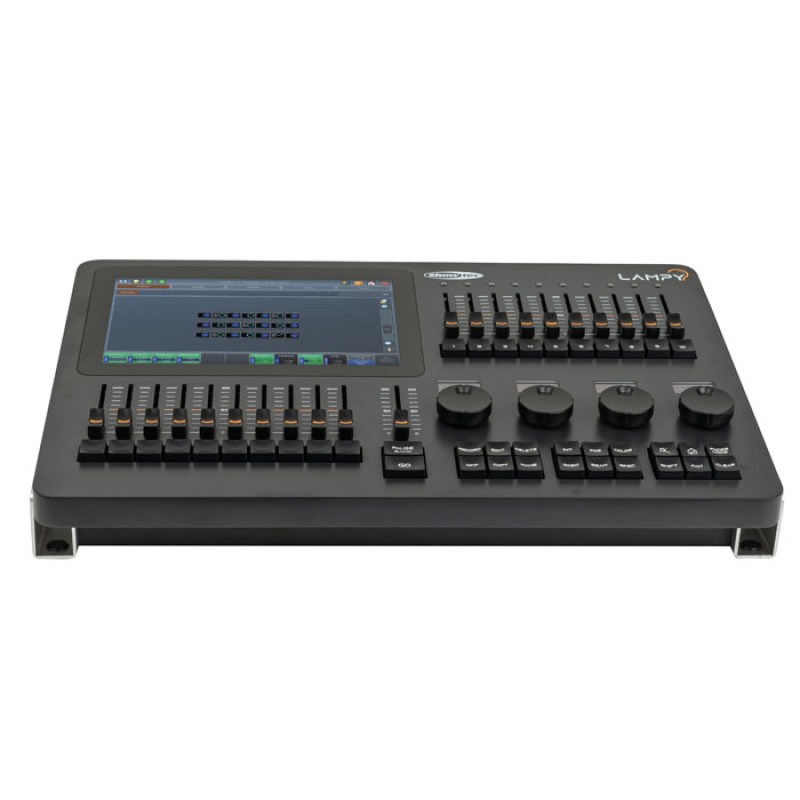

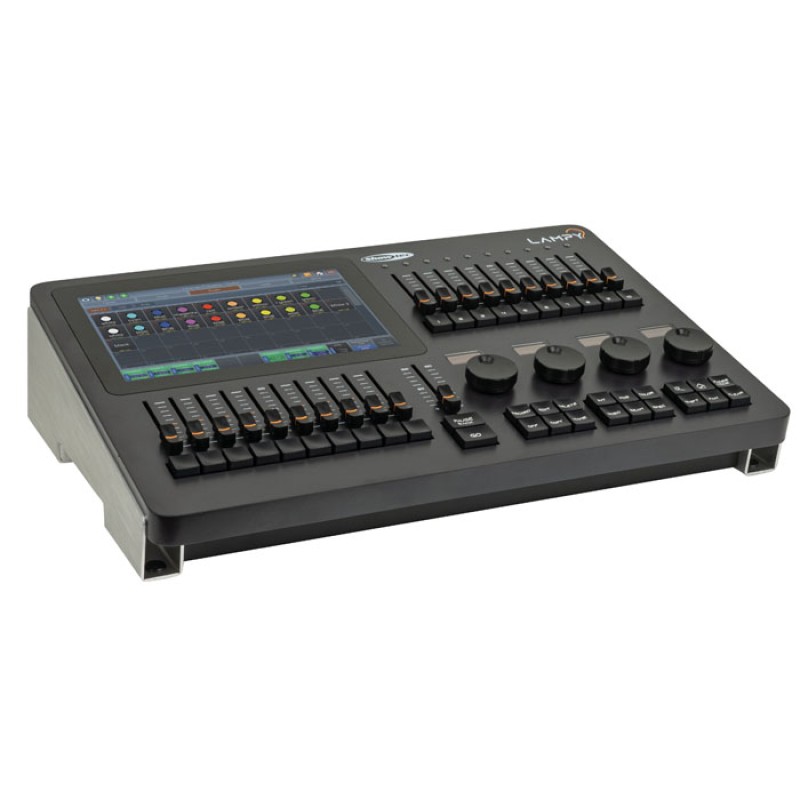

The Showtec Lampy 20 1U is a fully featured 512 channel DMX console with state-of-the-art look and feel, suitable for various venues. Its industrial, floating design, with 10.1” touchscreen and multicolour indicator LEDs, enable a quick and clear workflow in an utmost intuitive manner. Arranging existing elements is now easier than ever before with customizable workspaces and Fixture View for a clear virtual stage layout with easy pick, drag and drop control. You can also easily pick any colour you’d like and control every moving light precisely to your desired outcome in no time.

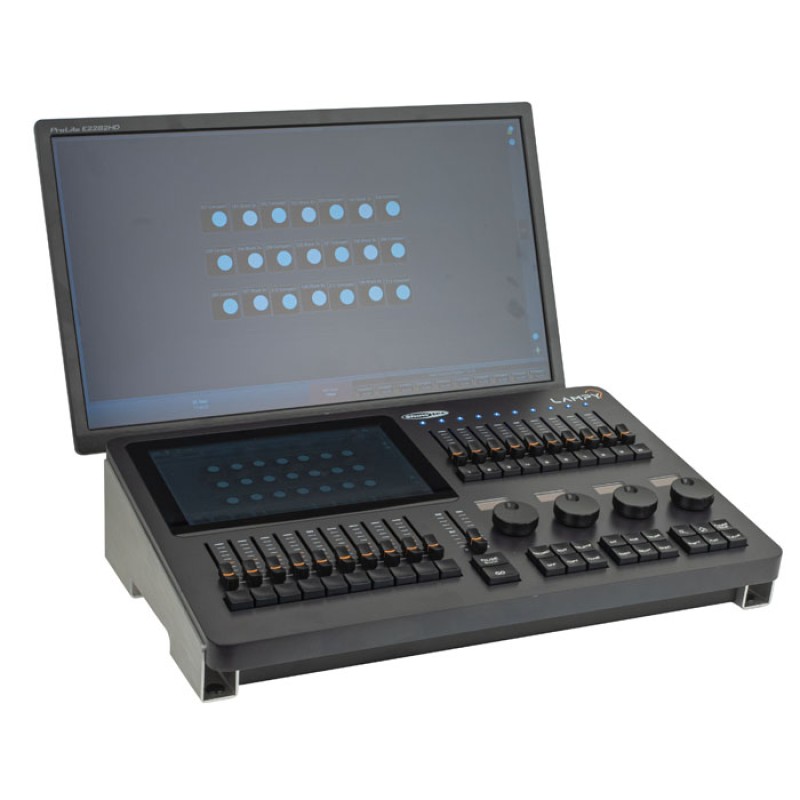

The Lampy 20 1U enables you to add an external (touch)screen and also to take full mobile control over your fixtures via an iPad or tablet, since it is OSC compatible. You can easily create any complicated and stunning show effect with its complete built-in effect engine. Unlike most comparable DMX consoles, the Lampy 20 1U has no less than four encoder wheels with 1.3" OLED display for visual function information.

LAMPY consoles utilise the Atlabase library which offers more than 21,000 fixture files to choose from.

You can extend its software capabilities to two universes by adding an optional Showtec Lampy Dongle. It doubles its DMX channels up to 1024, enables Art-Net, sACN and provide access to all external monitor features.

If 10 multifunction faders and 10 playback faders with cue buttons are not sufficient for your practice, we recommend to check out our Lampy 40 with 20 additional multifunction faders while using the same 9 memory pages for sufficient storage space.

Specifications

Battery
Battery Type             CR2032
Battery Voltage              3 V
Capacity            0.21 Ah

Control and Programming
Control Mode         DMX, MIDI
DMX Channels                      512
Patch mode                    Yes
Display                        LCD, Touch
Display Size                          10.1 "
External Display                            Yes
External Display Resolution (Horizontal)                          1920
External Display Resolution (Vertical)                    1080
Fixtures                   512
Buttons                   40
Cue Lists                   90
Display Encoders                 4
Display Encoder Type                      OLED
Encoder Wheels                    4
Faders                   21
OSC (Open Sound Control)                     Yes
Playback Buttons                      20
Playback Faders                  20
Playback Pages                  9
sACN                 Optional
Art-Net                 Optional
Effects Engine                Yes
Universes                  1

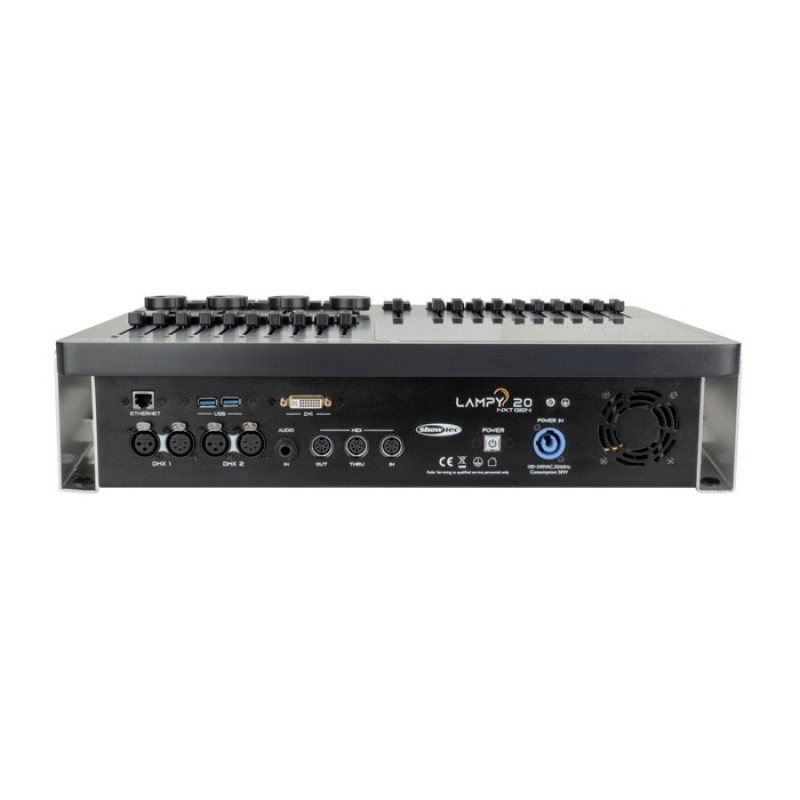

Electrical Specifications and Connections
Power Supply                 100-240 V AC 50/60 Hz
Power Consumption                  50 W
Power Connector In                     Power Pro Blue
DMX Connector Out                    XLR 3P, XLR 5P
Data Connector In                      RJ45, USB
Data Connector Out                    RJ45, USB
MIDI Connector                  Yes
Ethernet Ports                1
Audio Triggers                  3

Mechanical Specifications
Length (mm)                    505 mm (19.882″)
Width (mm)                     345 mm (13.583″)
Height (mm)                     128 mm (5.039″)
Weight                       8.8 kg (19.401 lb)
IP Rating                      IP20 (indoor use only)
Housing                    Metal, Plastic
Colour                  Black

Product Properties
Cooling                      Convection
LED Indicators               Operation mode, Output level, Output Level Mimic
Desk Light                  Built-in Worklight

Thermal Specifications
Maximum Ambient Temperature                    40 °C (104 °F)
Included Items
Included Cables                 Power Pro Cable
