• 1000 W heater

• 42 ml/min

• Manual, DMX and Remote control

• LCD display

• Robust, modern design

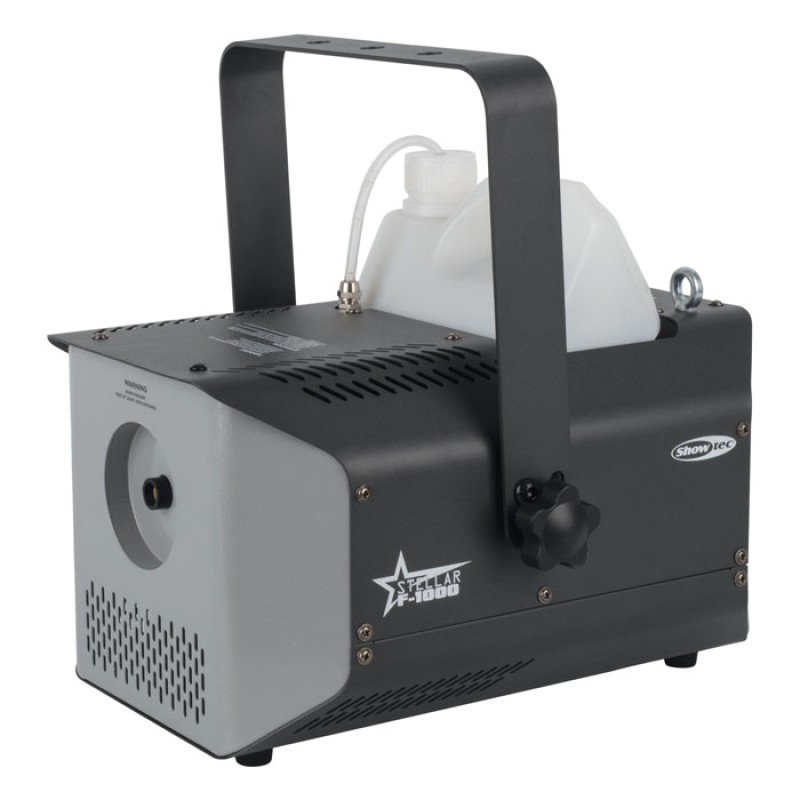

The Stellar F-1000 is a compact fog machine with a robust, modern design. It has a 1000-watt heater and is ready to pump out fog within 3 minutes of turning it on. A clear LCD display aids manual control and other control options include DMX and an optional remote control. For best results, we recommend using Showgear fog fluid and why not add a delightful scent too?

Specifications

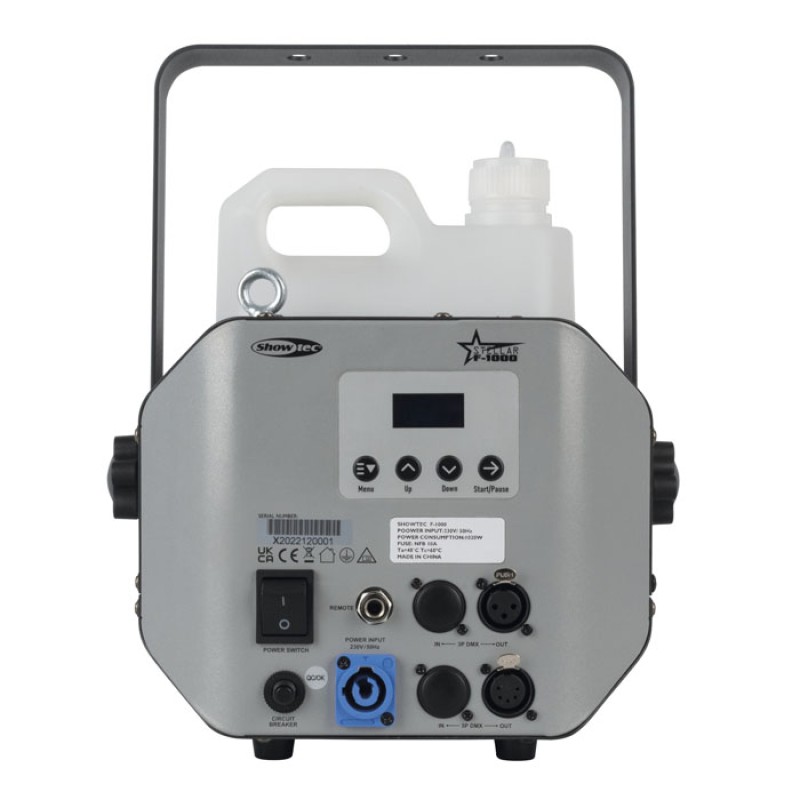

Electrical Specifications and Connections

Power Supply           220-240 V AC 50 Hz

Power Consumption           1020 W

Power Connector In               Power Pro Blue

DMX Connector                XLR 3P In/Out, XLR 5P In/Out

DMX Connector In                  XLR 3P, XLR 5P

DMX Connector Out              XLR 3P, XLR 5P

Remote Connector                    Jack

Heater            1000 W

Warm-up Time                3 min

Mechanical Specifications

Output Capacity              200 m³/min (7062.9 ft³/min)

Output Direction               Forward

Housing              Metal

Colour               Dark Gray, Silver

Fluid Consumption               42 ml/min (1.42 oz/min)

Fluid Tank Capacity             3 L

Length (mm)             348 mm (13.701″)

Height (mm)             337 mm (13.268″)

Width (mm)             291 mm (11.457″)

Weight               7 kg (15.432 lb)

IP Rating             IP20 (indoor use only)

Control and Programming

Control Mode                DMX, Local Control, Remote

DMX Channels              1

Display            LCD

Product Properties

Cooling              Convection

Rigging

Mounting Options              Bracket

Safety Attachment              Yes

Thermal Specifications

Maximum Ambient Temperature           40 °C (104 °F)

Maximum Surface Temperature          60 °C (140 °F)

Included Items

Included Cables           Power Pro Cable
