• Plug & play backdrop drop system

• 20 kg load capacity

• powerCON input & output

• Roadproof housing

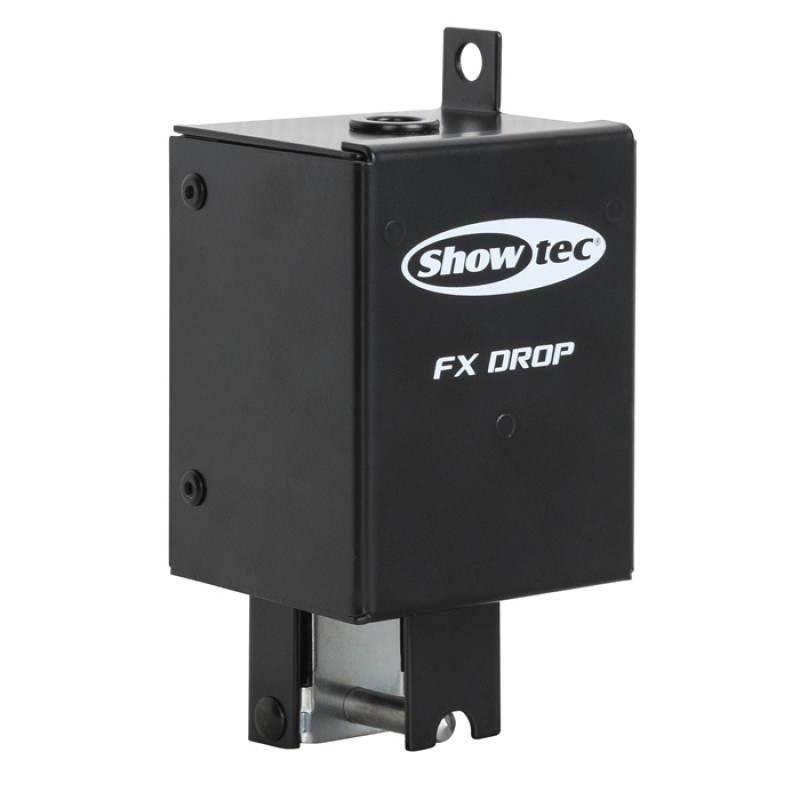

The Showtec FX Drop is a plug-and-play textile drop tool. It is very easy to use, once the FX drop is powered it will release the hook. The load capacity is 20 kg and designed with a road proof housing. The powerCON in-and output make it easy to daisychain multiple FX drops. Create a stunning opening with the Showtec FX Drop.

Specifications

Electrical Specifications and Connections
Power Supply   240 V AC 50/60 Hz
Power Consumption   30 W
Power Connector In   powerCON Blue

Mechanical Specifications
Maximum Load   20 kg (44.092 lb)
Length (mm)   77 mm (3.032″)
Height (mm)   140 mm (5.512″)
Width (mm)   70 mm (2.756″)
Weight   1 kg (2.205 lb)
IP Rating   IP20 (indoor use only)
Housing   Metal
Colour   Black

Rigging
Mounting Options   Clamp, Quick-Lock
Safety Attachment   Yes

Included Items
Included Rigging   Rigging Eye
