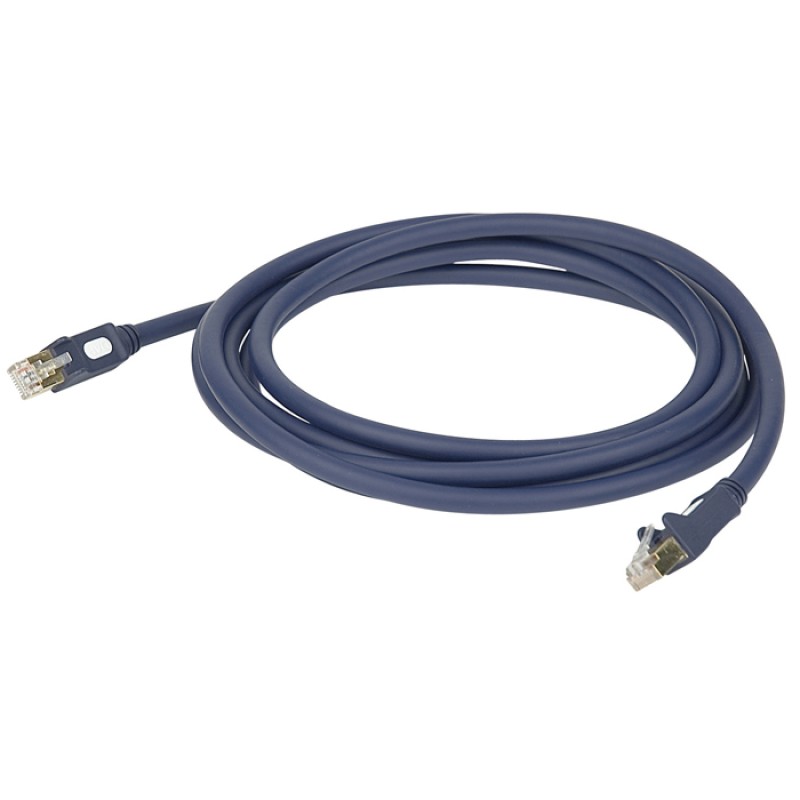

• Ethernet

• 7.6 mm Matte blue PVC

• Flexible cable

Category 5 cable, commonly known as Cat 5, is an unshielded twisted pair cable type designed for high signal integrity. This type of cable is often used in structured cabling for computer networks such as Ethernet, although it is also used to carry many other signals such as basic voice services, token ring, and ATM (at up to 155 MBit/s, over short distances). Category 5 cable includes four twisted pairs in a single cable jacket. It is most commonly used for 100 Mbps networks, such as 100BASE-TX Ethernet, although IEEE 802.3 Ab defines standards for 1000BASE-T - Gigabit Ethernet over category 5 cable. Cat 5 cable typically has three twists per inch of each twisted pair of 24 gauge copper wires within the cable.

Specifications

Mechanical Specifications

Weight           0.122 kg (0.269 lb)

IP Rating              IP20 (indoor use only)

Material              PVC

Colour               Blue

Electrical Specifications and Connections

Data Connector In              RJ45

Data Connector Out               RJ45

Cable Length           3 m

Cable Type           Cat5

Pins            8

Maximum Wire Size AWG            24 AWG

Outer Cable Diameter           7.6 mm (0.299″)

Product Properties

Conductors             8

Conductor Construction              Solid Core

Thermal Specifications

Maximum Ambient Temperature                50 °C (122 °F)

Minimum Ambient Temperature               -20 °C (-4 °F)
