• Compact, powerful 150 W Beam Moving Head

• Motorised frost filter and focus

• 16-facet circular rotating prism

• 17 fixed gobos + open

• 14 colours + white

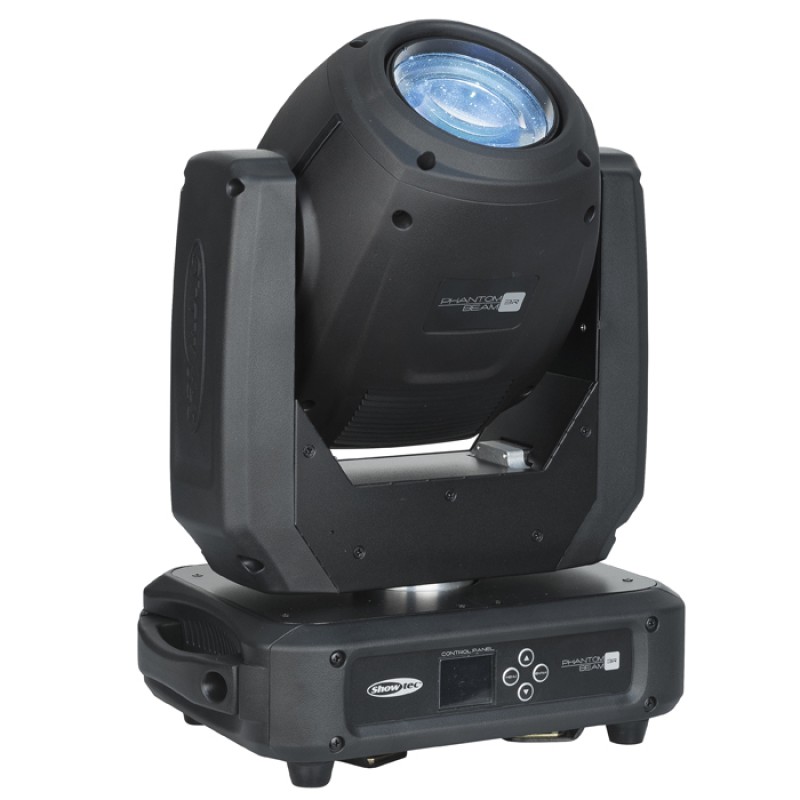

The Showtec Phantom 3R Beam is a compact, yet powerful Beam Moving Head with a bright 150 watt discharge light engine providing a highly focused 3.5° beam angle, suitable for indoor venues. Its motorised frost filter and focus converts the tight beam to a wide wash for covering large areas, suitable for various applications. The Phantom 3R Beam is equipped with 17 gobos + open, 14 colours + white, 16-facet circular rotating prism and various colour effects, such as split colours and rainbow flow, for creating stunning optical effects. Optionally, you can upgrade the Phantom 3R Beam for wireless DMX communications.

Specifications

Source
Light Source Type    Discharge
Light Source Quantity    1
Light Source Power    150 W
Life Expectancy    6000 h
Luminous Flux (Total)    9200 lm
CCT    8600 K

Optical
Beam Angle Max. (Circular)    3.5 °
Frost    Yes
Focus    Motorised

Control and Programming
Control Mode    Auto, DMX, Manual, Master Slave, Sound
DMX Channels    10, 14
Protocols    DMX
Wireless   Optional
Display   LCD

Dynamic Effects
Dimmer    0-100 %
Strobe    0-20 Hz
Shutter    Yes
Prism 1   16-facte Circulair
Prism Index & Rotate    Yes
Colour System    Colour Wheel
Colour Wheel Index & Rotate   Yes

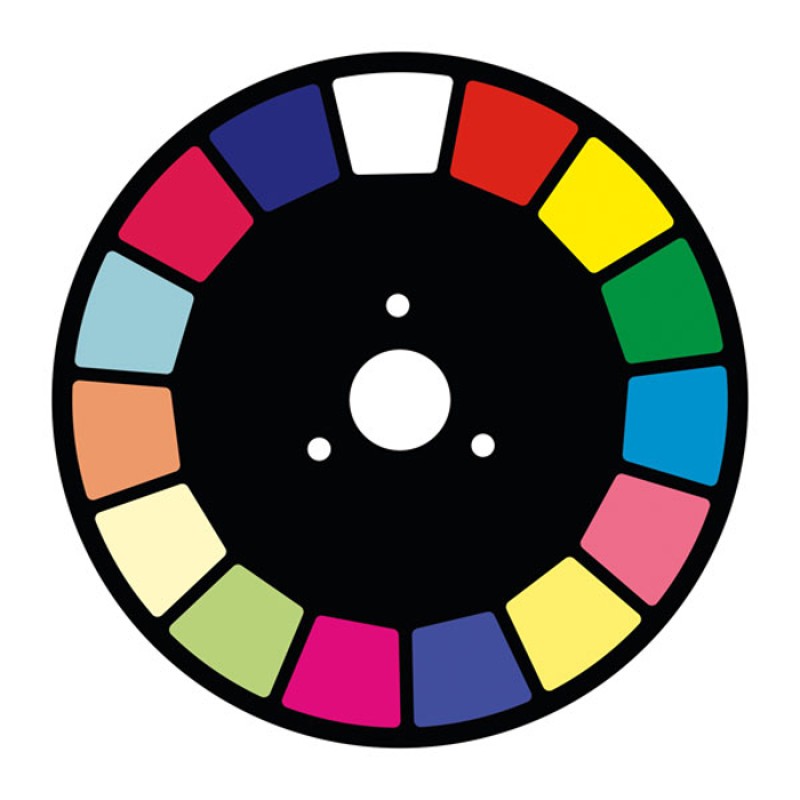

Dichroic Colour Wheel 1   14 + Open
Gobo System   Metal
Gobo Wheel Index & Rotate   Yes

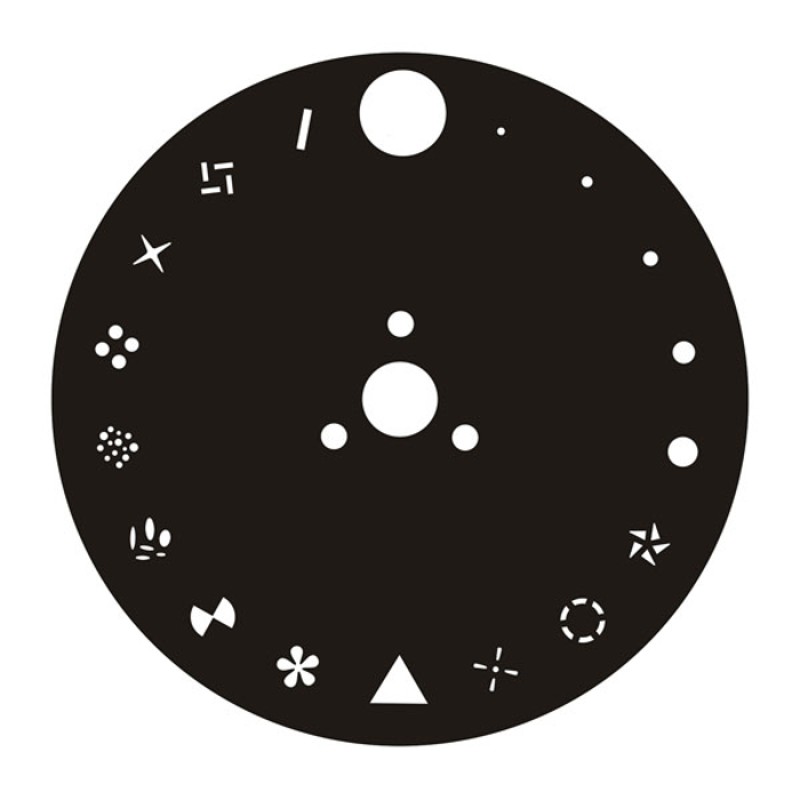

Gobo Wheel 1    17 + Open

Movement
Pan   540 °
Tilt   270 °
Pan/Tilt Resolution    16-bit

Electrical Specifications and Connections
Power Supply    100-240 V AC 50/60 Hz
Power Consumption   255 W
Fuse   4 A

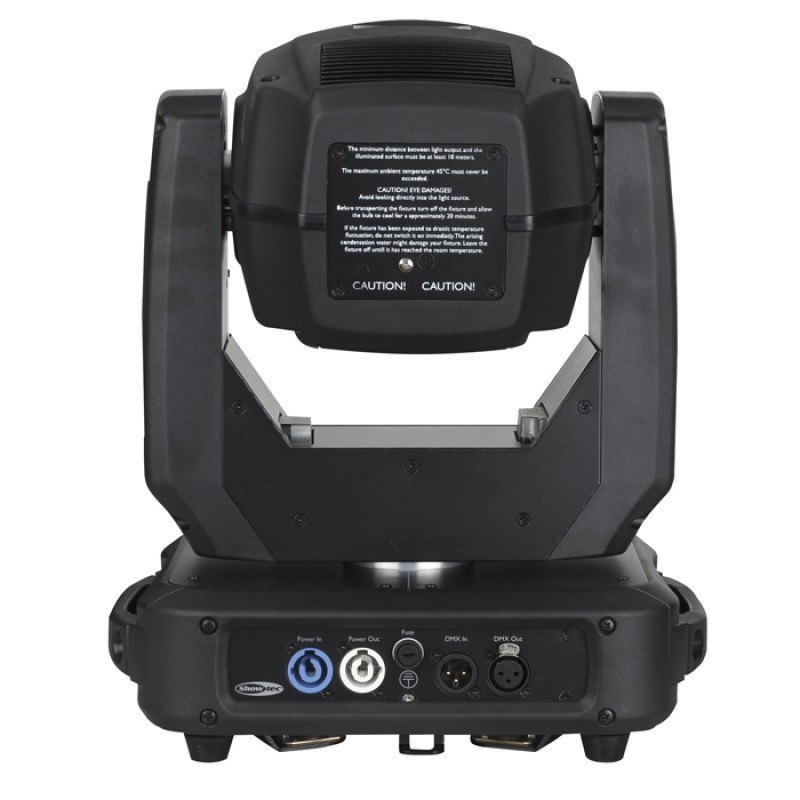

Power Connector In     Power Pro Blue
Power Connector Out    Power Pro Grey
DMX Connector    XLR 3P In/Out
DMX Connector In    XLR 3P
DMX Connector Out   XLR 3P

Mechanical Specifications
Length (mm)    325 mm (12.795″)
Width (mm)   210 mm (8.268″)
Height (mm)   420 mm (16.535″)
Weight    13 kg (28.66 lb)
IP Rating   IP20 (indoor use only)
Housing   Metal, Plastic
Colour    Black

Product Properties
Cooling    Axial fan

Rigging
Mounting Options    Quick-Lock
Safety Attachment   Yes

Thermal Specifications
Maximum Ambient Temperature    40 °C (104 °F)
Maximum Surface Temperature    70 °C (158 °F)
Minimum Distance to Objects    10 m (32.808 ft)

Included Items
Included Cables   powerCON cable
Included Rigging  Quick-Lock Bracket
