• 5x 1000BASE-T RJ45 ports

• 4x PoE (IEEE 802.3 At) + outputs

• Completely silent, no fans

• O-LED display for status check

• Connect up to 4 x Net-2 Pocket to create 8 Universes Network

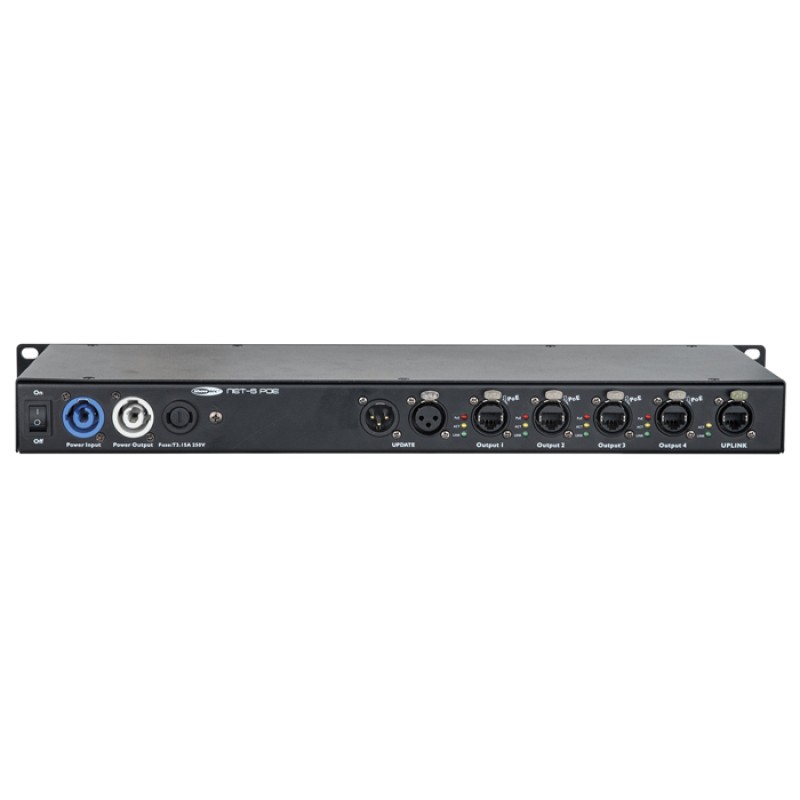

The Showtec NET-5 PoE is an power source equipment (PSE) that provides power over the ethernet cable. Also known as endspan or endpoint ethernet switch. Offering 5 x 1000BASE-T Ethernet connectors with 4x PoE. The NET-5 includes power over ethernet transmission for maximum 4 power devices (PD’s) with maximum power drain of 25 W according to IEEE802.3 Af and IEEE802.3 At.

Specifications

Electrical Specifications and Connections

Power Supply   100-240 V AC 50/60 Hz

Power over Ethernet (PoE)    Yes

Power Consumption   100 W

Power Connector In   Power Pro Blue

Data Connector In   etherCON

Data Connector Out    etherCON

Control and Programming

Control Mode   TCP IPv4

Protocols   TCP-IPv4

Display    OLED

Mechanical Specifications

Length (mm)   483 mm (19.016″)

Width (mm)   137 mm (5.394″)

Height (mm)    46 mm (1.811″)

Installation Depth (Excl. Connector)    137 mm (5.394″)

Weight   1.2 kg (2.646 lb)

Rack Units    1 U

IP Rating   IP20 (indoor use only)

Housing   Metal, Plastic

Colour    Black

Product Properties

LED Indicators   Operation mode, Power, Signal

Thermal Specifications

Maximum Ambient Temperature    40 °C (104 °F)

Included Items

Included Cables    Power Pro Cable
