• Remote control for SC-5.2 Source Control

• Auxiliary audio input for line/phone sources (summed mono)

• Connects via standard shielded CAT5 or higher cable

• Fits in a standard square wall box (ABB Hafobox 190, Gira 2896 00, etc.)

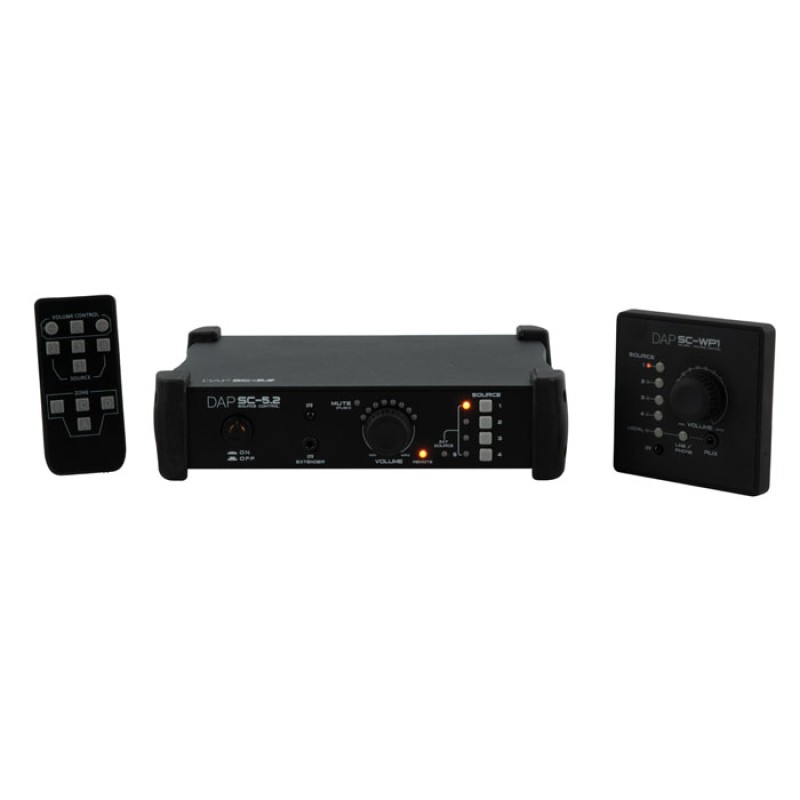

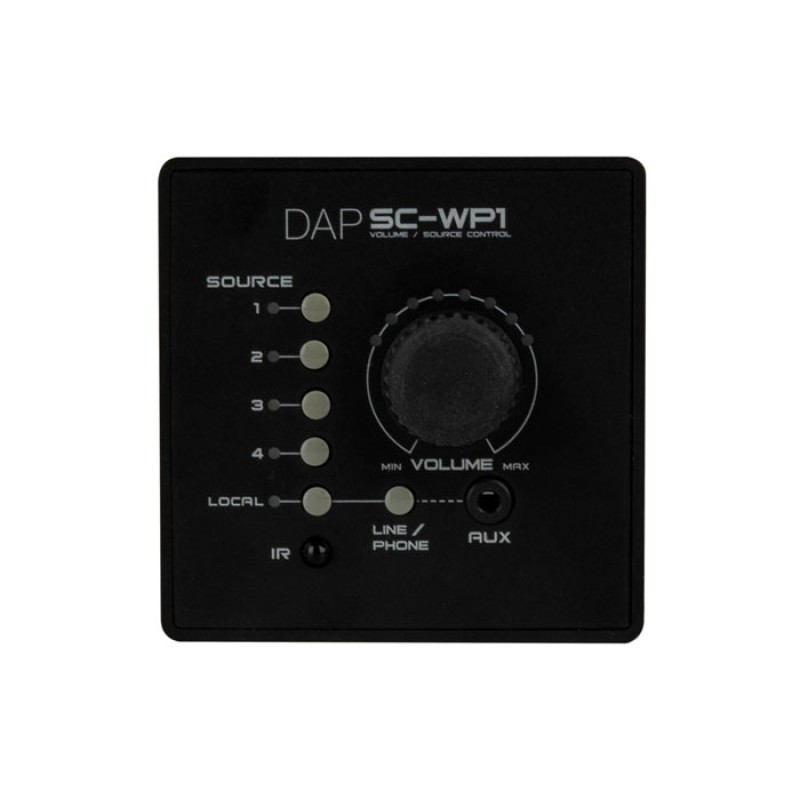

The DAP SC-WP1 is a wall panel remote control for the DAP SC-5.2 Source Control. The rotary encoder controls the volume and the tactile switches allow you to select the input source. The SC-WP1 provides an additional line or phone input via a 3.5 mm jack, which is passed through to the SC-5.2 in mono. It has an IR sensor and acts as a relay for remote control signals from the SC-5.2 remote control.

The SC-WP1 can be installed in a standard square wall box and connects to the SC-5.2 via an RJ45 port and a standard shielded CAT5 or CAT6 cable. The SC-WP1 is available in black or white.

Specifications

Inputs

Stereo Inputs                 1

Stereo Input Connector                  TRS balanced 3.5 mm

Mechanical Specifications

Height (mm)                  40 mm (1.575″)

Width (mm)                    84 mm (3.307″)

Length (mm)                 84 mm (3.307″)

Housing                  Plastic

Colour                 Black

Weight                 0.075 kg (0.165 lb)

IP Rating                 IP20 (indoor use only)

Product Properties

LED Indicators              Channel select, Output level

Thermal Specifications

Minimum Ambient Temperature           40 °C (104 °F)
