• 40x 10 W RGBW LED Washer

• IP65 (dust and water resistant, fit for outdoor use)

• 10° beam angle

• Optional beam shapers for widening beam angle

• 5-section control

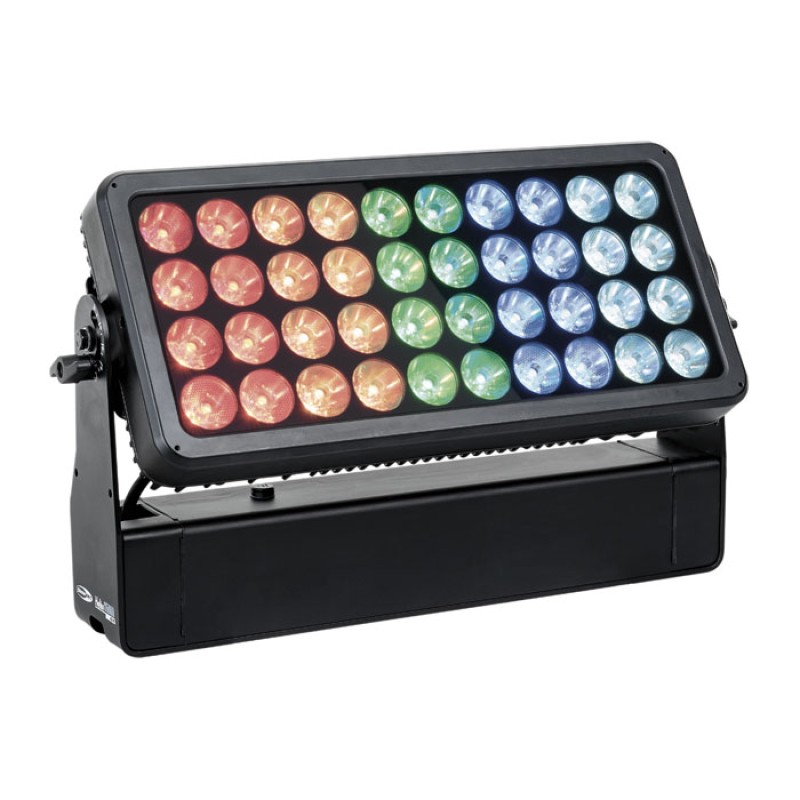

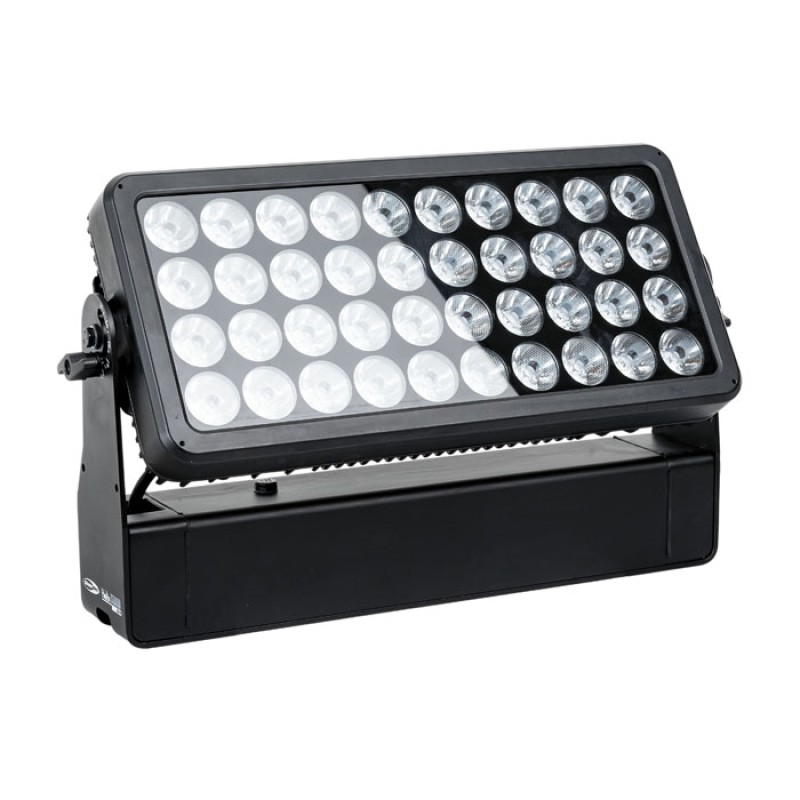

The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.

Specifications

Source

Light Source Type                 LED

Light Source Quantity                      40

Light Source Power                    10 W

LED Colour Type                       RGBW

Refresh Rate                     3000 Hz

Illuminance @ 2 m                54000 lx

Luminous Flux (Total)                       14560 lm

Optical

Beam Angle (Horizontal)                   10 °

Beam Angle (Vertical)                    10 °

Wireless Specifications

Wireless Mode              G3, G4, CRMX

Reaction Time        8 ms

Control and Programming

Control Mode                 Auto, Built-in Program, DMX, Master Slave

DMX Channels                 4, 6, 8, 20, 24

Protocols                     DMX, RDM

Wireless                   LumenRadio

Display                   OLED, Touch

Fan mode               Yes

Dim Curve                    Linear, Square, I-Square, S-Curve

Dynamic Effects

Dimmer                  0-100 %

Strobe                    0-20 Hz

Electrical Specifications and Connections

Power Supply                  100-240 V AC 50/60 Hz

Power Consumption M                   415 W

Power Connector In                      powerCON TRUE1 TOP

Power Connector Out                   powerCON TRUE1 TOP

DMX Connector                    Dedicated 5P IP65 In/Out

DMX Connector In                    XLR 5P

DMX Connector Out                 XLR 5P

Cable Length                 1.5 m

Mechanical Specifications

Width (mm)             530 mm (20.866″)

Height (mm)             330 mm (12.992″)

Depth (mm)                 125 mm (4.921″)

Weight                    11.5 kg (25.353 lb)

IP Rating                     IP65

Housing                    Aluminium die-cast

Colour                    Black

Product Properties

Cooling                 Convection/Axial fan

Rigging

Mounting Options            Baseplate, Clamp, Quick-Lock

Safety Attachment                   Yes

Thermal Specifications

Maximum Ambient Temperature                  40 °C (104 °F)

Maximum Surface Temperature                  60 °C (140 °F)

Minimum Operating Temperature                 -10 °C (14 °F)

Included Items

Included Cables              powerCON TRUE1 cable

Included Accessories               Mounting panel, Rubber feet

Included Rigging            Quick-Lock Bracket
