• 40 individually controllable RGB LEDs

• For use with IP Pixel Controller

• IP65 (dust and water resistant, suitable for temporary outdoor use)

• Easy (3D) configuration with alignment plates

• Easy to install with a single combined power/data cable

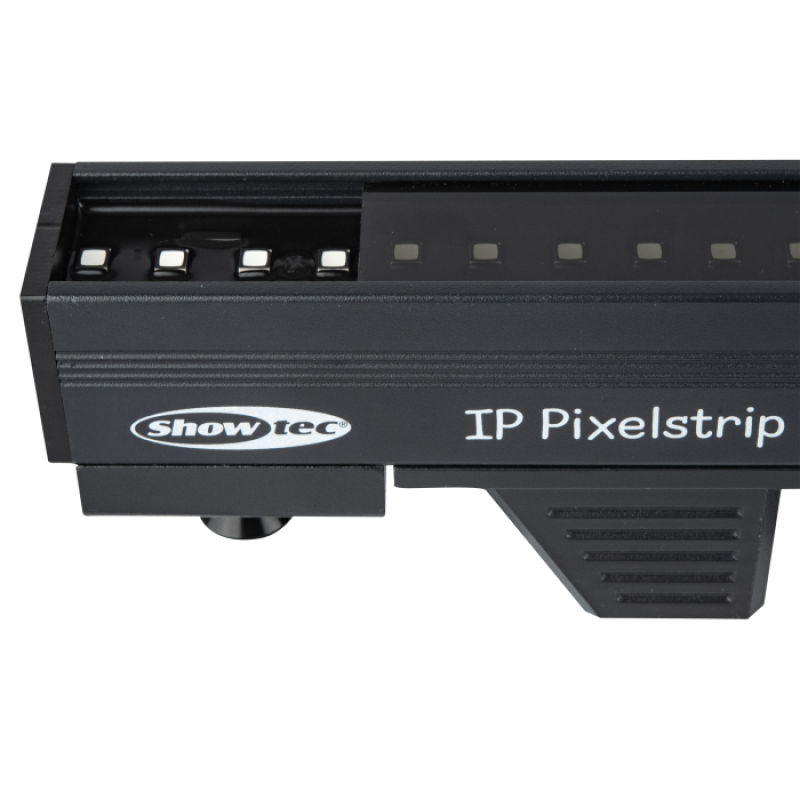

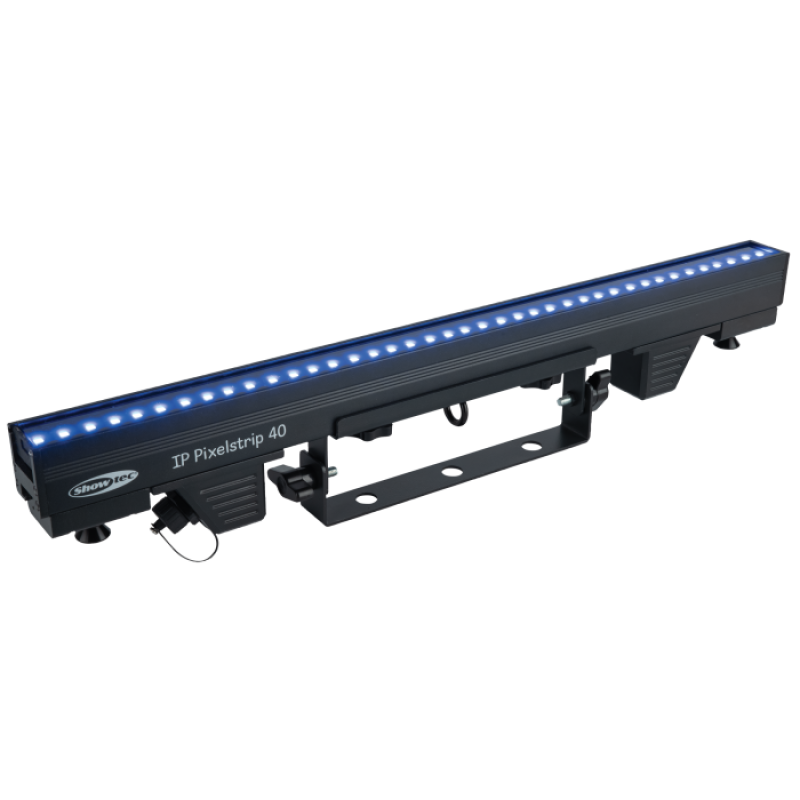

The Showtec IP Pixelstrip 40 is a high-brightness LED bar with pixel control. Each of the 40 RGB LEDs can be controlled individually by the dedicated Showtec IP Pixel Controller. It has an IP65-rated enclosure with fanless convection cooling, making it suitable for indoor as well as (temporary) outdoor stage applications.

The short and fixed combined data/power input cable allows the IP Pixelstrip 40 to be daisy-chained and mixed with the IP Pixelstrip 80 up to a total length of 4 metres per controller output. Dedicated cables run from the controller to the IP Pixelstrip for power and data signals (sold separately). A straight alignment plate is included and locks into place without tools. Optional alignment plates allow for more complex configurations, even 3D setups. A standard smoked black flat cover is included and can be easily replaced by an optional white flat cover, white dome-shaped cover or white rectangular cover.

Please note that stand-alone or direct DMX operation is not possible; the Showtec IP Pixel Controller is required to drive this LED pixel bar.

Specifications

Source

Light Source Type                LED

Light Source Quantity                40

Refresh Rate                  16000 Hz

Optical

Pixel Pitch                 12.5 mm (0.492″)

Dynamic Effects

Dimmer                 0-100 %

Strobe                  0-20 Hz

Electrical Specifications and Connections

Power Supply                48 V DC

Power Consumption             16 W

Power Connector In                Dedicated IP65 Powerconnection

Power Connector Out                    Dedicated IP65 Powerconnection

Mechanical Specifications

Height (mm)                    95 mm (3.74″)

Width (mm)                    35 mm (1.378″)

Length (mm)                   504 mm (19.843″)

Weight                  1.6 kg (3.527 lb)

IP Rating                 IP65

Housing               Aluminium

Colour               Black

Product Properties

Cooling             Passive

Rigging

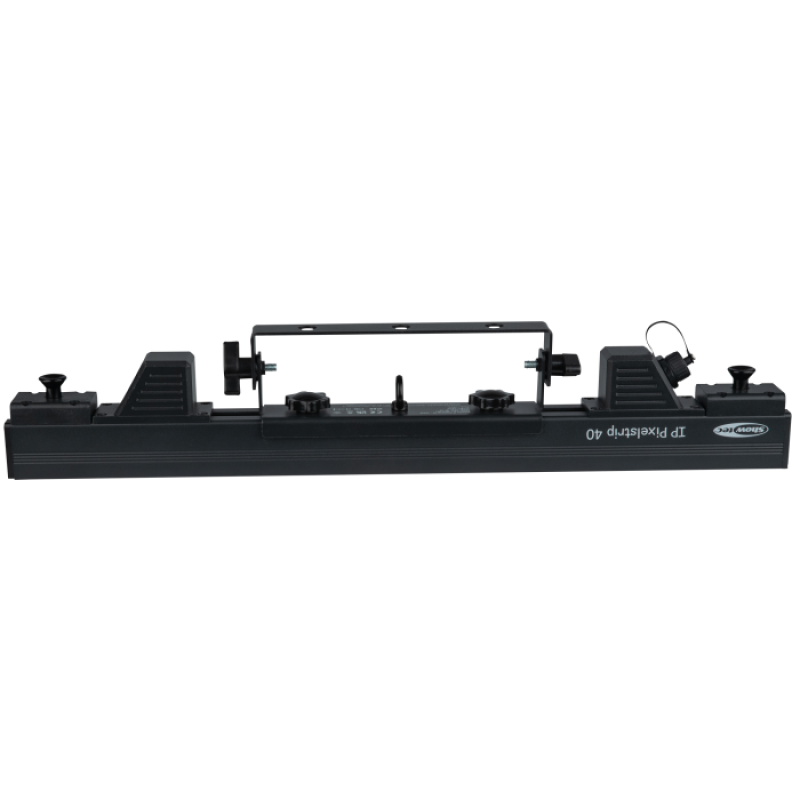

Mounting Options             Bracket

Safety Attachment          Yes

Thermal Specifications

Maximum Ambient Temperature               40 °C (104 °F)

Minimum Ambient Temperature               -5 °C (23 °F)

Included Items

Included Cables            Fixed Cable

Included Accessories             Cover

Included Rigging            Straight alignment plate
