• Controls up to 16 m IP Pixelstrip 40/80

• Art-Net, Kling-Net, sACN, DMX/RDM, Master Slave and Manual modes

• IP65-rated enclosure

• OLED display

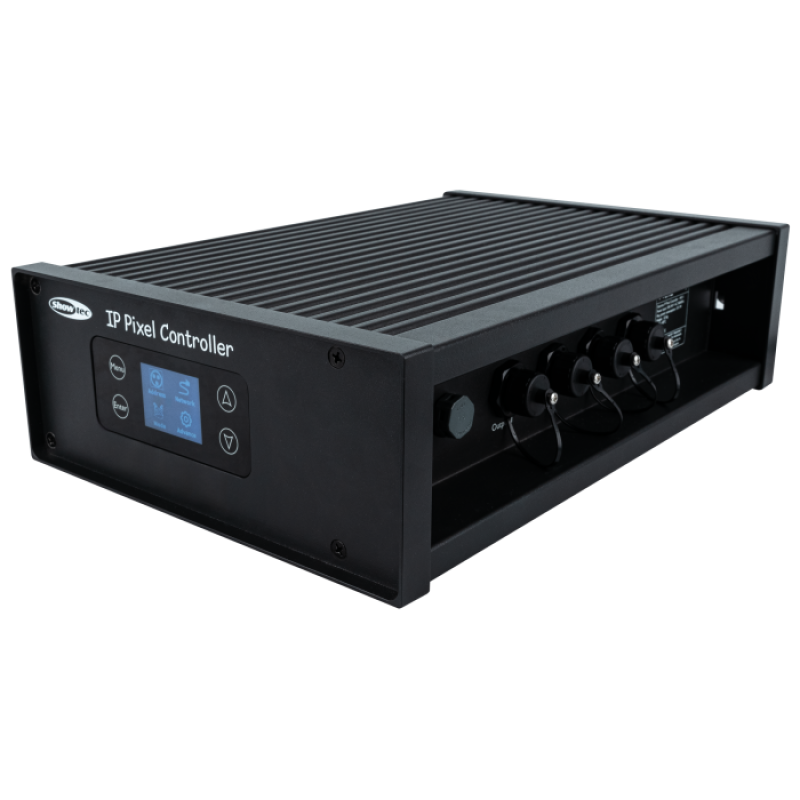

The Showtec IP Pixel Controller is an IP65-rated controller for the IP Pixelstrip 40 and IP Pixelstrip 80. Each of its four outputs can control up to 4 metres of any mixed setup of IP Pixelstrips, for a maximum total of 16 metres. It accepts DMX, Art-Net, sACN and Klingnet protocols.

When using Art-Net or sACN, the controller can address every single RGB LED in each 4 m string, requiring up to 3840 channels / 8 DMX universes. The integrated section control modes enable users to easily group pixels to reduce the required number of DMX channels. It also offers a 8- and 12-channel control modes for smaller stage setups.

The supported Kling-Net protocol allows easy control via the arKaos software. The controller also offers Stand-alone operation with Master/Slave, Manual modes and built-in programs.

Dedicated cables carry both power and data signals from the controller to the IP Pixelstrips. A Power Pro True cable is included, as well as a quicklock bracket for easy installation. Its IP65 rating protects against dust and moisture for harsh environments such as temporary outdoor use.

Specifications

Control and Programming

Control Mode                   Art-Net, Built-in Program, DMX, Kling-Net, Manual, Master Slave, RDM

DMX Channels                  8, 12, 120, 240, 360, 720, 960, 1440, 2880, 3840, 480, 1920

Protocols                  Art-Net, DMX, Kling-Net, RDM, sACN

Display                 OLED

Dynamic Effects

Dimmer                 0-100 %

Strobe                  0-20 Hz

Electrical Specifications and Connections

Power Supply                100-240 V AC 50/60 Hz

Output voltage                  48 V DC

Power Consumption                  500 W

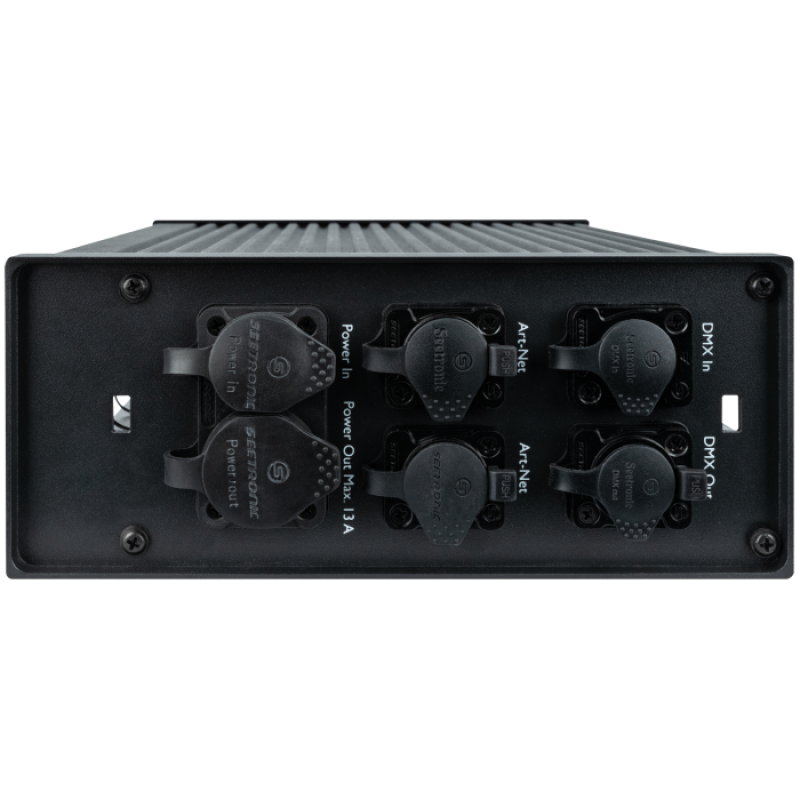

Power Connector In                 Power Pro True

Power Connector Out                  Power Pro True

Mechanical Specifications

Controller Height                   89 mm (3.504″)

Controller Width                   219 mm (8.622″)

Controller Length                   322 mm (12.677″)

Weight                  5 kg (11.023 lb)

IP Rating                 IP65

Housing                   Aluminium

Colour                 Black

Product Properties

Cooling              Passive

Rigging

Mounting Options               Bracket

Thermal Specifications

Maximum Ambient Temperature                 40 °C (104 °F)

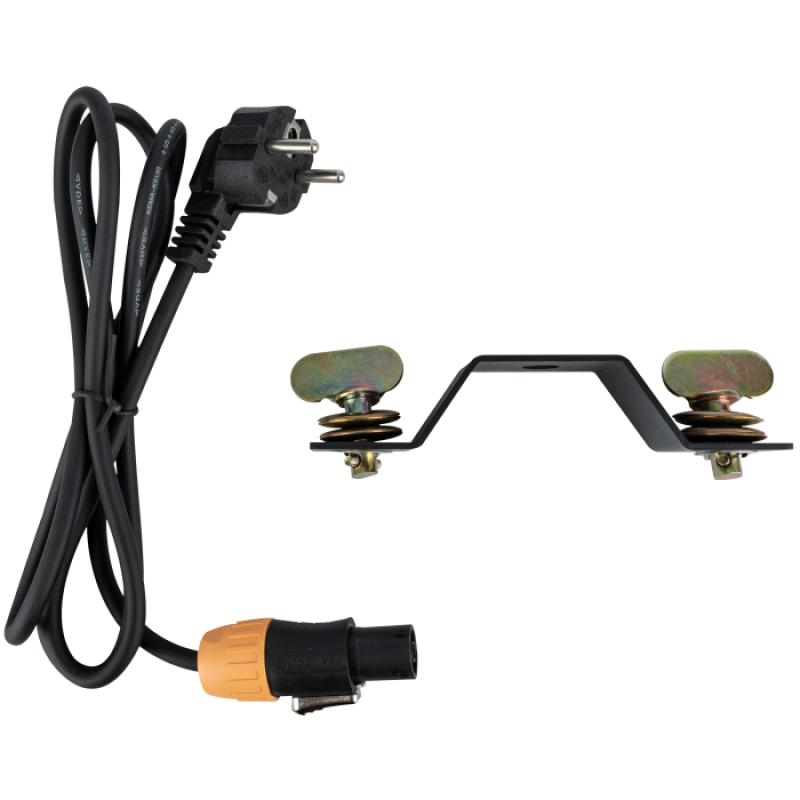

Included Items

Included Rigging                1x Quick-Lock Bracket

Included Cables                Power Pro True Cable

Product Compliance

Energy efficiency class                  T/B/D
