• Compact 7x 4 W RGBW LED Par

• Double bracket for easy floor positioning

• Narrow 21° fixed beam angle

• Dimmer and strobe function

• Manual, DMX and Master/Slave control

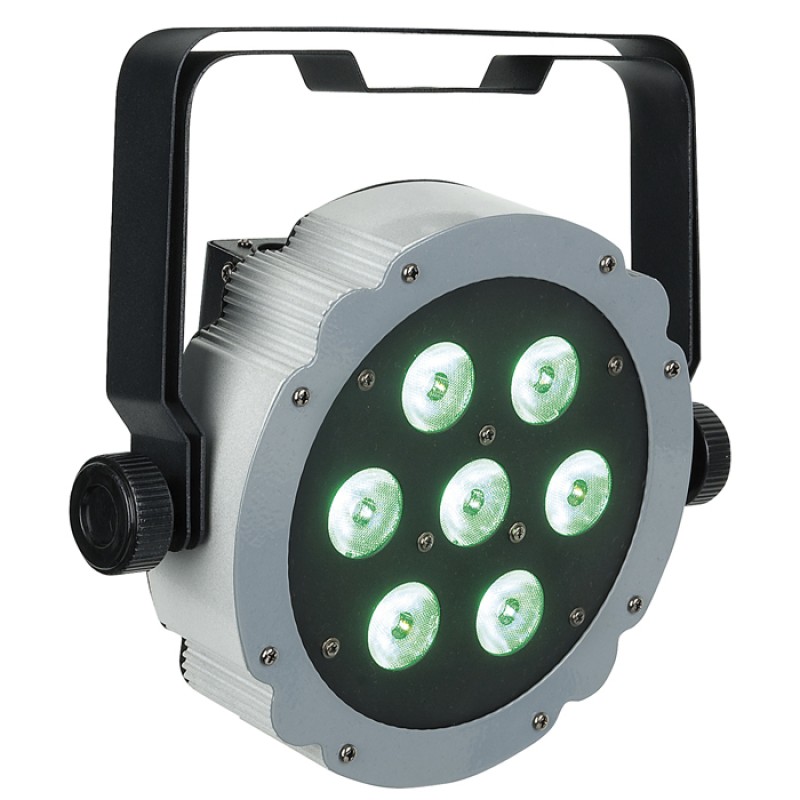

The Showtec Compact Par 7 Q4 is a compact 7x 4 watt RGBW LED Par with double bracket for easy floor positioning, suitable for indoor venues. It has a 21° fixed beam angle and features 0 - 100 % dimmer and 0 - 20 Hz strobe effects, perfectly suitable for short-throw colour mixing. The Compact Par 7 Q4 can be controlled manually, via DMX and Master/Slave in either Manual, Auto run and Sound-controlled mode with many available built-in programs. Its design fits in every setting with either black and grey housing.

Specifications

Source

Light Source Type                 LED

Light Source Quantity                  7

Light Source Power               4 W

LED Colour Type                       RGBW

Refresh Rate                    7800 Hz

Illuminance @ 2 m                   2201 lx

Luminous Flux (Total)              1100 lm

Optical

Beam Angle (Circular)                   15 °

Control and Programming

Control Mode                 Auto, DMX, Master Slave, Sound, Stand Alone

DMX Channels                  4, 6, 11

Protocols                  DMX

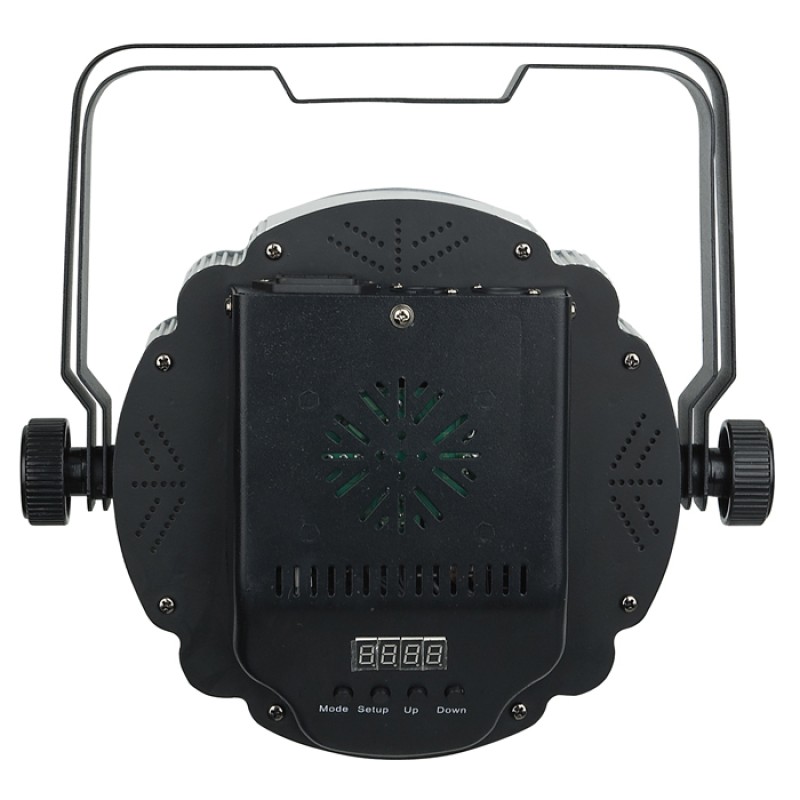

Display                  7-segment

Dynamic Effects

Dimmer               0-100 %

Strobe                   0-20 Hz

Electrical Specifications and Connections

Power Supply                  100-240 V AC 50/60 Hz

Power Consumption                   32 W

Power Connector In                   IEC

DMX Connector                      XLR 3P In/Out

DMX Connector In                     XLR 3P

DMX Connector Out                XLR 3P

Cable Length                       1.5 m

Mechanical Specifications

Length (mm)                 275 mm (10.827″)

Width (mm)                    95 mm (3.74″)

Height (mm)                 256 mm (10.079″)

Weight                  2.2 kg (4.85 lb)

IP Rating                  IP20 (indoor use only)

Housing              Aluminium

Colour           Grey

Product Properties

Cooling                  Convection

Rigging

Mounting Options              Clamp, Surface

Thermal Specifications

Maximum Ambient Temperature                   40 °C (104 °F)

Minimum Operating Temperature                  -10 °C (14 °F)

Included Items

Included Cables                IEC cable

Included Rigging                Bracket
