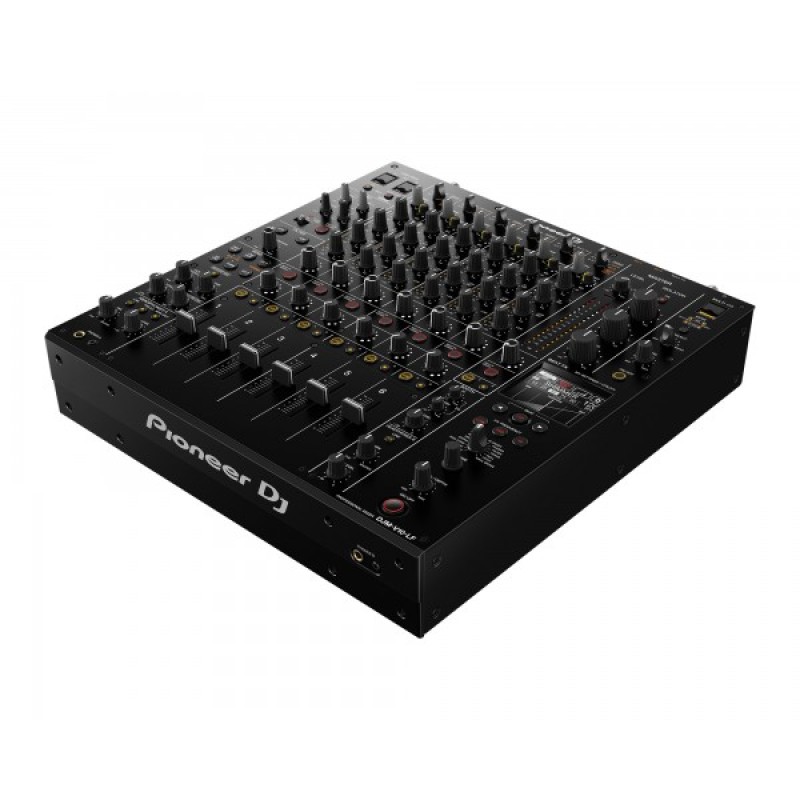

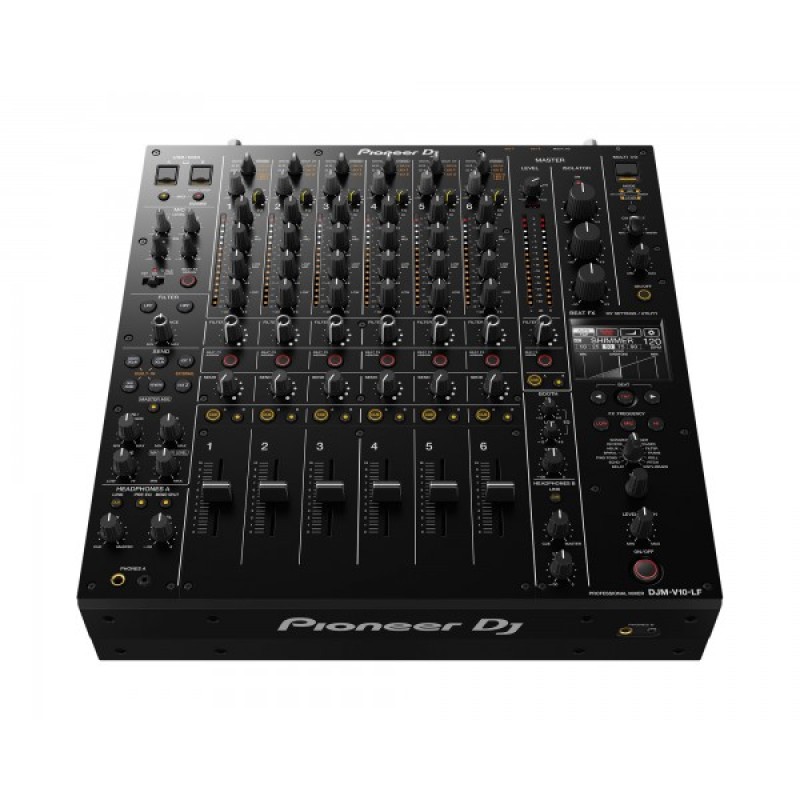

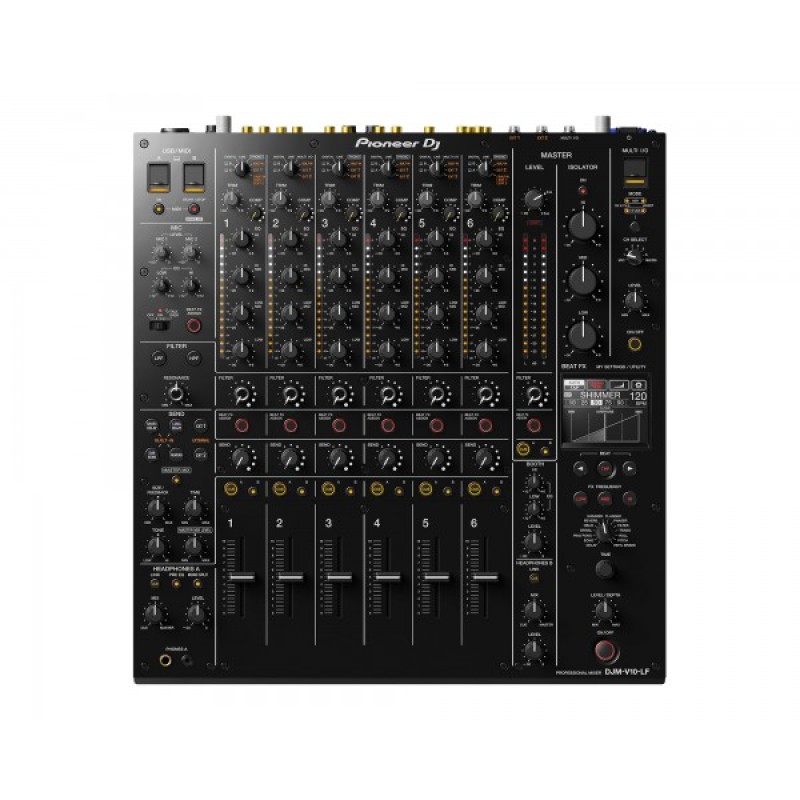

The DJM-V10-LF features new, longer channel faders with optimised curves and a new custom-designed curve preset to enable you to perform smooth and accurate mixes.

The 60 mm shaft slide faders enable you to control the volume of the audio source from each channel precisely. What’s more, a brand-new fader curve setting has been added to the unit and the faders have been appropriately weighted to enhance the potential offered by their elongated range.

All the other features and specifications of the DJM-V10-LF are the same as the DJM-V10, which has become popular with the most creative DJs since its release in early 2020. The 6-channel unit is loaded with unique features and produces warm audio with energy and presence.

If you like to perform smooth, detailed mixes, you can enjoy a high level of control with the DJM-V10-LF. The crossfader from the DJM-V10 has been removed and brand-new 60 mm shaft slide faders have replaced the 45 mm ones on the channels.

Product Specifications

Main Features

MIDI Control:  Full assignable MIDI controls

ProDJ Link:  Yes

Booth EQ:  Yes

P-LOCK Fader Caps:  Yes

Auto Standby:  Yes

DVS Control

• rekordbox
• Serato DJ Pro
• TRAKTOR PRO 3

Specifications

Sampling Rate:  96 kHz

Frequency Range:  20 - 40000 Hz

A/D Converter:  32 bit

D/A Converter:  32 bit

S/N Ratio Line:  105 dB

S/N Ratio Phono:  88 dB

S/N Ratio Mic:  79 dB

Distortion:  < 0.005 % (LINE)

Channels

EQ:  4 band
EQ Range:  [Hi/Low] -∞ ~ +6 dB / [Hi Mid/Low Mid] -26 dB ~ +6 dB dB
COMP:  Yes

Performance Control

Channels:  6

Filter

• HPF
• LPF

SEND

• Short Delay
• Long Delay
• Dub Echo
• Reverb
• 2 Externals (1/4-inch TS jack)

MULTI I/O

• 1/4-inch jack
• USB (Type A)

Beat FX

• Delay
• Echo
• Ping Pong
• Spiral
• Helix
• Reverb
• Shimmer
• Flanger
• Phaser
• Filter
• Trans
• Roll
• Pitch
• Vinyl Brake

FX Frequency:  Yes

X-PAD:  Yes

rekordbox Quantize:  Yes

Master Isolator:  Yes

Mic

Mic Connection

• XLR / 1/4-inch Jack Combo
• 1/4-inch TRS Jack

Talkover:  3 Position Switch

Talkover Attenuator:  Yes

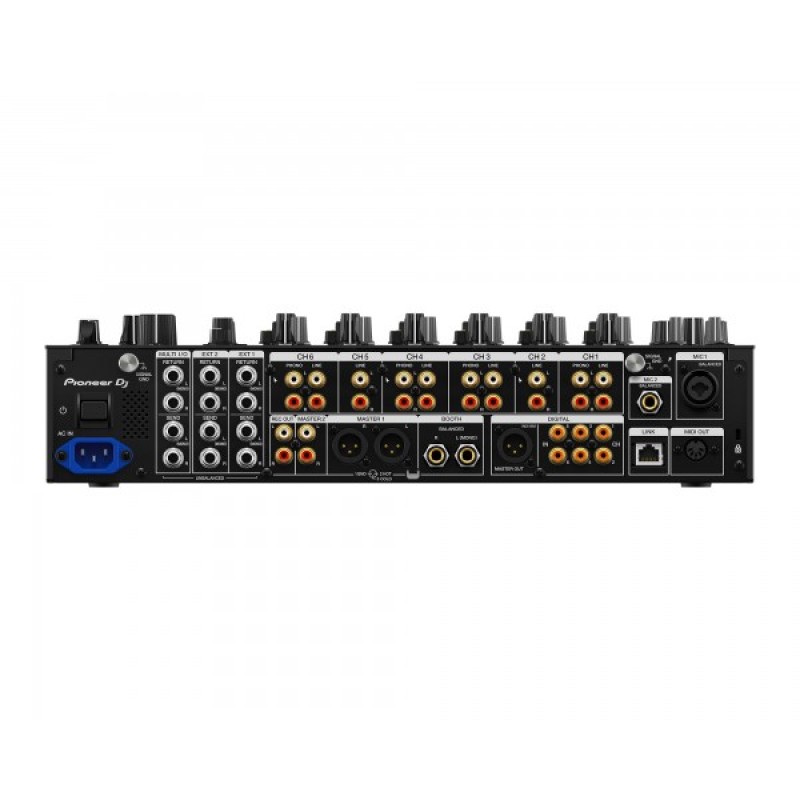

Terminals

Inputs

• 6 DIGITAL (Coaxial)
• 6 LINE (RCA)
• 4 PHONO (RCA)

Send/Return

• 3 SEND (1/4-inch TS jack)
• 3 RETURN (1/4-inch TS jack)

LAN:  1

USB

• 2 USB B ports
• 1 USB A port

Outputs

• 2 MASTER (XLR, RCA)
• 1 BOOTH (1/4 inch TRS Jack)
• 4 HEADPHONE MONITOR (1/4 inch Jack, mini-jack)
• 1 REC OUT (RCA)
• 1 DIGITAL (AES/EBU)
• 1 MIDI (DIN)

Physical

• Width:  437.6 mm
• Height:  107.9 mm
• Depth:  467 mm
• Weight:  11.9 kg
