- 600 mW Full Colour Fat Beam Lasers
- Six individually controllable beams
- DMX, Master/slave, Colour, and Auto modes
- 32 internal patterns
- Intensity, zoom, and 3-axis rotation
The Galactic RGB-6-751 is a powerful laser bar with six individually controllable full-colour fat beam lasers and a total laser power of 600 mW for indoor venues. The six fat beam lasers create a noticeably thicker laser beam than usual. By using analogue dimming of each of the individual red, green, and blue laser units, the full spectrum of colours can be created with each individual beam. The Galactic RGB-6-751 offers auto, colour, master/slave, and DMX-512 control modes. It has 32 internal patterns available, which can be selected through DMX. Intensity, zoom, and 3-axis rotation effects offer many additional effect possibilities.
Please note that an optionally available remote interlock may be mandatory for legal operation. A remote interlock test connector is included for service purposes.
Specifications
Source
Laser Yes
Laser Source Diode
Laser Modulation Analog
Laser Class 3B
Laser Colour Red, Green, Blue
Laser Power (Total) 600 mW
Laser Power (Red) 180 mW
Laser Wavelength (Red) 638 nm
Laser Power (Green) 40 mW
Laser Wavelength (Green) 520 nm
Laser Power (Blue) 380 mW
Laser Wavelength (Blue) 450 nm
Beam Diameter at Aperture 5 mm (0.197″)
Beam Divergence 2 mrad
Control and Programming
Control Mode Built-in Program, DMX, Master Slave, Sound
DMX Channels 7, 9, 12, 36, 48, 54, 66

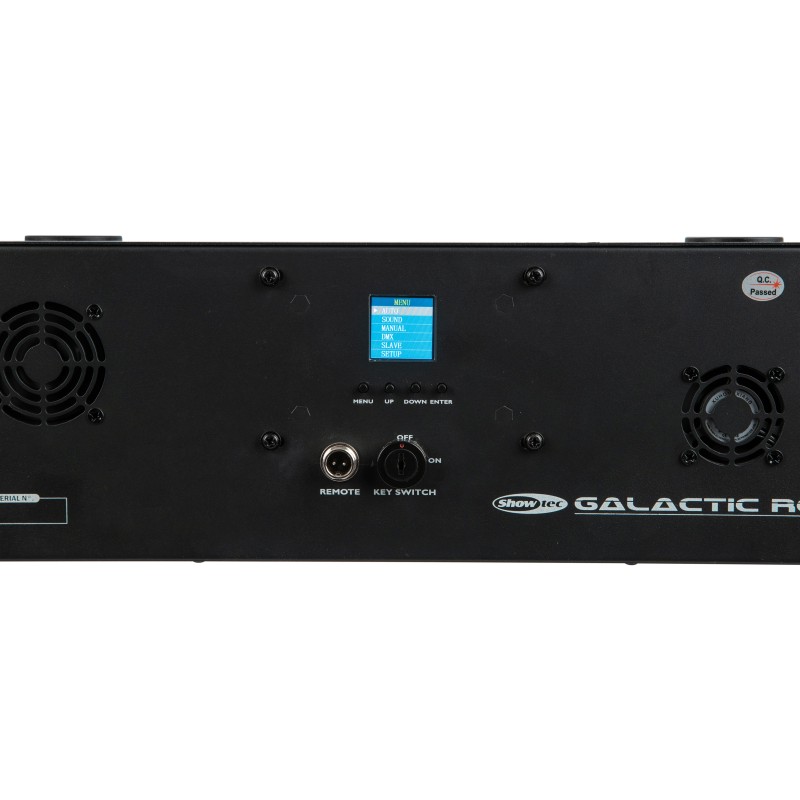

Display LCD

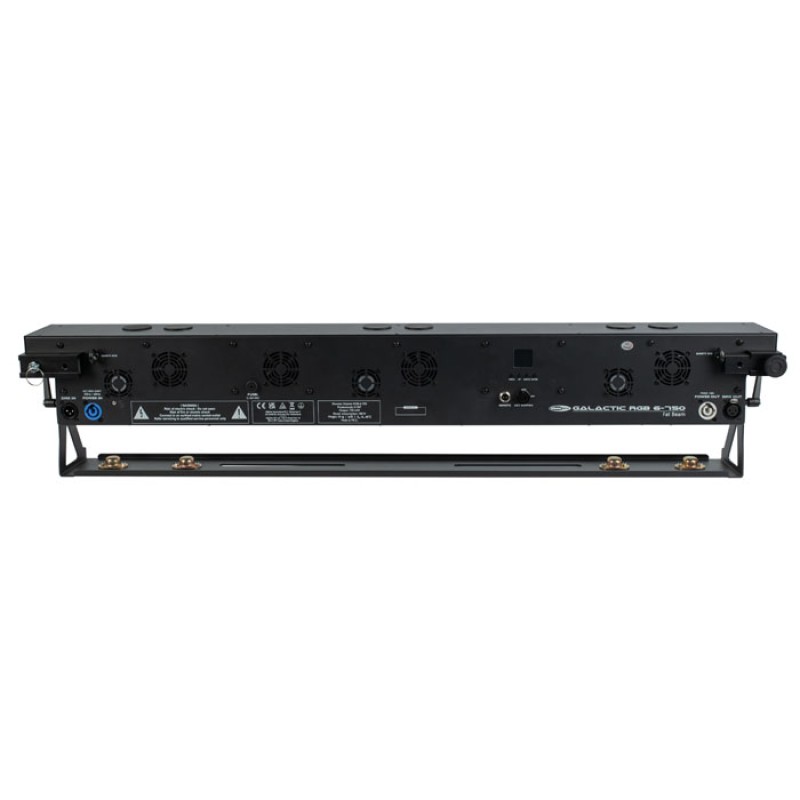

Electrical Specifications and Connections
Power Supply 100-240 V AC 50/60 Hz
Power Consumption 108 W
Power Connector In Power Pro Blue
Power Connector Out Power Pro Grey
DMX Connector XLR 3P In/Out
DMX Connector In XLR 3P
DMX Connector Out XLR 3P
Mechanical Specifications
Height (mm) 1000 mm (39.37″)
Width (mm) 201 mm (7.913″)
Depth (mm) 123 mm (4.843″)
Weight 11.5 kg (25.353 lb)
IP Rating IP20 (indoor use only)
Housing Aluminium
Colour Black
Product Properties
Cooling Axial fan
Safety Features Interlock, Key Switch, Safety Eye
Thermal Specifications
Maximum Ambient Temperature -40 °C (-40 °F)
Rigging
Mounting Options Bracket, Quick-Lock
Included Items
Included Cables Power Pro Cable
Product Compliance
Laser Classification Standard EN-IEC 60825-1:2014+A11:2021
NOHD 136 m (446.194 ft)
MPE (for Exposure Duration of 0,25 s) 25.4 W·m⁻² (0.0037 W·ft⁻²)
Showtec Galactic RGB-6-751
- Brand: Showtec
- Product Code: 51348
- Availability: 5-7 Days
-
£939.00
- Ex Tax: £782.50
