• High Pressure Pump System

• RGB LEDs create coloured smoke effect

• Powerful 1500 W heater

• 150 ml/min

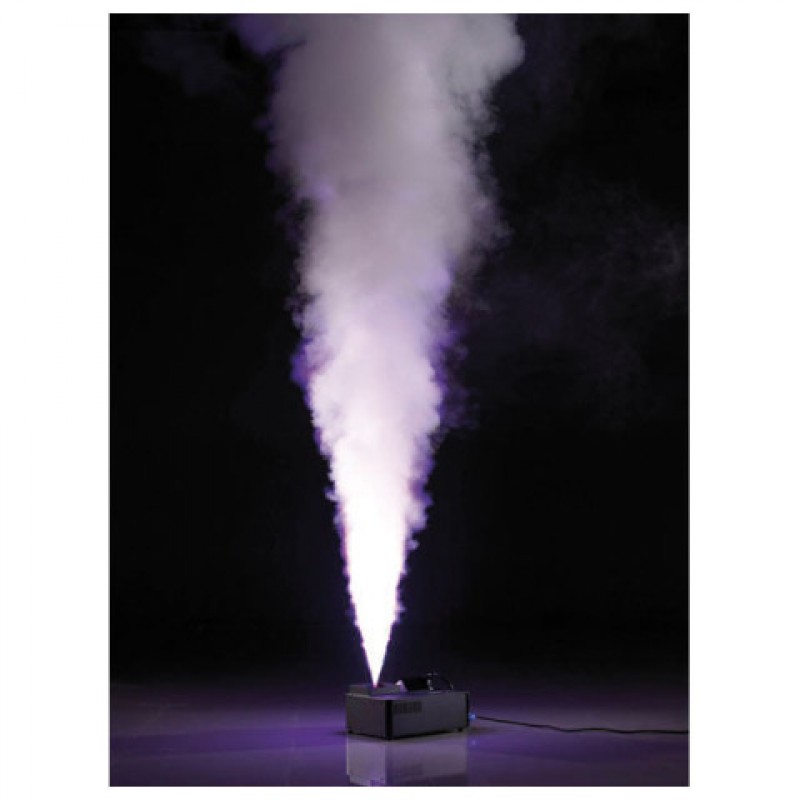

Want to add colours to your fog jet effects? Not a problem! Let the Antari Z-1520 RGB fulfill your dreams. With additional 22 high power LEDs to shine the fog output produced by Antari Z-1520, the evolutional successor of well-known Z-1020.

One machine can satisfy desires for both spectacular fog and lighting effects at the same time.

Specifications

Electrical Specifications and Connections

Power Supply      240 V AC 50/60 Hz

Power Consumption     1550 W

Power Connector In     powerCON Blue

DMX Connector     XLR 3P In/Out, XLR 5P In/Out

DMX Connector In      XLR 3P, XLR 5P

DMX Connector Out     XLR 3P, XLR 5P

Heater     1500 W

Warm-up Time     5 min

Mechanical Specifications

Output Capacity    85 m³/min (3001.7 ft³/min)

Output Direction    Up

Housing     Aluminium, Metal

Colour     Black, Gray

Fluid Consumption     150 ml/min (5.072 oz/min)

Fluid Tank Capacity    2.4 L

Length (mm)     418 mm (16.457″)

Height (mm)     210 mm (8.268″)

Width (mm)     295 mm (11.614″)

Weight    10.4 kg (22.928 lb)

IP Rating      IP20 (indoor use only)

Control and Programming

Control Mode     DMX, Manual, Remote, Stand Alone, Timer

DMX Channels      8

Display       LCD

Source

Light Source Power    3 W

LED Colour Type     R, G, B

Thermal Specifications

Maximum Ambient Temperature    40 °C (104 °F)

Included Items

Included Cables    powerCON cable

Included Remotes     W-2
