• RGBWA-UV Q6 LEDs

• Adjustable Fan speed

• Cylinder shape included

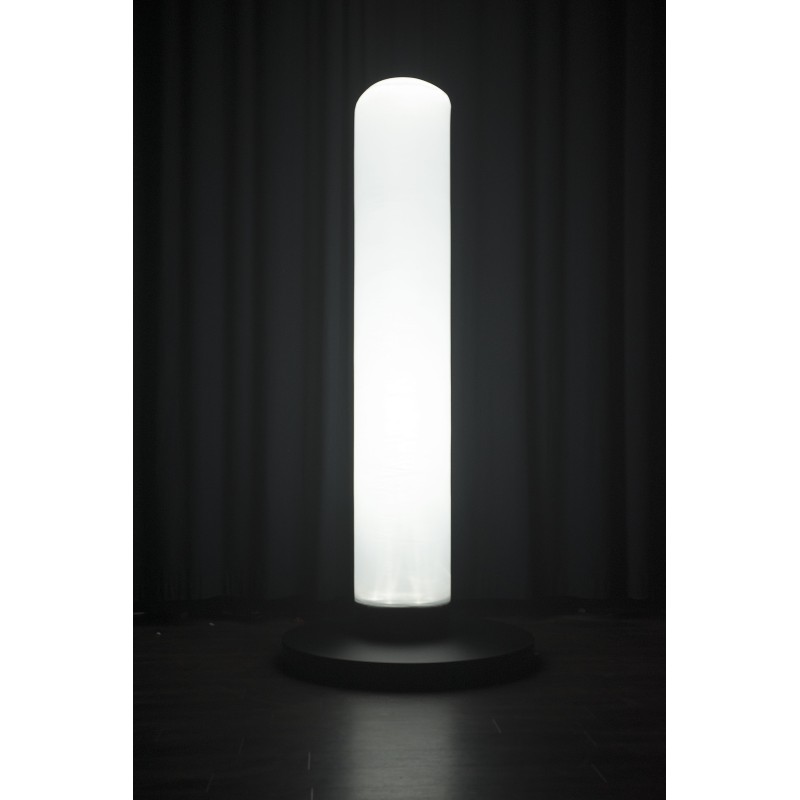

The Showtec Aircone Q6 is the ultimate decorative lighting effect and is widely used at various events such as concerts, festivals, weddings, corporate events and theme parks.

The Aircone Q6 is the successor to the already famous Showtec Aircones and now contains several upgrades for even more flexibility and more beautiful effects.

Its advanced colourmix system, which includes six 8 W RGBWA-UV LEDs, offers auto-run programs as well as a complete DMX control. The fan is also controlled via DMX. This allows operating the Aircone Q6 at a reduced fan speed to minimize fan noise, or at an increased fan speed to stabilize the cone when placed outside (wind!) or when positioned in different angles.

The Aircone Q6 includes a cylinder shaped cone but also can hold a pyramid cone (order code 40316).

Specifications

Source

Light Source Type     LED

Light Source Quantity    6

Light Source Power    8 W

LED Colour Type    RGBWAUV

Control and Programming

Control Mode    Auto, Built-in Program, DMX, Manual, Master Slave, Sound, Stand Alone, Static Dimmer

DMX Channels   3, 6, 12

Protocols    DMX

Wireless   Wireless DMX

Display    7-segment, LED

Dynamic Effects

Dimmer    0-100 %

Strobe    0-20 Hz

Electrical Specifications and Connections

Power Supply    100-240 V AC 50/60 Hz

Power Consumption    150 W

Power Connector In     Power Pro Blue

Power Connector Out    Power Pro Grey

DMX Connector    XLR 3P In/Out

DMX Connector In    XLR 3P

DMX Connector Out    XLR 3P

Mechanical Specifications

Height (mm)    2700 mm (106.299″)

Width (mm)    470 mm (18.504″)

Depth (mm)    470 mm (18.504″)

Weight    11 kg (24.251 lb)

IP Rating    IP20 (indoor use only)

Housing    Aluminium

Colour   Black

Product Properties

Cooling    Axial fan

Rigging

Mounting Options   Quick-Lock, Surface

Thermal Specifications

Maximum Ambient Temperature    40 °C (104 °F)

Minimum Operating Temperature    -10 °C (14 °F)

Included Items

Included Cables    Power Pro Cable

Included Rigging   Quick-Lock Bracket
