• 1000 W RMS, 2000 W peak, max SPL of 126 dB at 1 m

• 48 - 20,000 Hz frequency range

• BT 5.3 with True Wireless Stereo (TWS)

• Dedicated mic and line + Hi-Z inputs

• Internal DSP with 4 modes, adjustable crossover, EQ, and limiting

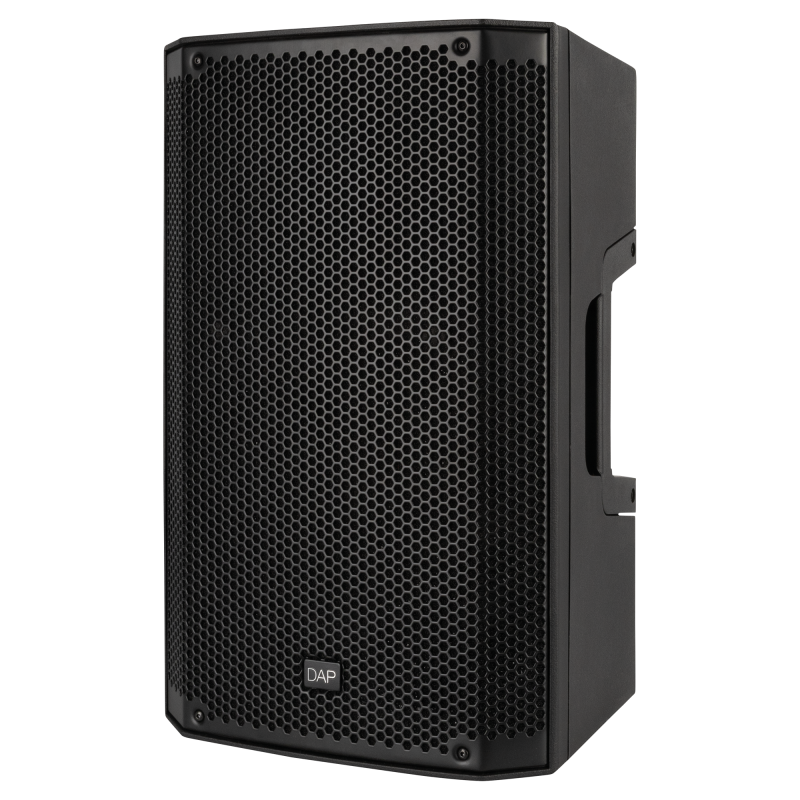

The NGA-10A is a compact active loudspeaker designed for versatile audio applications. It features a 10" woofer paired with a 1.4" compression driver, delivering a frequency response of 48 - 20,000 Hz (-10 dB). The system is powered by a 1000W RMS Class-D amplifier and includes a built-in DSP engine with four selectable user modes.

The rear panel offers two combo XLR/jack inputs. One of these accepts both mic and line-level signals, while the other supports Hi-Z sources such as electric guitars. A balanced XLR output is available for linking to additional speakers; this output combines the analogue inputs and the BT audio signal.

Further audio shaping is possible via a flexible crossover section with multiple crossover frequency options, as well as a 3-band equaliser with adjustable frequency, Q-factor and EQ type. Delay settings and user-defined EQ presets can be stored directly on the device.

BT 5.3 connectivity enables wireless audio streaming and supports True Wireless Stereo (TWS) pairing. In addition, the NGA-10A can be remotely controlled via a dedicated app (iOS or Android), allowing access to output gain, 3-band EQ, speaker name and stored presets.

Despite its feature set, the unit remains lightweight and portable, making it suitable for both fixed installations and mobile applications.

Specifications

Outputs

Low Driver Power          650 W

High Driver Power          350 W

Power Amplifier RMS Output        1000 W

Power Amplifier Peak Output          2000 W

Main Outputs         1

Main Output Connector      3-pin XLR

Inputs

Mono Inputs         2

Mono Input Connector           3-pin XLR, TS unbalanced 6.3 mm

Audio Specifications

THD Level %      < 0.15 %

Signal-to-noise Ratio          > 85 dB

Amp Technology             Class D

Speaker System         2-way

Speaker Sensitivity (1 W/1 m)         95 dB

Maximum SPL at 1 m        126 dB

Frequency Response (-3 dB) Minimum         54 Hz

Frequency Response (-3 dB) Maximum           20000 Hz

Frequency Response (-10 dB) Minimum          48 Hz

Frequency Response (-10 dB) Maximum            20000 Hz

Crossover Frequency (High)          3000 Hz

Woofer Diameter        10 "

Woofer Voice Coil Diameter           2.5 "

Woofer Magnet Type          Ferrite

Compression Driver Diameter         1 "

Compression Driver Voice Coil        1.4 "

Compression Driver Magnet Type       Ferrite

Dispersion Angle (Horizontal)         90 °

Dispersion Angle (Vertical)         60 °

Sound Editing

Output Delay (Max.)             20.8 ms

Wireless Specifications

BT            Yes

Control and Programming

Control Mode          Bluetooth

Display          TFT

Display Size           1.9 "

Electrical Specifications and Connections

Power Supply            220-240 V AC 50/60 Hz

Power Consumption       800 W

Fuse            5 A

Power Connector In           IEC

Mechanical Specifications

Height (mm)          528 mm (20.787″)

Width (mm)              334 mm (13.15″)

Depth (mm)            313 mm (12.323″)

Material           Polypropylene

Colour              Black

Weight            12.52 kg (27.602 lb)

IP Rating          IP20 (indoor use only)

Product Properties

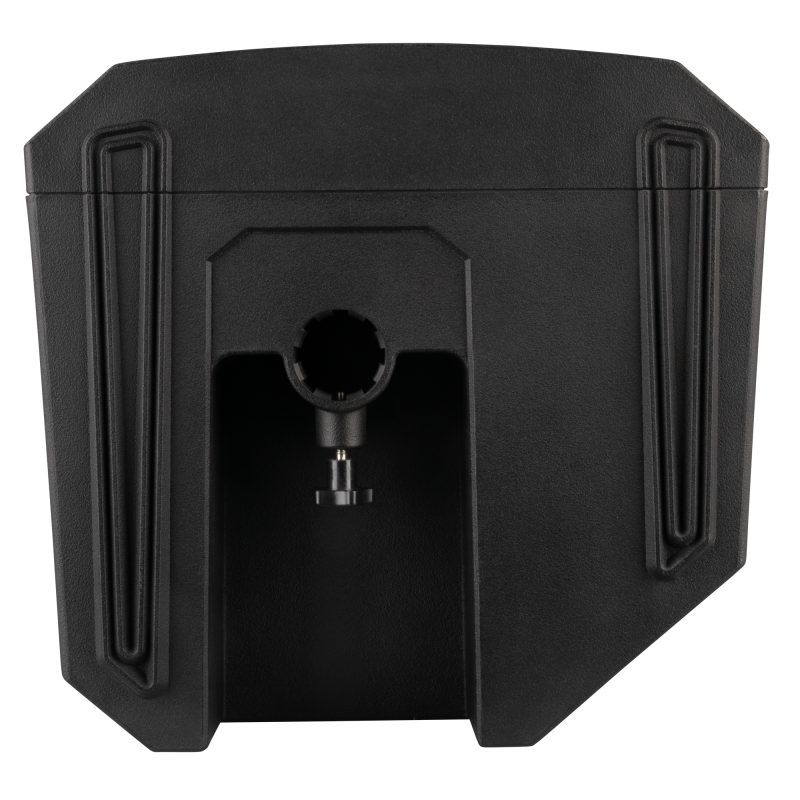

Pole Mount             35 mm

Electronic Protection          Clip limiter, Overload, Thermal

LED Indicators          BT Pairing

Rotatable Horn           No

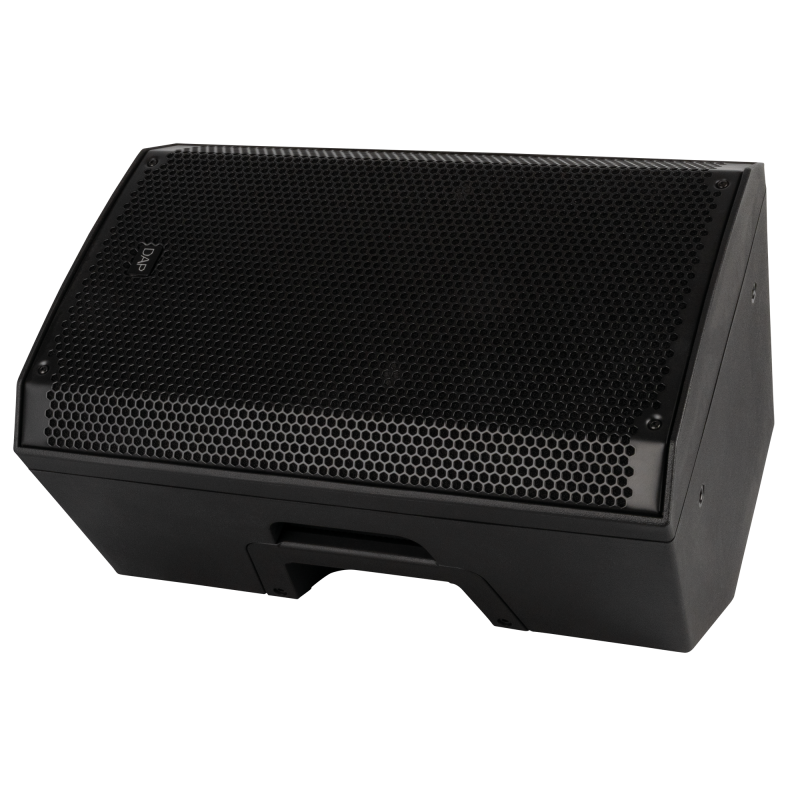

Useable as Monitor/Wedge         Yes

Speaker Grille Material           Steel

Speaker Handle Positions           Left side, Right side, Top

Rigging

Rigging Options         Flying

Rigging Eye Thread             M10

Thermal Specifications

Maximum Ambient Temperature          50 °C (122 °F)

Minimum Ambient Temperature           -20 °C (-4 °F)

Included Items

Included Cables       IEC cable
